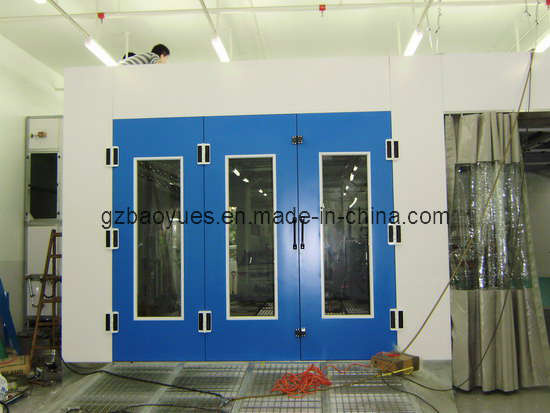

Spray Booth (With Water-Borne Paint System)
| Price: |
US $ 9999/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
BY-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lights: |
LED |
| Control System: |
Schneider |
| Certification: |
CSA |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
Product Description
The super spray booth for car spraying and baking, with with light system, intake and exhaust system, heating system, control system, purification system and water-borne paint system...Can remake the design according to your request.
| Inside dimension | 8000× 4500× 3000 mm(L× W× H) |
| Outside dimension | 8100× 6350× 4000 mm(L× W× H) |
| Basement | Galvanized steel assemble, 350mm high, with adjustable bolts, quadrate steel support, 5 rows of grilles made by flat bar and twisted steel, then galvanized. 4 ramps, external setting, 900× 2500mm/pc. |
| Front door | Folding door, 4 folds, 3500× 2900 mm(W× H), made by bending steel without cover frame, colour: blue. |
| Emergency door | 1 unit, 800× 2000mm (W× H), colour: white. |
| Wall board | Thickness: 50mm, width: 1000mm, tongue and groove structure, 0.476mm colour steel with 50mm thick polystyrene (PU) insulation inside, colour: white. |
| Light system | Ceiling Lights: 10Units× 4Pcs=40Pcs× 36W, with electronic ballasts, lighting boxes are powered coated.
Side Lights: 14Units× 4Pcs=56Pcs× 36W, vertically set, with electronic ballasts, vertically set, lighting boxes are powered coated. |
| Generator cabinet | Intake air from back upper direction, exhaust air from back upper direction galvanized steel molding frame; white coated steel outside, galvanized steel inside, filled with heat preservation material in the middle. |
| Intake and exhaust system | Intake: 2× 4KW double-intake centrifugalfans for intake air, motor outside, belt- drive, air capacity for each fan: 30000m 3 /h. Exhaust: 1× 7.5KW double-intake centrifugalfan for exhaust air, motor outside, belt drive, air capacity: 22500m 3 /h. |
| Heating system | RIELLO RL28diesel burner, stainless steel heat exchanger, electric damper actuates from spraying to baking cycle. Max. heating productivity: 28000kcal/h. |
| Purification system | Pre-filter, ceiling filter, fibreglass filter, activated carbon filter |
| Roof | Galvanized steel plates |
| Control box | Power supply switch, emergency stop, fire safety valve, PLC combined with HMI control, inverters for motors. |
| Note | With waterborne paint system |
Baoyue started since 2011, the company specilize in the design, manufacture and sale for auto spray/backing booth, industry painting equipment, high temperature drying plant, The products with international design standard, latest manufacture technology. The engineer, factory director, manager, sales director etc all engaged in this industry more than 15 year.
As a professional manufacturer, we have rich experience, supply all kinds of good quality spray booth, prep station and car lift etc, with the certificate of CE, ISO, SGS, CCS etc. Factory located Guangzhou, Huadu district, which is modern car industry production park, have convenient transport facilities. The area for working and manufacturing more than 19, 000, staff more than 90, including the techinican team more than 9, after service team more than 10. The workshop including many cutting machine, pumting machine, bending machine, welding machine etc, with water curtain paint booth, powder coating booth, high temperature oven.
We have attended Automechanika Shanghai 2012, 2013, 2014, 2015, 2016, and Beijing exhibition 2012, 2013, 2014, 2015, with large confidence to show our spray booth.
We wish to establish the good cooperation relationship with you, not for once or twice, but for the long term cooperation, looking forward to developing together with you in the near future. The paint booth and widely used for car, bus, truck, machine, furniture and other industry, already exported to EU, Middle East, Asia, Africa, Australia etc, and serviced BMW, Honda, Audi, Nissan, Benz, Honda, Toyota, etc, as well as the air plane company, Army, and bus manufacturer, furniture manufacturer.
