| Prod Model: |

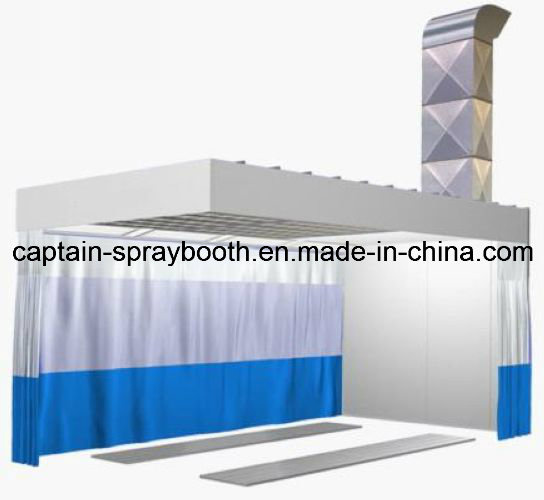

Captain-1-III paint Prep stations for the car |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inside Dimension: |
6300X3450X2800mm(Lxwxh) |
| Outside Dimension: |
7550X3550X3200mm(Lxwxh) |
| Basement & Floor: |
2 Rows Pit Paved by Grille |
| Ceiling System: |
6400X3550X520mm (L×w×h) |
| Generator Setting: |
2 Rows of Pits for Exhaust Air |
| Intake & Exhaust Air System: |
1set 7.5kw Fan for Intake and Exhaust Air |
| Sealed Type: |
Backside EPS, The Other 3 Are Curtain |
| Lighting System: |
8units X4=32PCS36W |
| Voltage: |
as Request |
| Total Power: |
8.7kw |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Substrate: |
Sandwich Panel |
| Brand: |
Captain |
Product Description
A. Prep stations make it possible for users to prep and perform minor paint work in one area without moving the vehicle.
B. Prep stations speed up the drying process and improve the overall quality of your finished product.
C. Two airflow choice, above ground exhaust box and pit style downdraft, allow easy integration into new or existing body shop layouts.
D. Optional heat units are available for high production needs.
Standard Prep Stations optional
L Semi-Downdraft or Pit-Style Downdraft or Full Downdraft
L With or without overhead plenum
L With or without heater & intake system
L Free-standing with structural steel support or suspended from the shop ceiling
Optional
L Cupboards in the rear of Prep Stations to store painting materials and equipments
L Roll-Up Curtains(motorized controls/manual operation)
Other features
L Overspray and dust control by 95% filter efficiency
L PHILIPS lamps, BELIMO damper and RIELLO burner
L Main electric components are CE listed
L All hardware, fasteners, sealants
L 24 months warranty
L Delivery time of standard prep station can reach 10 business days
L Bubble film packaging for sea transportation in bulk, special steel tray packages are accepted
| Inside dimension | 6300×3450×2800mm(L×W×H) |
| Outside dimension | 7550×3550×3200mm(L×W×H) |
| Basement & Floor | Without basement,wirh 2 rows pit paved by grille , each pit dimension:4610×710mm (L×W) |
| Ceiling System | Dimension:6400×3550×520mm (L×W×H),with lights on 2 sides of roof ,part of the roof with filter,
other small part with air-proof seal plate. |
| Generator Setting | 2 rows of pits for exhaust air,with quadrate steel frame,blue coated steel, |
| Intake & Exhaust air system | Generator dimension: 1300×1100×1100mm (L×W×H); with 1set 7.5KW fan for intake and exhaust air,belt-drive motor positin: outside;Air capacity:21000M3/H, Electric damper control intake & exhaust air capacity. |
| Sealed Type | Back side set 50mm EPS heat preservation panel,other 3 sides with PVC soft curtain, curtain color: upper part: white,
middle part:transparent,lower part: blue |
| Ceiling Installation | Steel rope hanging or steel pole supporting the roof(Option). |
| Filtering System | Pre-filter pocket,ceiling filter,floor filter(fibreglass). |
| Lighting System | 8units x4=32pcs36W |
| Control System | Control the operation of fan, lighting and electric damper. |
| Voltage frequency | As request |
| Total Power | 8.7KW |
