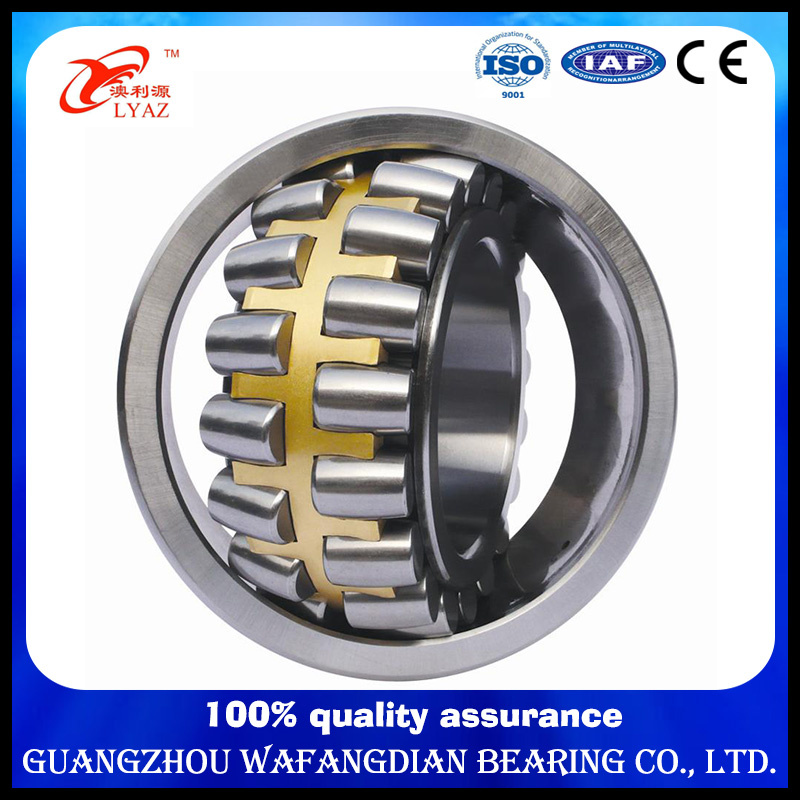

Spherical Roller Bearing 21306e 21307 21308 21309 Ca Cc/W33 Cck Cck/W33 E
| Price: |
US $ 0.01/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Quick Details
| Structure: | Spherical | Type: | Roller | Brand Name: | OEM acceptable |
| Bore Size: | 0 - 120 mm | Outside Diameter: | 0 - 260 mm | Model Number: | 21306 |
| Precision Rating: | P0 P6 P5, ABEC-1,ABEC-3 | Seals Type: | No SEAL TYPE | Number of Row: | Double Row |
| Place of Origin: | Shandong, China (Mainland) | Material: | Chrome Steel | Certificate: | ISO9001:2008 |
| Vibration Value: | Z1 Z2 Z3 | Vibration Balue: | V1 V2 V3 | Certification: | ISO9001:2008 |
| Cage type:: | Brass+steel | Price: | FOB,CIF,CNF Price | Hardness: | 58-62 HRC |
Packaging & Delivery
| Packaging Details: | 1)plastic tube+Kraft Paper +carton pallet
2)1piece//pp bag+color carton box+master carton +pallet
3)As customers' requirements |
| Delivery Detail: | 5-30 days after placing the order or according to qty |
Series models specification:
| Bearing NO. | Dimension(mm) | W Oil Hole/Groove | Weight(kg) |
| d | D | B | r (min) | do | A | N |
| 21304 | 20 | 52 | 15 | 1.1 | 3 | 6 | 4 | 0.18 |
| 22205 | 25 | 52 | 18 | 1.0 | 3 | 5 | 4 | 0.19 |
| 21305 | 25 | 62 | 17 | 1.1 | 6 | 6 | 4 | 0.29 |
| 22206 | 30 | 62 | 20 | 1.0 | 3 | 5 | 4 | 0.30 |
| 21306 | 30 | 72 | 19 | 1.1 | 3 | 5 | 4 | 0.43 |
| 22207 | 35 | 72 | 23 | 1.1 | 3 | 6 | 4 | 0.46 |
| 21307 | 35 | 80 | 21 | 1.5 | 3 | 5 | 4 | 0.57 |
| 22307 | 35 | 80 | 31 | 1.5 | 3 | 6 | 4 | 0.78 |
| 22208 | 40 | 80 | 23 | 1.1 | 3 | 6 | 4 | 0.56 |
| 21308 | 40 | 90 | 23 | 1.5 | 3 | 5 | 4 | 0.78 |
| 22308 | 40 | 90 | 33 | 1.5 | 4 | 7 | 4 | 1.07 |
| 22209 | 45 | 85 | 23 | 1.1 | 3 | 6 | 4 | 0.61 |
| 21309 | 45 | 100 | 25 | 1.5 | 3 | 5 | 4 | 1.08 |
| 22309 | 45 | 100 | 36 | 1.5 | 4 | 8 | 4 | 1.41 |
| 22210 | 50 | 90 | 23 | 1.1 | 3 | 6 | 4 | 0.65 |
| 21310 | 50 | 110 | 27 | 2.0 | 3 | 5 | 4 | 1.36 |
| 22310 | 50 | 110 | 40 | 2.0 | 4 | 8 | 4 | 1.92 |
| 22211 | 55 | 100 | 25 | 1.5 | 3 | 6 | 4 | 0.88 |
| 21311 | 55 | 120 | 29 | 2.0 | 3 | 5 | 4 | 1.70 |
| 22311 | 55 | 120 | 43 | 2.0 | 4 | 8 | 4 | 2.40 |
| 22212 | 60 | 110 | 28 | 1.5 | 3 | 6 | 4 | 1.20 |
| 21312 | 60 | 130 | 31 | 2.1 | 3 | 5 | 4 | 2.10 |
| 22312 | 60 | 130 | 46 | 2.1 | 4 | 8 | 4 | 3.05 |
| 22231 | 65 | 120 | 31 | 1.5 | 3 | 6 | 4 | 1.56 |
| 21313 | 65 | 140 | 33 | 2.1 | 3 | 6 | 4 | 2.60 |
| 22313 | 65 | 140 | 48 | 2.1 | 4 | 8 | 4 | 3.67 |
| 22214 | 70 | 125 | 31 | 1.5 | 3 | 6 | 4 | 1.65 |
| 31314 | 70 | 150 | 35 | 2.1 | 3 | 6 | 4 | 3.10 |
| 22314 | 70 | 150 | 51 | 2.1 | 5 | 10 | 4 | 4.45 |
| 22215 | 75 | 130 | 31 | 1.5 | 3 | 6 | 4 | 1.74 |
| 21315 | 75 | 160 | 37 | 2.1 | 3 | 6 | 4 | 3.80 |
| 22315 | 75 | 160 | 55 | 2.1 | 5 | 10 | 4 | 5.44 |
| 22216 | 80 | 140 | 33 | 2.0 | 3 | 6 | 4 | 2.19 |
| 23216 | 80 | 140 | 44.4 | 2.0 | 4 | 8 | 4 | 2.95 |
| 21316 | 80 | 170 | 39 | 2.1 | 4 | 8 | 4 | 4.50 |
| 22316 | 80 | 170 | 58 | 2.1 | 5 | 10 | 4 | 6.42 |
| 22217 | 85 | 150 | 36 | 2.0 | 4 | 7 | 4 | 2.75 |
| 23217 | 85 | 150 | 49.2 | 2.0 | 4 | 8 | 4 | 3.78 |
Wafang Dian Bearing Advantage
1. Material Advantage
All the material for Wafang Dian bearing are from the best suppliers in China.
2. Processing Advantage
we can guarantee the time spent and quality of every processing. We can do three times tempering to stabilize the dimensions of the bearings, which is quite different from other bearings manufacturers.
3. Quality control advantage
All the bearing parts are 100% strictly inspected before and during production including Metallurgical testing, crack detection, roundness, hardness, roughness and g++eometric dimensions.
4. All of bearings meet the ISO international standard.
5. Appearance Technology Advantage
we can provide light chamfer, black chamfer, black chamfer of the rollers. The bearings are produced all according to customer's requirements.
6. Service Advantage
Your satisfaction is our biggest goal. From quotation to the final packing and transport, we provide the quickest and most satisfactory services to every customer.
We participate Canton Fair,Shanghai Auto Mechanika Fair,Professional Auto Parts Fair annually.
Welcome Inquiry and order !
Thank you!
| Prod Model: |
21306 |
| Sample: |
Available |
| Service: |
OEM |
| Customer Brand: |
Acceptable |
| Logo: |
Customize |
| MOQ: |
1000sets |
| Fob Port: |
Qingdao,China |
| Stock: |
Yes |
| Delivery Date: |
7 Days |
| Customize Order: |
Acceptable |
| Size: |
Standard Size |
| Type: |
Wheel Hub Bearing |
| Material: |
Chrome Steel |
| Tolerance: |
P0 |
| Certification: |
TUV |
| Clearance: |
C0 |
| ABS: |
Without ABS |
| Brand: |
Lyaz/OEM |
| Application: |
All |
Guangzhou Wafangdian Bearing Co., Ltd. is a professional bearing company, belongs to Liaoning Wafang Dian Aoli Yuan Bearing Manufacturing Co. Ltd, , locates in Wafangdian north Gongji street, covers an area of more than 50000 square meters, over 300 staffs work in the factory. The annual production is more than 10 million sets of various bearings.
We have more than 30 years bearing manufacturing experience, execute strict and responsible quality control. Our products are: Deep groove ball bearing, tapered roller bearing, cylindrical roller bearing, spherical roller bearing, thrust ball bearing, needle bearing, self-aligning ball bearing, angular contact ball bearing, pillow block bearing, wheel hub bearing, clutch bearing, composite bearing and all kinds of non-standard bearings. Our bearings are low noise, long working life, high precision, high speed, heavy duty, good temperature resistance, widely used in automobiles, machine tools, mining, oil field, paper making, cement plant, power plant, steel mill, construction machinery and many other industries.
We are strong in research and development. We can design and produce bearings with drawings or samples to meet customers' specific needs. OEM services are also provided with customers' authorization. Small orders are accepted, free samples are available. We guarantee high quality, competitive prices, on-time delivery, fast response. Welcome all distinguished guests at home and abroad to contact us for business, looking forward to working with you hand in hand, create more brilliant future together!
