GPS vehicle tracker, which integrate multiple functions of accurately positioning, monitoring, guarding vehicle against theft, emergency alarms, tracking for vehicles. It is based on GSM / GPRS network and GPS satellites system, providing tracking by several ways, like providing monitor software and real-time global map to track in the PC, or track through cellphone and google earth
Product Features
*Supports quad bands, i. E. 850/900/1800/1900MHz, worldwide used
*Wide Input Voltage: 9-60V DC.
*GPS + GSM (LBS) Tracking
*GPS precise positioning with A-GPS and feedback position via GPRS at setting times
*Tracks real-time and playback
*Web browser platform, Smart phone APP platform and SMS query.
*Supports multiple alarm, acceleration sensor can be added (B models, optional component), so as increase vibration, collision and falling alarm.
*Supports ACC status checking and vehicle status notifying.
*Use relay to remotely control the vehicle.
*Multiple protocol support, OTA upgrade program.
*Mini size, easy to hide and install
*OEM and ODM orders are welcome
Base Specification
Voltage: 12VDC/24VDC/48VDC/60VDC
Standby Current: <10mA@12V
Work current: <30mA@12V
GPS positioning accuracy: 15m
GSM positioning accuracy: 100m
GPS Frequency: 1575MHz
GSM Frequency: 850/900/1800/1900MHz
Hot/warm/cold start time: <3s, <15s, <60s
Dimensions (mm): 71.8(L)X38.5(W)X10.5(H)S
Operating temperature: -20º C~70º C
Operating humidity: 20%~80%RH
Net Weight: 42 g
Alarm Type
Vibration Alarm(Optional)
Collision / falling Alarm(Optional)
Speed Alarm
Geo-fence Alarm

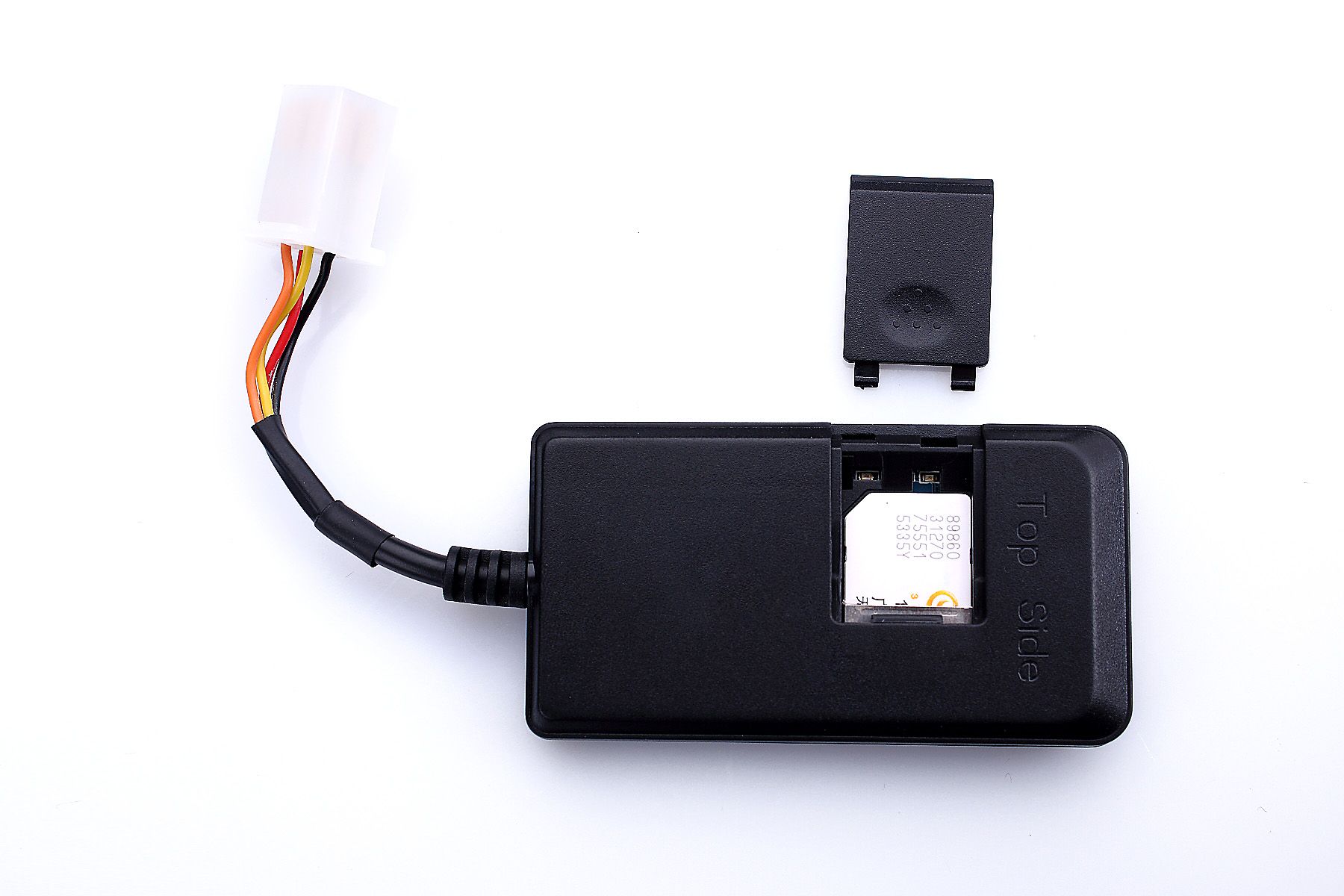

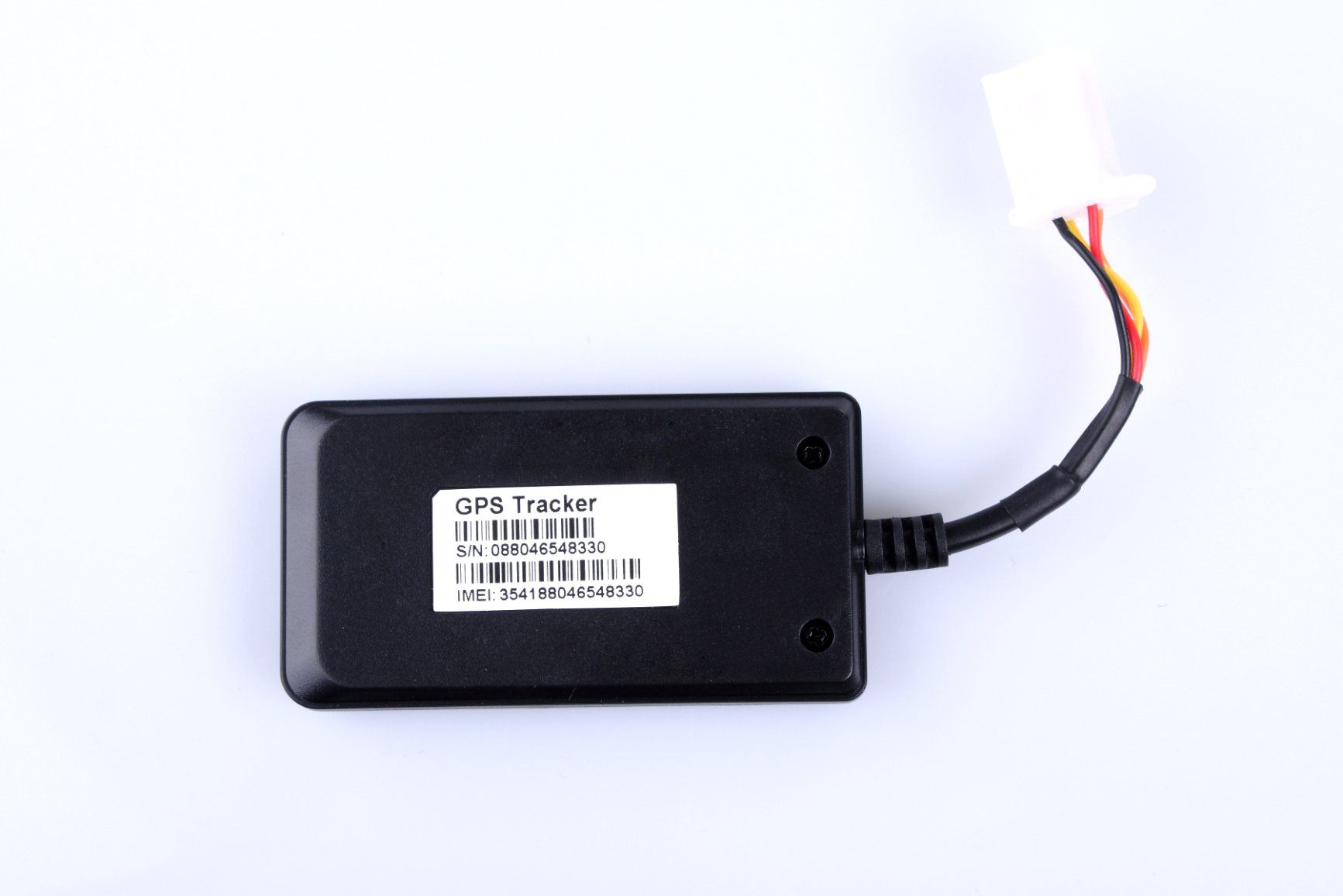

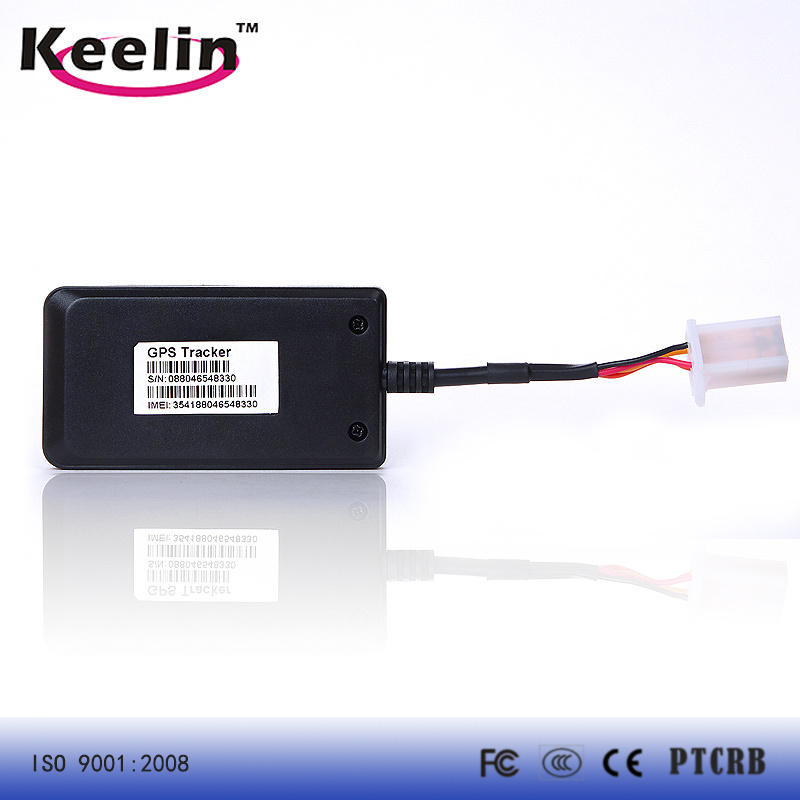

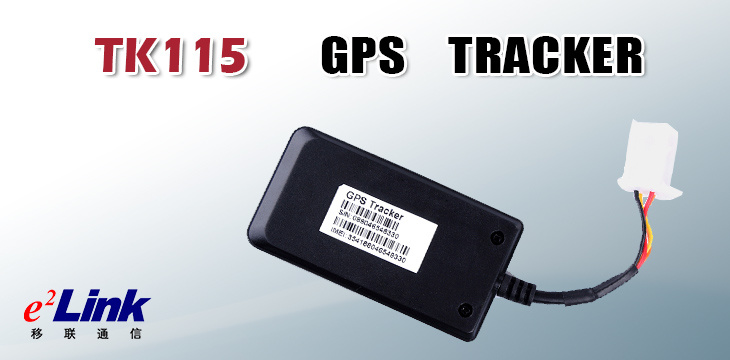

GPS Tracker tk115 picture
Platform
You can choose Keelin terminal monitoring platform or not. It is designed by EELINK, we can position, playback the cars' track, listen and cut off oil of car on the platform server.
Application
Car rental solution
Taxi management solution
Vehicle tracking solution
Trucking and logistics solution
Secure transportation solution
Service oriented transporter solution
Operation centric solution
School bus management solution
Employee commuting solution
Police and public safety solution
GPS Tracker tk115 parameter
| Base Specification |
| Voltage: | 12VDC/24VDC/48VDC/60VDC |
| Standby Current: | <10mA@12V |
| Work current: | <30mA@12V |
| GPS positioning accuracy: | 15m |
| GSM positioning accuracy: | 100m |
| GPS Frequency: | 1575MHz |
| GSM Frequency: | 850/900/1800/1900MHz |
| Hot/warm/cold start time: | <3s,<15s,<60s |
| Dimensions (mm): | 71.8(L)X38.5(W)X10.5(H) |
| Operating temperature: | -20ºC~70ºC |
| Operating humidity: | 20%~80%RH |
| Net Weight: | 42 g |
DeliveryDHL/Fedex/UPS/TNT/EMS etc airexpress are optional, we can send goods as the requirement of client.
1. Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
2. For order over 500pcs or customized order, please contact our sales to make sure the current inventory.
Our manufacturing capacity is 1,200,000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.Warranty1.All products have been strictly Quality Checked in house before packing.
2.All products have been well packed before shipping.
3.One year warranty is provided for all models. We will bear maintenance cost during warranty. OEM&ODM Service
1.Customize logo and brand print on the device,MOQ is 1000pcs.
2.Customize the tracker for special functions, MOQ is 3000pcs.
3.Offer software customization service,such as communication protocol.
