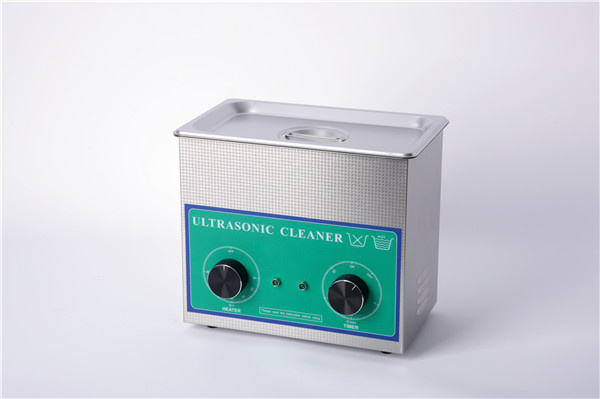

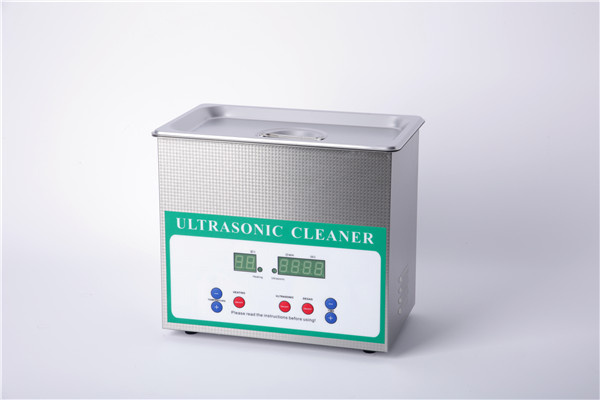

. Small Ultrasonic Cleaning Machine
Ultrasonic cleaners are widely used in every fields include the same high power, rugged transducers found on industrial systems sold to the automotive, electronics, and metalworking industries. Ultrasonic Cleaners use engineered ceramics to assure both durability and superior power. Ultrasonic Cleaners are coupled with a new sweep frequency capability, so you get the best possible cleaning every time, all the time.
Due to the properties of ultrasonic cleaning it can be used over a broad range of operations. Ultrasonic cleaners are used in many industries such as the jewelry, utensils, hardware and brassware, automotive, sporting, printing, marine, medical, pharmaceutical, electroplating, disk drive components, weapons and ball point pen tip cleaning.
The ultrasonic cleaning process is involved with immersing a part in a appropriate liquid medium, sonicating that medium with high-frequency sound for a short gap of time rinsing with pure solvent or water and drying.
1 Bakr is the first one to use full-bridge IGBT high-power integration modules- Siemens to control power source, good protection against high temperature, high pressure and overheating, makes the cleaner perfect.
2 Withstand high temperature. It can reach up to 80C, Siemens modules is of high pressure resistance, as transistor and filed effect tube can be easily be broken down by current under high voltage, not only affecting the normal function but also disturbing the transducer's frequency, Siemens can avoid this.
3 Siemens module control power is higher than other components; Bakr`s control circuit adopts the most advanced power adjustment according to different components.
4 Adopting original Germany CeramTec piezoelectric ceramic chip, high-precision CNC machine equipment and accurate test methods ensure Bakr high quality. And tank adopts expoted 2mmSUS304 stainless steel.
5 Good outlook, low defective rate, easy operation and professional style.
Applications:
Electronic Industry for delicate part Hospitals and Medical Facilities
Dental office and Laboratories Industrial Manufacturing
Jewelry Industry for intricate parts Auto Industry for rugged parts Musical instruments Engine, filter, gear, metalplating
| Model | BK-1800 | BK-2400 | BK3600 | BK-4800 | BK-6000 | BK-7200 |
BK-10000
| BK-12000 |
| Ultrasonic Power | 1.8KW | 2.8KW | 3.6KW | 5.2KW | 7.2KW | 8.0KW | 10.8KW | 21.6KW |
| Heating Power | 4KW | 6KW | 9KW | 12KW | 15KW | 18KW | 20KW | 32KW |
| Voltage | 380V | 380V | 380V | 380V | 380V | 380V | 380V | 380V |
| Tank Size(mm)(LxWxH) | 600*480*450 | 750*550*480 | 1000*550*560 | 1200*650*650 | 1450*720*730 | 1500*800*800 | 1700*900*800 | 2200*1200*1000 |
Product Size(mm)
(LxWxH) | 760*770*680 | 910*850*770 | 1160*850*870 | 1400*1030*980 | 1650*1190*1100 | 1700*1280*1150 | 1960*1450*1150 | 2200*1800*1350 |
| Ultrasonic direction | three sides | three sides | three sides | three sides | three sides | three sides | three sides | three sides |
| Dregs tank | have | have | have | have | have | have | have | have |
| Overflow device | have | have | have | have | have | have | have | have |
Jinan Bakr Ultrasonic Technology Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of ultrasonic cleaning equipment. We are located in Jinan city, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.
Covering an area of 400, 000 square meters, we now have over 200 employees and an annual sales figure that exceeds USD8, 000, 000. We are currently exporting 60% of our products worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001 & CE certifications.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Japan, Korea, Taiwan area, Thailand, Malaysia, Indonesia, Turkey, Syria, India, Pakistan, Brazil, Mexico, the USA, Europe, Canada, etc.
If you are interested in any of our products or would like to discuss a customized order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
