Small Size DC Circulation Auto Cooling and Water Pumps

Small Size DC Circulation Auto Cooling and Water Pumps
Price: Negotiable/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 200/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Small Size DC Circulation Auto Cooling and Water Pumps


 ·-40°C-125°C        ·Cold startup         ·Wide operating voltage range


Advantage:

1.  With 20mm Inlet/Outlet standard car connection and specialized water-proof connector, then the pumps can be quickly and efficiently integrated into vehicles.

2.  With -40°C~125°C  working temperature, TOPSFLO TA50 engine pre-heating & parking heater pumps provide the vehicles an efficient working environment even at extreme outdoor temperatures and in bad weather conditions.

3.  Special design to meet car vibration working requirement, car power supplying way which occur peak voltage or unstable voltage.

4.  With polarity protection function, then the pump will not burned by wrong wiring.tailored to the specific vehicle system.


Features:

·High efficiency ECM brushless DC motor with long lifetime.
·Heavy duty work, can sustain 24 hours continuous running.
·Durable permanent magnetic rotor & high density ceramic shaft.
·Advanced magnetic driving technology, static-seal without leakage forever.
·Replacing position sensor by micro processor position calculation, -40°C~125°C wide operating temperature is realized, suitable for extreme outdoor environment.
·Anti-vibration pump rubber bracket designed for automotive vibration working condition.
·Highly adaptable circuit designed specially for unstable automotive voltage and peak voltage.
·Automotive water-proof connector.
·Applied liquid: pure water, antifreeze solution.
·Low or no maintenance.
·Low power consumption
·IP67

Protection functions:
·Automatic polarity protection ·over-voltage protection
·over-current protection ·constant power output ·dry-running protection

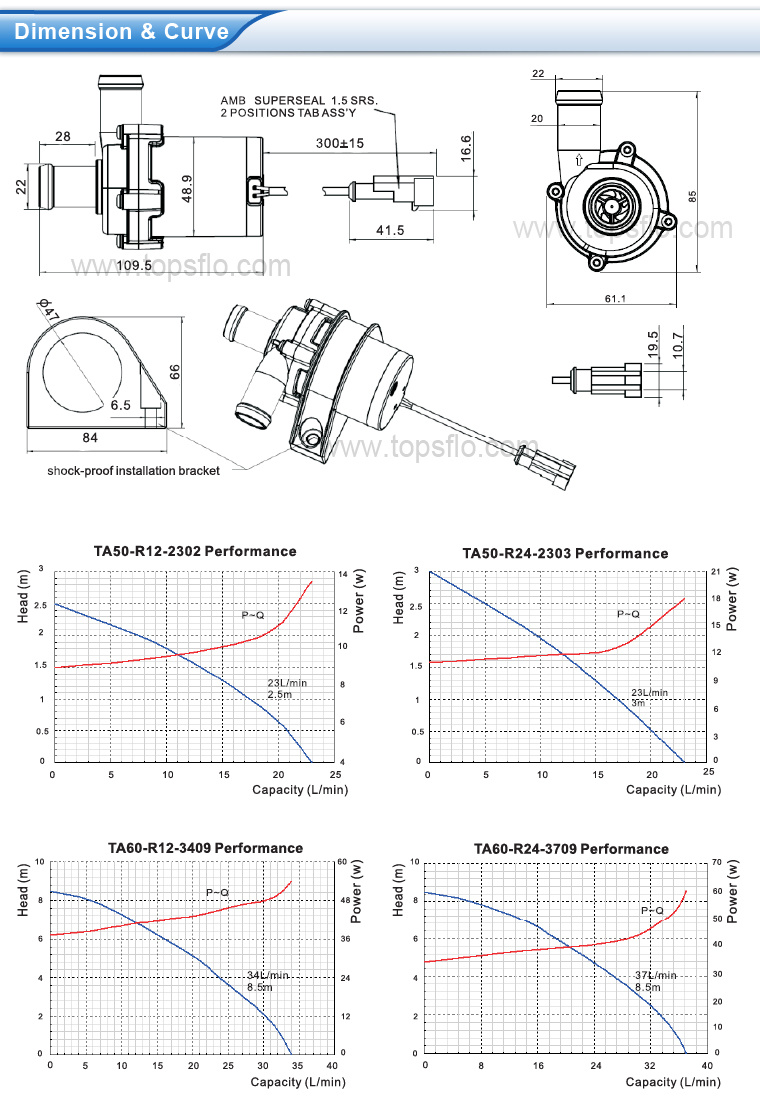

Specification:

ModelProduct CodeMax Flow RateRated Voltage CurrentMax Water HeadPower
  (L/M)(Vdc)(A)(M)(w)
TA50
(-40°C~125°C)
TA50-R12-230223L121.12.513.5
 TA50-R24-230323L240.75318




Car engine cooling circulation
Car engine pre-heating Heating system (Car Auxiliary heaters & parking heaters)
Electric vehicles water circulation system
Normal Hot Water Circulation
Liquid Transfer
General Purpose Pumping









Get more Technical data, Please Send Message

Prod Model: TA50
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motor: DC Brushless Motor,BLDC Motor,DC Motor
Voltage: 12V 24V DC
Cold Style: Water-cooled
Certification: RoHS
Cooling Fluid Type: Water
