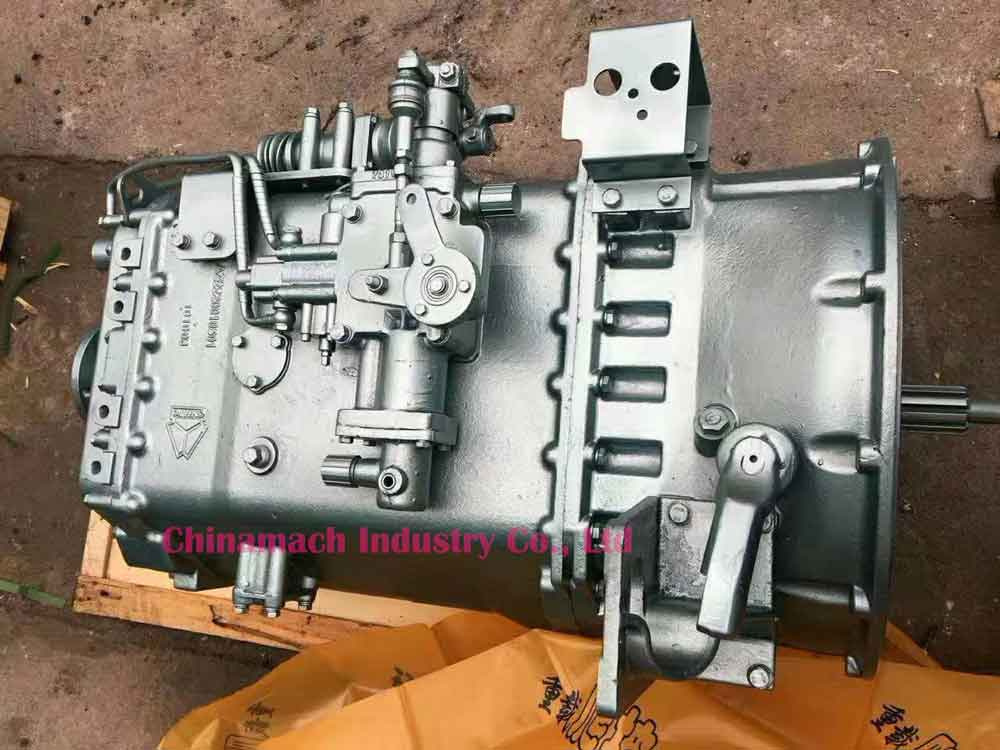

Sinotruk Hw10 Series Gear Box Hw23710 for Dump Truck

Name: Sinotruk Hw10 Series Gear Box Hw23710 for Dump Truck
Brand: ibuyautoparts.com
SKU: 732718812
Availability: InStock
Rating: 4.3 (105 reviews)

Price:	US $ 1500/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Main case and double auxiliary shaft structure; planetary gear reduction structure in sub case; with strong loading capability and reliable structure;
Combination of compulsory lubrication and gear flash lubrication provides sufficient lubrication and suits for all kinds of road conditions;
Integrated speed changing design: clear speeds marked and easy control;
ØDiversified operation modes and can be controlled by single shaft, double shafts or directly;
ØCompact structure and light weight;
Power taking off can be realized on neutral position of main case.

HW50, HW70 and HW80Q power take off can be selected;Full aluminum case transmission and retarder can be selected

Model	Rated Input Torque(Nm)	Weight(kg)	Fuel Volume(L)	Total Length(mm)	Aluminum Case is Optional
HW15710	1500	342	12	843	Yes
HW15710C	1650	342	12	843	Yes
HW19710	1900	355	12	843	Yes
HW19710C	2100	355	12	843	Yes
HW23710	2300	359	12	859
HW23710C	2500	359	12	859

Ratio of every Speed

Transmission Model	Speed Ratio for Gears
Transmission Model	1	2	3	4	5	6	7	8	9	10	R1	R2
HW15710	14.28	10.62	7.87	5.88	4.38	3.27	2.43	1.8	1.34	1	13.91	3.18
HW15710C	10.73	7.98	5.91	4.38	3.29	2.45	1.82	1.35	1	0.75	10.45	2.39
HW19710	14.28	10.62	7.87	5.88	4.38	3.27	2.43	1.8	1.34	1	13.91	3.18
HW19710C	10.73	7.98	5.91	4.38	3.29	2.45	1.82	1.35	1	0.75	10.45	2.39
HW23710	14.28	10.62	7.87	5.88	4.38	3.27	2.43	1.8	1.34	1	13.91	3.18
HW23710C	10.73	7.98	5.91	4.38	3.29	2.45	1.82	1.35	1	0.75	10.45	2.39

Type and Parameters of Optional Power Take Off

Model	Output Direction (With Engine)	Ratio	Rated Output Torque (Nm)	Output Format	Output Ratio of Direction Speed	Output Ratio of Overspeed
HW50	Same	0.74	500	Flange	0.86	0.64
HW50-05	Same	0.74	500	Spline	0.86	0.64
HW50-06	Same	0.72	500	Flange	0.84	0.62
HW70	Same	0.76	700	Flange	0.88	0.66
HW70-05	Same	0.76	700	Spline	0.88	0.66
HW80Q	Same	0.61	800	Flange	0.61

We can provide:
TRUCK
Sales Chinese trucks and construction machinery, Provide modificationsu, pgrades, consulting services
SPARE TRUCK
Supply China Truck spare parts and construction machinery parts. Products Include: Sinotruk HOWO, Weichai Power, Fonton, Shacman, XCMG, SHANTUI, SANY, SDLG
SERVICE
Provide cargo warehousing, packaging, shipping and export agency services
Agent procurement, inspection The inspection agency

Mobile: 0086-18653136590

Prod Model:	HW23710
Type1:	Hw23710
Type2:	Hw20716
Material:	Steel
Muffler Type:	Rear Muffler
Deck:	Double
Type:	Gearbox
