Side Ring for OTR Wheel Rims

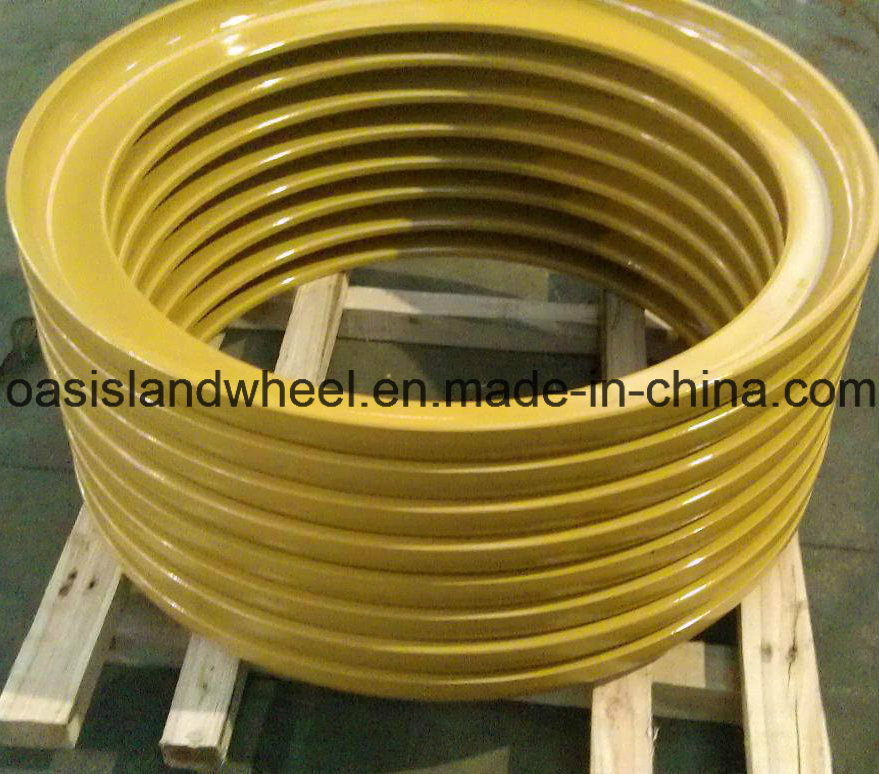

Name: Side Ring for OTR Wheel Rims
Brand: ibuyautoparts.com
SKU: 802650225
Availability: InStock
Rating: 4.6 (114 reviews)

Price:	US $ 20-100/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Side Ring for OTR WHEEL Rims

1. To ensure product quality, the company established the ISO9001 quality system
configure the universal testing machine, air tightness testing machine, chemical detector and many other test equipment.

2. Feature of our OTR Wheel
a. wheel for construction industries fully utilize high strength low alloy (HSLA) steel.
b. Heat treatment formed material is used for critical components on multi piece wheel.
c. Auto butt-welding is widely used on rim, ring and other circular parts;
d. All circumferential weld seams are inspected by nondestructive inspection to ensure zero defect.

Specification:

Application: Engineering Vehicle
Size: Lock ring / Side Ring
Type: 3 piece and 5 piece
Bolt Holes: 0
PCD: 0
CBD: 0
Offset/ Et: 0

Engeering steel wheel rim ranging from 10" to 57" are availble. The lock ring, the side ring, the bead seat, the rim and the disc can be supplied separately.

Some sizes of OTR Rims

Wheel Size	Recommend Tire Size	Specification (mm)
Wheel Size	Recommend Tire Size	A	B	C	D	E	F	G	H
25×10.00/1.5	14.00-25	254	635	38.1	574.6	173.3	82.7	546	27
25×11.25/2.0	16.00-25	285.8	635	50.8	574.6	185.7	82.7	546	27
25×13.00/2.5	18.00-25	330.2	635	63.5	574.6	211.4	82.7	546	27
25×14.00/1.5	17.5-25	356	635	38.1	574.6	224.1	82.7	546	27
25×15.00/3.0	21.00-25	381	635	76.2	574.6	236.5	82.7	546	27
25×17.00/2.0	20.5-25	431.8	635	50.8	574.6	262	82.7	546	27
25×19.50/2.5	23.5-25	495.3	635	63.5	574.6	293	82.7	546	27
33×13.00/2.5	18.00-33	330.2	838.2	63.5	574.6	211.4	82.7	749.2	27

Prod Model:	side ring
Color:	Yellow/Silver
