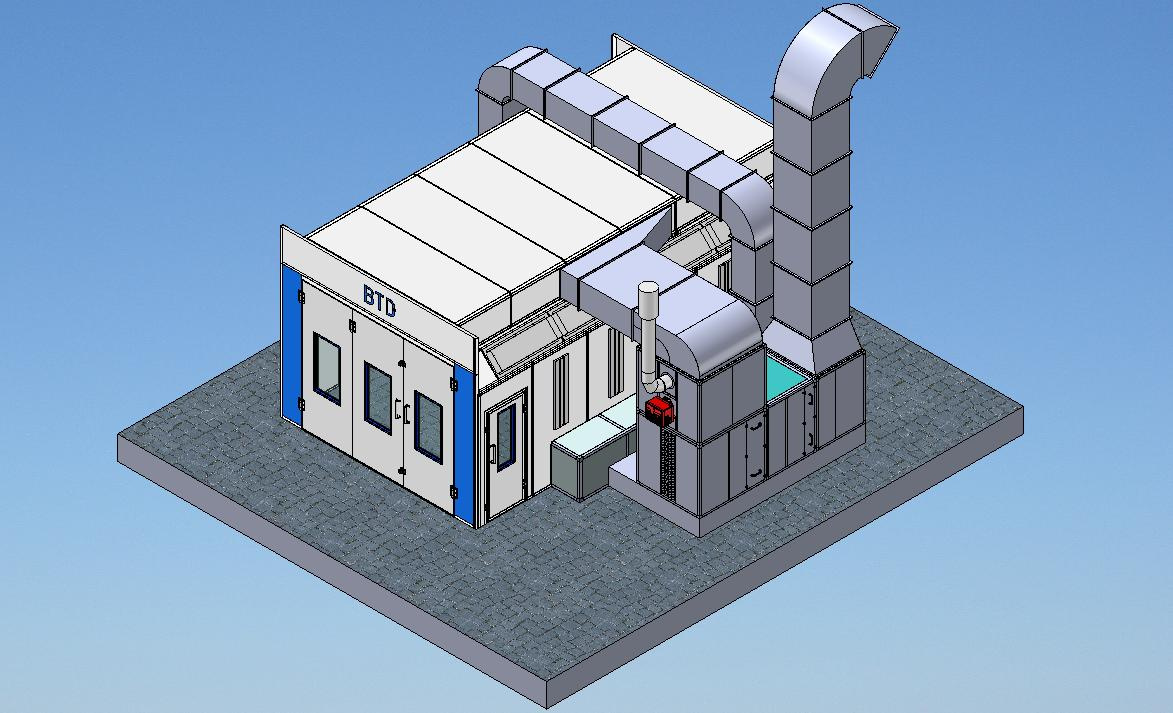

Side Down Draft Spray Booth for sales
1. CE approved
2. German Technology
3. Suitable for painting bus and truck
4. Spray booth professional manufacturer
5. Factory price, energy saving
6. High quality, best sell service, timely delivery
7. We can meet at customer's special requirement
Model: BTD 6.9M side down draft spray booth
Model |
6.9M side down draft spray booth |
Booth Dimensions |
|
-Internal Size(L× B× H) |
6900× 4000× 2800 mm |
-External Size(L× B× H) |
7000× 6830× 3460 mm |
Foundation and Floor |
|
- Loading Capacity of Galvanized Grating
|
No basement, with air collecting box, size of box is 5000× 660× 800mm (LXBXH)
|
- Surface Area of Rear Exhaust Box
|
8M² |
Wall and Door |
|
- Steel Wall |
50mm EPS panel |
- Roof Panel |
50mmEPS panel |
- 4-Folded Entrance Door With Safety Glass Window
|
2units, each one in front and rear, size is 3200× 2700 mm(B× H)
|
- Operator' s Door With Safety Glass Window
|
1Unit, 800× 2000 mm(B× H) |
Lighting |
|
- Ceiling Lightings |
8 Units, each 4× 36 W, Total 1152W, IP54 |
- Side Lightings |
8 Units, each 2× 36 W, Total 576W, IP54 |
- Brightness |
> 1000 LUX |
Filtration |
|
- Pre filters |
Panel filter |
- Ceiling Filters |
EU5 Fine Filters |
- Exhaust Filters |
Paint-Stop-Paper filters |
Ventilation System |
|
- Direct Drive Motor (Fresh Air) |
1× 7.5KW, 970RPM, 380V, 50 HZ, from CE |
- Direct Drive Motor (Exhaust Air) |
1× 5.5KW, 970RPM, 380V, 50 HZ, from CE |
- Fan Capacity |
23000m³ /h |
- Air Flow Speed |
+/- 0.24m/s in an empty booth |
Heating System |
|
- Heating Exchanger |
Stainless Steel 1Gr18Ni9Ti |
- Heating Exchange Capacity |
158KW (180000 Kcal/h) |
- Max. Drying Temperature |
80degree |
- Heating time |
4-6 min (from 20 to 60degree) by Drying Phase |
- Heating Type (optional) |
RIELLLO diesel burner G20 |
Control Box |
|
- Control system |
Standard control, baking control, painting control, lighting control, emergency stop, alarm |
- PLC |
No |
- Overpressure Manometer |
No |
- Safety Thermostat for Heating and Ventilator |
Yes |
BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002. With strong R&D experiences, advanced technology and guarantee quality, BTD brand spray booth is getting more and more popular all over the world.
BTD target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001: 2000 quality system certification and ensures that every department follows the articles of the system.
BTD has many agency and establish many showroom around the world, customers can easy find our products in your countryif we have agency and showroom there. Meanwhile, we welcomes partners who are interested to be our agency.
FQA:
Q1: Are you Manufacturer or Trading company? A: We are a professional manufacturer with our own export department.
Q2: Where is your company ocated? How can I visit there?
A: Our company is located in Guangzhou. All clients, from home and abroad, are warmly welcomed to visit us.
Q3: How about the quality of the products?
A: With the advanced machines, strong and professional R&D team and material
Sources, our products are excellent in performance and craftsmanship.
Q4: What's the sort of heating types?
A: There are diesel, gas and electricity(infrared lamp) heating.
Q5: Does the BTD spray booth with the European design?
A: Our products are welcomed in Europe. All the spray booths are according to European standard with CE certificate.
Q6: What are range of the voltage and power for BTD spray booth when operating?
A: The standard voltage and power for our products is 220V 50Hz 1pH for lights (Residential voltage), 380V 50Hz 3pH for motors (Industrial voltage), we could modify the voltage to suitable for customer's local voltage.
Q7: Can we customize our product?
A: Absolutely yes, BTD has the professional team with 10 years of design experience. Customized material and standard are acceptable. We can provide different standards according to your market and favor.
Our Service:
We provide a design service, with advice on all aspects of all the build, including airflow, ducting, filters, lighting, environmental issues and health and safety issues.
If you wish to discuss any aspect of your project,
Please feel free to contact us.
