Sic Diesel Particulate Filter DPF for Catalytic Converter

Sic Diesel Particulate Filter DPF for Catalytic Converter
Price: US $ 16.0-16.5piece
Trade Terms: FOB,CFR,CIF
Min Order: 10piece
Pay Type: L/C,T/T,Western Union

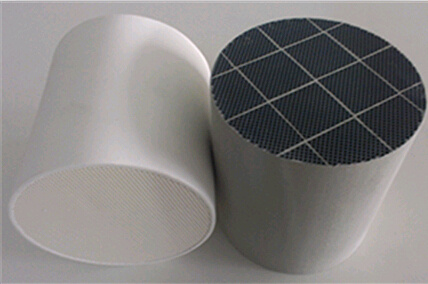

Diesel Particulate Filters has succesefully installed in cars, buses, trucks, and various construction machinery vehiles, DPF's life WITHIN the 300, 000km, collection efficiency range 97percent. Heat regeneration is made through the displacement management, and the ashes left from the regeneration shall be cleaned regularly. Systematic designs are available upon customers' requirements, so as to reach the demands of different displacement standards. Diesel particulate filter is made of cordierite or silicon carbide. It adopt opening and blocking up passages in both ends and the exhaust gas flow through the porous beehive wall to filter particles.

Low pressure drop
Excellent capturing performance
Low thermal expansion
High filter specific surface area
Long-term durability performance
High soot removal: > 95%
Diesel particulate filter is made of Sic, and it is used to remove black smoke (PM e. G.: Hydrocarbons, soot) from diesel engine exhaust. And usually DPF removes 95% or more of the soot. Working principle: By forcing the exhaust gases through the walls between the channels of the DPF, the particulate matter is deposited on the walls, so reducing the amount of air pollution.

Features:
*Uses porous porcelain materials and porous sintered metal as filtration materials, which can filtrate the solid particles in the diesel displacement, thus meeting the exhaust particle requirements of the displacement laws and regulations
*According to the engine uses and operations, physical and chemical methods are adopted to eradicate the particles periodically, so that the displacement resistance can be maintained in a certain level and not influenced by the diesel performance
*The particle filtration efficiency of the diesel is more than 90%
*Heat regeneration is made through the displacement management, and the ashes left from the regeneration shall be cleaned regularly
*Systematic designs are available upon customers' requirements, so as to reach the demands of different displacement standards

Characteristic
*Large and compact area per unit volume
*Small pressure loss and excellent capturing performance
*Excellent heat resistance and heat shock resistance

Property (uncatalyzed)100/17200/12
Cell densitycpsi100200
cpscm15.531.0
Wall thicknessinch0.0170.012
mm0.4320.305
Open frontal area (OFA), %34.534.5
Geometric surface area (GSA)Inch 233.347.0
m 2 /l1.311.85
Hydraulic diameterInch0.0830.059
mm2.111.49
Modulus of rupture (psi/cpscm)350300
Porosity (%)4848
Coefficient of thermal expansion
10 2  cm/cm/ (20-800) --maximum average
55
Mean pore size (micron)1313
Melting temperature ()14601460

Size(Diameter  ×  length)Filter volume(Liter)Cell densityShape
mmInches
Φ 70 × 152Dia.2.76 × 60.58100/200CPSIRound
Φ 144 × 152Dia.5.66 × 62.48100/200CPSIRound
Φ 144 × 205Dia.5.66 × 83.34100/200CPSIRound
Φ 144 × 254Dia.5.66 × 104.13100/200CPSIRound
Φ 144 × 305Dia.5.66 × 124.96100/200CPSIRound
Φ 170 × 254Dia.6.69 × 105.76100/200CPSIRound
Φ 190 × 200Dia.7.48 × 7.875.67100/200CPSIRound
Φ 228 × 152Dia.8.97 × 66.20100/200CPSIRound
Φ 228 × 254Dia.8.97 × 1010.37100/200CPSIRound
Φ 228 × 305Dia.8.97 × 1212.45100/200CPSIRound
Φ 240 × 240Dia.9.45 × 9.4510.85100/200CPSIRound
Φ 240 × 254Dia.9.45 × 1011.48100/200CPSIRound
Φ 240 × 305Dia.9.45 × 1213.79100/200CPSIRound
Φ 260 × 305Dia.10.23 × 1216.19100/200CPSIRound
Φ 270 × 305Dia.10.63 × 1217.45100/200CPSIRound
Φ 286 × 305Dia.11.26 × 1219.58100/200CPSIRound
(98 × 195) × 154(3.8 × 7.7) × 62.60100/200CPSIRace track
(98 × 195) × 205(3.8 × 7.7) × 83.50100/200CPSIRace track
(98 × 195) × 254(3.8 × 7.7) × 104.30100/200CPSIRace track
(98 × 195) × 305(3.8 × 7.7) × 125.20100/200CPSIRace track

Prod Model: DPF
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Silica Carbide
Application: as Catalyst Used in Diesel Engine
Cell: 70,100,200
Specification: 286*305mm
Color: Green, White
Discharge Standard: Euro IV
Certification: TS16949
Component: Catalytic Converter
Body Material: Ceramic

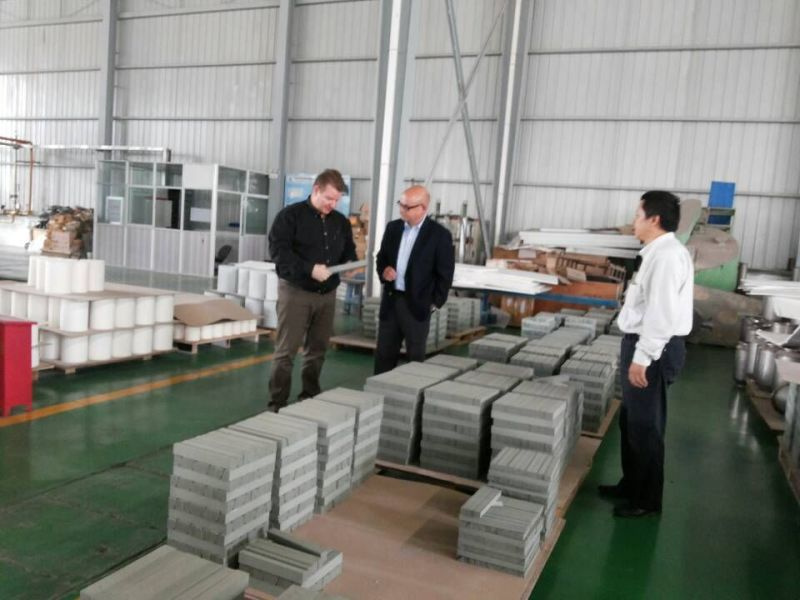

Beihai Xiaoming International Imp&Exp Co., Ltd Established in 2008, which is a Private High-tech company located in Beihai city, China that is famous for its Silver Beach. We are a professional manufacturer and exporter of producing and exporting SiC/Al2O3/Zirconia Ceramic Foam Filter, Honeycomb Ceramic Heater for RTO, Infrared Cramic Plate, Cordierite/SiC Diesel Particulate Filter, Ceramic/Metal Honeycomb Substrate etc chemical products.

Beihai Xiaoming International Imp&Exp Co., Ltd is in the production, sales as a whole, and in cooperation with a number of large Group companies of major export commodities operated enterprises with a good reputation. For many years, with exports to Europe, and many countries in Southeast Asia, and received high praise.

We have a number of domestic and international famous academia senior adviser, own an innovation R & D team and sales elite. We have an excellent team of R & D\Production\Management and Sales, with passionate and responsibility. Currently, we have applied more than 30 patents for products developed and got certificates issued by international authorities such as TUV, IEC, UL, CE.

With the spirit of innovation during R&D, we were, we are and we will always be perfecting our products with the philosophy of " science, precision, accuracy and high efficiency". We hereby make our commitment: We offer our clients with the most effective and satisfying service, and this is our every person in our company to constantly pursuit.
