SiC-based Diesel particulate filter is used to remove black smoke from diesel engine exhaust. DPF can be widely used in different industrial fields such as transportation, generating units, engineering machinery and metallurgy etc. The system installed Diesel Particulate Filter been examined for urban bus, forklift, truck & mining constructing equipment.

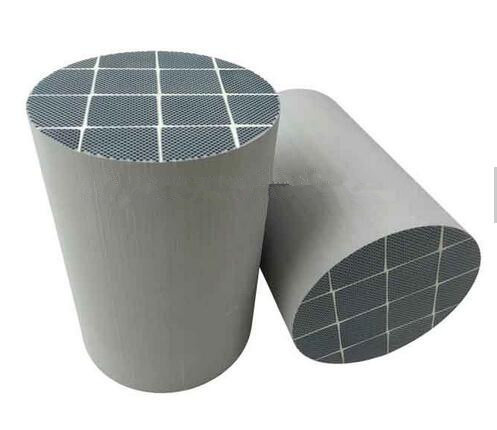

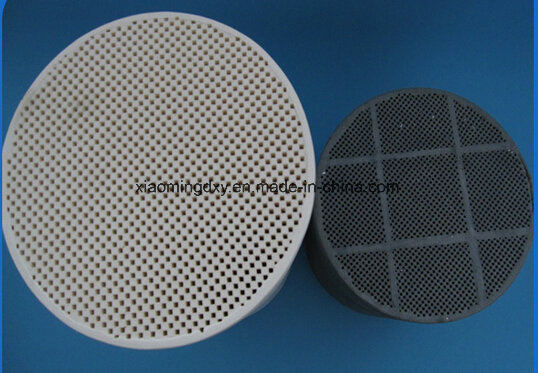

Silicon carbide Diesel Particulate Filter is mainly used in the diesel engine tail gas purifying system to solve the air pollution problem. It adopt opening and blocking up passages in both ends and the exhaust gas flow through the porous beehive wall to filter particles.
The characteristics of the wall flow diesel particulate filter as follows:
*Broad band filtration (the diameters of the filtered particles are 0.2-150 μ M)
*Low back pressure
*High filtration efficiency (can be up to 95%)
*High refractory
*High mechanical properties

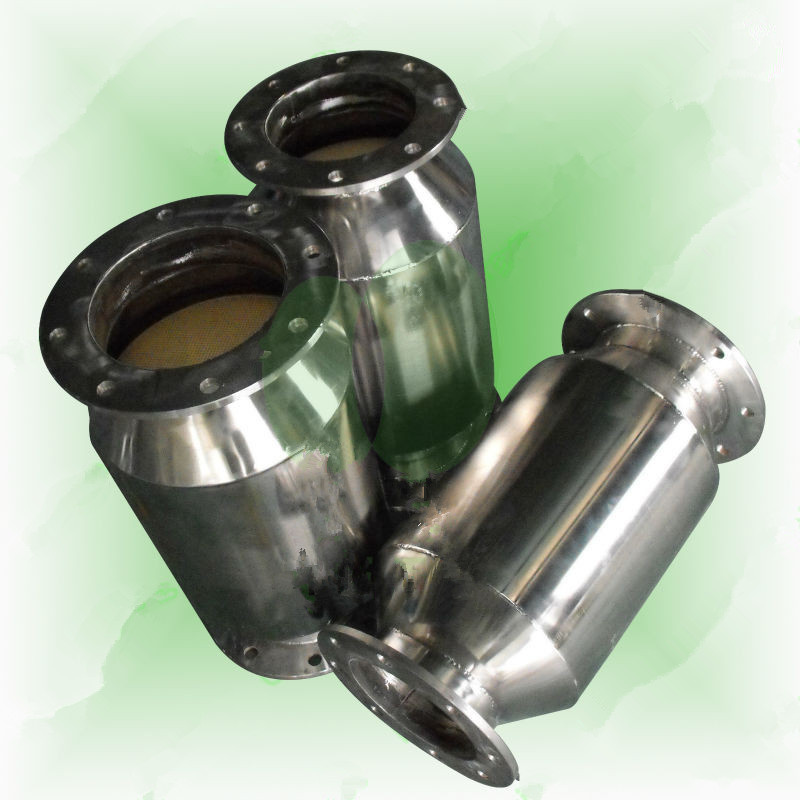

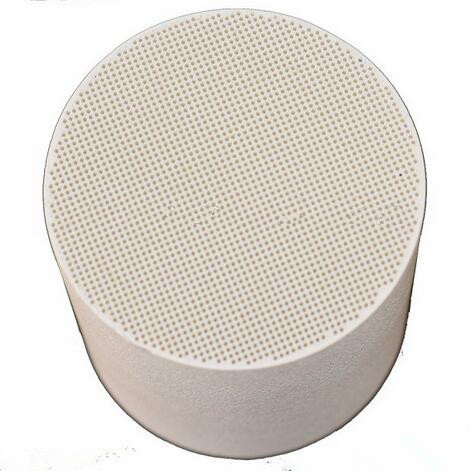

If the DPF is coated with precious-metal (such as Pt, Pd and Rh), black smoke with carbon particulate from diesel engine pass through a special tube and enter the filter. The carbon smoke particulate is absorbed to the filter made of metallic fiber felt, when passing the inner dense set and bag-style filter. When particulate absorption reaches some degree, the tail burner would be ignited to burn automatically. In this case, the particulate absorbed been burned out and turned into nontoxic CO2 then discharge. The full device is designed as double room structure, and filtration and recycle are going in different areas, making them non-disturbed. The system can work automatically whatever working condition the engine in. Especially made honeycomb ceramic particulate filter, acts as capturing device to the particulate to some extent.
| Property (uncatalyzed) | 100/17 | 200/12 |
| Cell density | cpsi | 100 | 200 |
| cpscm | 15.5 | 31.0 |
| Wall thickness | inch | 0.017 | 0.012 |
| mm | 0.432 | 0.305 |
| Open frontal area (OFA), % | 34.5 | 34.5 |
| Geometric surface area (GSA) | Inch 2 | 33.3 | 47.0 |
| m 2 /l | 1.31 | 1.85 |
| Hydraulic diameter | Inch | 0.083 | 0.059 |
| mm | 2.11 | 1.49 |
| Modulus of rupture (psi/cpscm) | 350 | 300 |
| Porosity (%) | 48 | 48 |
Coefficient of thermal expansion
10 2 cm/cm/ (20-800) --maximum average | 5 | 5 |
| Mean pore size (micron) | 13 | 13 |
| Melting temperature ( Celsius Degree ) | 1460 | 1460 |
| Size(Diameter × length) | Filter volume(Litre) | Cell density | Shape |
| mm | Inches |
| Φ 70 × 152 | Dia.2.76 × 6 | 0.58 | 100/200CPSI | Round |
| Φ 144 × 152 | Dia.5.66 × 6 | 2.48 | 100/200CPSI | Round |
| Φ 144 × 205 | Dia.5.66 × 8 | 3.34 | 100/200CPSI | Round |
| Φ 144 × 254 | Dia.5.66 × 10 | 4.13 | 100/200CPSI | Round |
| Φ 144 × 305 | Dia.5.66 × 12 | 4.96 | 100/200CPSI | Round |
| Φ 170 × 254 | Dia.6.69 × 10 | 5.76 | 100/200CPSI | Round |
| Φ 190 × 200 | Dia.7.48 × 7.87 | 5.67 | 100/200CPSI | Round |
| Φ 228 × 152 | Dia.8.97 × 6 | 6.20 | 100/200CPSI | Round |
| Φ 228 × 254 | Dia.8.97 × 10 | 10.37 | 100/200CPSI | Round |
| Φ 228 × 305 | Dia.8.97 × 12 | 12.45 | 100/200CPSI | Round |
| Φ 240 × 240 | Dia.9.45 × 9.45 | 10.85 | 100/200CPSI | Round |
| Φ 240 × 254 | Dia.9.45 × 10 | 11.48 | 100/200CPSI | Round |
| Φ 240 × 305 | Dia.9.45 × 12 | 13.79 | 100/200CPSI | Round |
| Φ 260 × 305 | Dia.10.23 × 12 | 16.19 | 100/200CPSI | Round |
| Φ 270 × 305 | Dia.10.63 × 12 | 17.45 | 100/200CPSI | Round |
| Φ 286 × 305 | Dia.11.26 × 12 | 19.58 | 100/200CPSI | Round |
| (98 × 195) × 154 | (3.8 × 7.7) × 6 | 2.60 | 100/200CPSI | Race track |
| (98 × 195) × 205 | (3.8 × 7.7) × 8 | 3.50 | 100/200CPSI | Race track |
| (98 × 195) × 254 | (3.8 × 7.7) × 10 | 4.30 | 100/200CPSI | Race track |
| (98 × 195) × 305 | (3.8 × 7.7) × 12 | 5.20 | 100/200CPSI | Race track |
Beihai Xiaoming International Imp&Exp Co., Ltd Established in 2008, which is a Private High-tech company located in Beihai city, China that is famous for its Silver Beach. We are a professional manufacturer and exporter of producing and exporting SiC/Al2O3/Zirconia Ceramic Foam Filter, Honeycomb Ceramic Heater for RTO, Infrared Cramic Plate, Cordierite/SiC Diesel Particulate Filter, Ceramic/Metal Honeycomb Substrate etc chemical products.
Beihai Xiaoming International Imp&Exp Co., Ltd is in the production, sales as a whole, and in cooperation with a number of large Group companies of major export commodities operated enterprises with a good reputation. For many years, with exports to Europe, and many countries in Southeast Asia, and received high praise.
We have a number of domestic and international famous academia senior adviser, own an innovation R & D team and sales elite. We have an excellent team of R & D\Production\Management and Sales, with passionate and responsibility. Currently, we have applied more than 30 patents for products developed and got certificates issued by international authorities such as TUV, IEC, UL, CE.
With the spirit of innovation during R&D, we were, we are and we will always be perfecting our products with the philosophy of " science, precision, accuracy and high efficiency". We hereby make our commitment: We offer our clients with the most effective and satisfying service, and this is our every person in our company to constantly pursuit.
