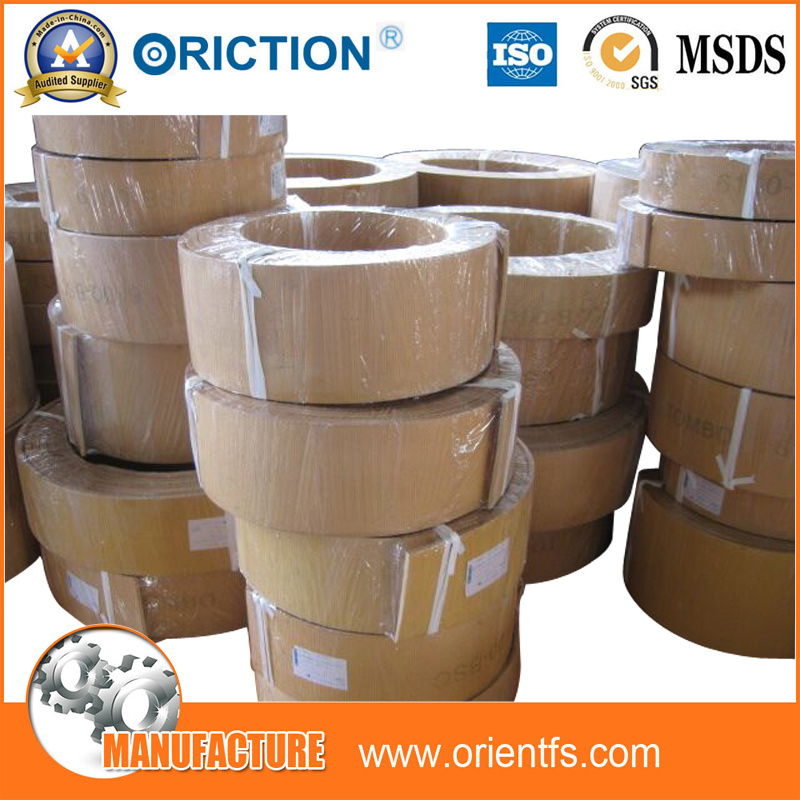

Ship brake lining in roll
Temperature Coefficient of friction(μ ) Wear rate(v)cm3/N. M
100 0.40--0.65 ≤ 0.7 x 10-7
150 0.35--0.65 ≤ 0.9 x 10-7
200 0.32--0.60 ≤ 1.1 x 10-7
Ship brake lining in roll
Color: Yellow
Working conditions200, 1.0Mpa Pressure.
Applied field widely used for braking deceleration and transmitting power of big power machineries, such as ship winch, dock crane, drilling machineries, lifting machine, building machinery etc.
SpecificationT5~30x W500
Ship brake lining in roll is good wear rate and stable friction coefficient.
Description of Woven Resin Brake Lining In Roll:Orient non asbestos woven brake lining in rolls use the new international composite fiber that is wear resisting and heat resisting, woven by advanced equipment, infused in macro molecule resin, finalizing the shape by technology of high and low temperature. Widely used different working environment for braking and dynamic transfer of high power machines, such as marine anchor, port hoist, drilling machine and lift etc. Features of Woven Resin Brake Lining In Roll: 1. Stable friction coefficient 2. Low wear rate 3. High tensile strength 4. Good flexibly Data Sheets of Woven Resin Brake Lining In Roll : | Property | Description | Non Asbestos Woven Resin
Brake Lining Roll |
| ORIENT Type | Type yellow | Type brown |
| Coefficient of Friction | at 100ºC | 0.40-0.65 | 0.40-0.65 |
| at 150ºC | 0.35-0.65 | 0.35-0.65 |
| at 200ºC | 0.30-0.60 | 0.30-0.60 |
Wear Rate
(cm3/N.m) | at 100ºC | 0.3 X 10-7 | 0.3 X 10-7 |
| at 150ºC | 0.5 X 10-7 | 0.5 X 10-7 |
| at 200ºC | 0.7 X 10-7 | 0.7 X 10-7 |
| Temp Resistance | Working Temp | 200ºC |
| Max Temp | 325ºC |
| Tensile Strength | 21 Mpa |
Normal
Size
| Thickness | 5-30mm ( 3/16- 1 1/4 inch) |
| Width | 500mm (20 inch) |
| Length | 10m, 15m, 20m (25feet) |
| Material | Viscose fiber, glass fiber, copper wire,melamine resin | Viscose fiber, glass fiber, copper wire, cashew nut oil resin |
Note: Other Size, Color, and Material can be manufactured according to your request. NINGBO CIXI ORIENTAL FRICTION PRODUCTS CO. LTD. ***************************************************** Address: No 168, Sanjiangkou Industrail Area, Cixi, Ningbo , China Phone: 0086-574-87462835Mobile: 0086-13884461123 Fax: 0086-574-87025070 Website: www.wovenbrake.comPostcode: 315324 ******************************************************
Cixi Oriental Friction&Sealing Product Co., Ltd. is located in Cixi, south of Hangzhou Bay, Zhejiang Province, China. It is 110 km east of Hangzhou, 80 km west of Ningbo, and close to national road No. 329. The factory occupies an area of 30, 000 square meters. The company manufactures friction products and sealing products.
With more than 39 years experience Cixi Oriental Friction&Sealing Product Co., Ltd. Specializes in producing brake lining in roll, clutch facing, brake lining, ceramic fiber, carbon fiber packing and non asbestos yarn, all under the ORICTION brand. These products are mainly used in winch brake and engineering machines.
Our factory is a leading enterprise in the Chinese friction and sealing products industry. We have already developed environmentally friendly non-asbestos products of the first generation, featured as: "environmentally protective, safe, value-added and advanced". Our products have passed ISO9001(2008)international quality system certification and have been exported to North America, Western Europe, Southeast Asia.
With competitive prices and good service, we are looking forward to doing business with you.
