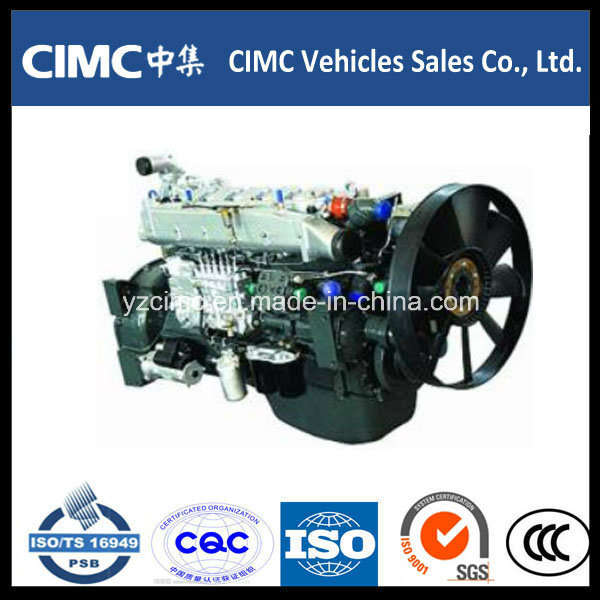

Shacman Spare Parts Wd615 Weichai Engine

Shacman Shaanxi truck spare parts WD615 WEICHAI Engine
Weichai Engine WD615.58 WD615.56 WD615.50 WD615.46 WD615.44 WD615.34 WD615.38 WD615.31 WD615.30
More economical
WD615 diesel truck engine has a broad range of big torque, and its fuel economy is fine at all conditions. The performance has been improved obviously and the fuel consumption decreased by more than 10% after optimization for combustion
More powerful
Wide power range(196-323kW) and high torque backup (up to 30%) of the engine insure the vehicle working
Normally under all kinds of conditions.

More reliable
High rigidity of cylinder block with special framed main bearing structure, strict quality management system and global sourcing for major components insure the reliability of the complete engine. The target of durability reaches l0000h without major overhaul.
More practical
One cylinder one head is convenient in maintenance. Major parts of WD615 and WD618 engines are interchangeable thus lowers the running costs. Outline dimensions of the whole series are the same which can make design and manufacture easier.
Environmental protective
By optimizing of combustion, intake and fuel supply systems of the engine, emissions of exhaust pollutants from any Weichai Power product for vehicle are prior to the limit in Euro II regulation and has the potential to meet Euro III.

Good starting performance at low temperature
The engine can be started normally at -15 Degree without any auxiliary equipment, and it can be started smoothly at-40 Degree with auxiliary equipment. The engine can be operated normally at plateau with an elevation of 5000m.
Besides, the brake system of the vehicle can be controlled effectively by WEVB (Weichai Exhaust Valve Brake) system, and the brake rate has been increased by 55%, and thus the safety of both vehicle and passangers are increased.


WD615  Series  Truck  Diesel  Engine
Model	WD615.58	WD615.56	WD615.50	WD615.50	WD615.46	WD615.44	WD615.44	WD615.38	WD615.34	WD615.31	WD615.30
Bore/stroke(mm)	126× 130
Displacemen(L)	9.726
Rated  output(kW)	176-240	193-262	206-280	213-290	266-360	243-330	235-320	280-380	250-340	228-310	221-300
Rated  speed(r/min)	2200	2200	2200	2200	2200	2200	2200	2400	2200	2200	2200
Peak  torque(Nm)	1000	1100	1160	1160	1460	1250	1250	1460	1350	1160	1160
Peak  torque/speed(r/min)	1300-1600		1100-1600		1400-1600				1100-1600
Min  fuel  consumption(g/kW. h)	≤ 198
Net  weight(kg)	875
Emission	Euro  II
	1566× 582× 1024
Over  all  dimension  (L× W× H)(mm)

Please contact us for details.
