Sewer Waterproof Pipe Plumbing Inspection Camera

Name: Sewer Waterproof Pipe Plumbing Inspection Camera
Brand: ibuyautoparts.com
SKU: 726914305
Availability: InStock
Rating: 4.8 (130 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	2/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	V10-3288A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Bullet Camera Head:	Waterproof CCTV Inspection Camera
Certification:	UL, FCC

Product Description

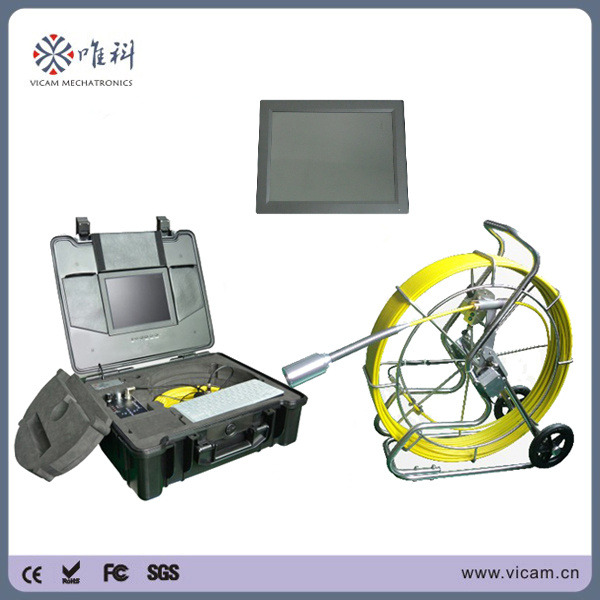

Sewer Waterproof Pipe Plumbing Inspection Camera

Camera Head
* CCD color 600 TV lines
* Camera head size Φ 50 x 88mm for pipe Φ 100mm and up
* Image sensor 1/3 inch
* Self-leveling picture
* Field of view 90°
* Camera lighting 18 white LEDS
Cable Reel with Meter Counter
* Counter device error rate less than 0.1%
Stainless steel Cable Reel size 770 x 830 x 360 mm
* 120m Φ 9 mm fiberglass rod push cable ( 60m optional)
Snake rod push cable with stainless steel Camera Head
* Camera head size Φ 23 x 45mm for pipe Φ 25mm and up
* Fiberglass Φ 5.2mm rod push cable 20m (30m, 40m optional)
Monitor
*10 inch TFT LED monitor
* Power supply DC 12V
DVR Control Box
* DVR power supply 12V DVR work current 200mA
* Storage medium SD card (8G SD card)
* Li-ion Battery power supply (18650 x 9 pcs 6600 mAH)
* USB jack for Keyboard
* MIC on / off button and earphone output jack ( earphone bud included)
Unit control carrying case
* ABS Carrying case size: 520mm x 435mm x 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum

Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.

Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.

Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.

We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
