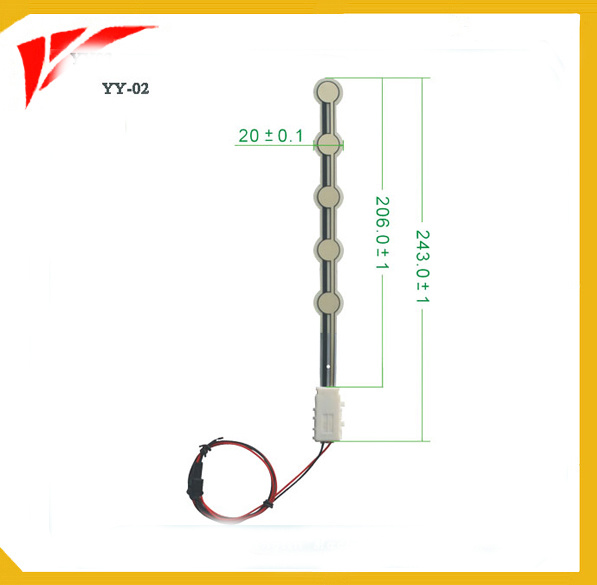

Seat Position Sensor for Car Taxi Meter Automatism

Name: Seat Position Sensor for Car Taxi Meter Automatism
Brand: ibuyautoparts.com
SKU: 768379555
Availability: InStock
Rating: 4.4 (95 reviews)

Price:	US $ 12/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Auto seat sensor is a membrane touch point sensor and touch point was distributed uniformity on the suffer facade of seat, It is use to apperceive system of auto seat, such as safety belt alarm sensor, Taxi meter automatism.
We can design to different sensor figure and touch point sensitivity according to shape. rigidity and elasticity of car seat.

Dynamic pressure sensor
Pressure range: 0.1 N/cm2 - 100N/cm2
Output signal: resistance (R)
Thickfilm sandwich: 0.15mm - 1.0mm
Great durability: >10 million activations
Minimum active area: 5mm x 5mm
Customer specific design

Material: PC
Material surface thickness: 0.188mm
Output signal: resistance
Film thickness: 0.5-0.1mm
Bottom glue: PET 3M double-sided glue
Environment Temperature:-15ºC-80ºC
Permanence>150000 time
Pressure range single-spot test:70g 100% non-conducting
130g 100% conducting

Connector: seal gum

>
Minimum active area: 5mm x 5mm
Customer specific design

Performance Parameters Table
Parameter	Condition		Sign	Numerical Value			Unit
				Min		Max
Working Voltage			U working	0		20	V
Working Current			I Working	0		50	mA
Non-trigger resistance value	No load		Rx=R No load	10.0K			Ω
Trigger resistance value	Bearing body		Rx=R Trigger	0		100	Ω
Insulation impedance	No load		Rx=R No load	10		20	MΩ
Specification
Material		PC
Material surface thickness		0.188mm
Output Signal		Resistance<100Ω
Film thickness		0.5+-0.1mm
Bottom glue		PET 3MDouble-sided glue
Enviroment Temperature		-15°C-80°C
Permanence		>150000 Time
Pressure range single-spot test(Special Poise)		70g			100%non-conducting
		130g			100%conducting
Connector		Seal gum
To match as the seat

Prod Model:	yy-02
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Sensor
Material:	PC
