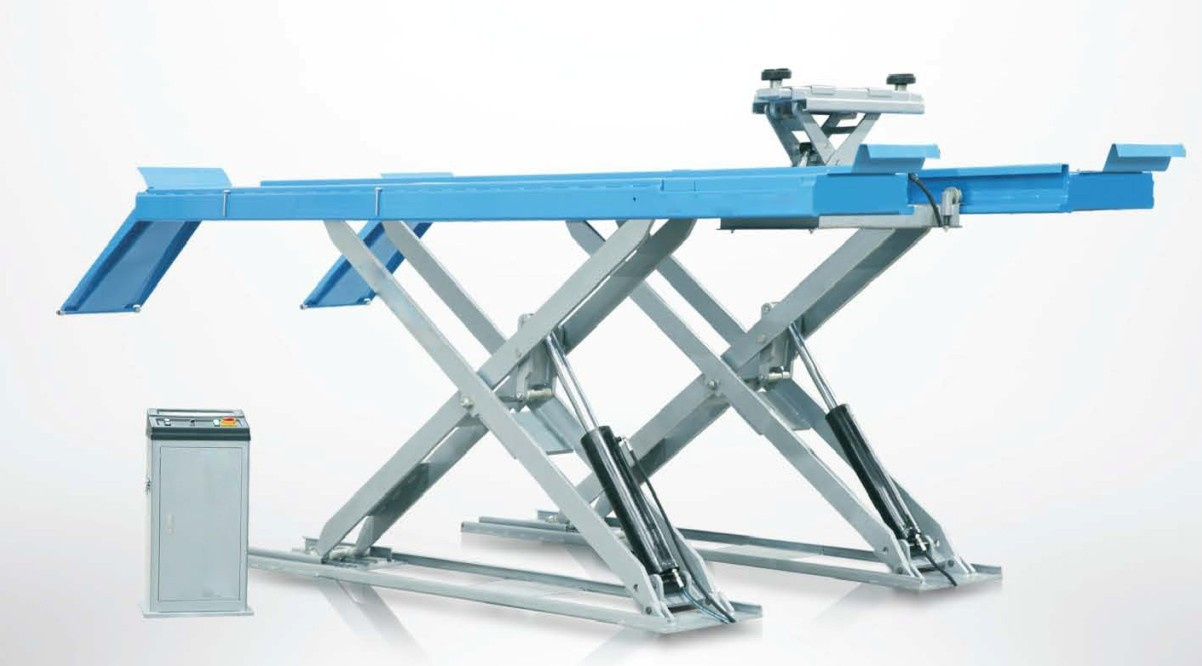

Scissor Lift with Wheel Alignment Scissor Alignment Lift, Scissor Aligner Lift

Wheel aligner the scissor lift strict according to EU standard to design.

Double deck hide configuration, synchronization capability preponderance, level precision can adjust, suit for high exactitude wheel aligner, and also suit for longer vehicle self-adjust and common maintains.

1. Hide installed
2. Flat has electro motion control balance function
3. Corner tray position can adjust
4. Adopt aluminum rind machine adopt working too hot.
5. AC24V safety control system, AC24V limit switch
6. Has pneumatic safe locked equipment to avoid machine descend when power cut off, to supply operator and vehicle safeguard
7. Electro motion hydraulic pressure system equipment adopt import component, reliable and operate it for long time.
8. Adopt manual pump-interface, can down life when power cut off.
9. Electro motion hydraulic pressure system equipment adopt import component, equipment circulate clam, is the best choice for vehicle maintain shop.
10. Prevent burst valve is the standard configuration.
11. Second hypo-lift dolly lift high is 450mm. And has the characteristic of outspread to service for more length vehicle.
12. This machine adopt 115% dynamic and 150%static loading test.

Model: LD-S602 LD-S602A
Lift weight: 3500/4000kg 3500/4000kg
Course length: 4000mm 4800mm
Lift high: 1800mm 2160mm
Course width: 610mm
Second lift high: 450mm
Motor power: 2.2KW
Rating oil pressure: 22Mpa
Air supply: 6-8kg/cm2
Power supply: AC220V/380V
Machine weight: 1760/1950Kg
Packing size: 4200/5000(L)*1950(W)*360(H)mm
