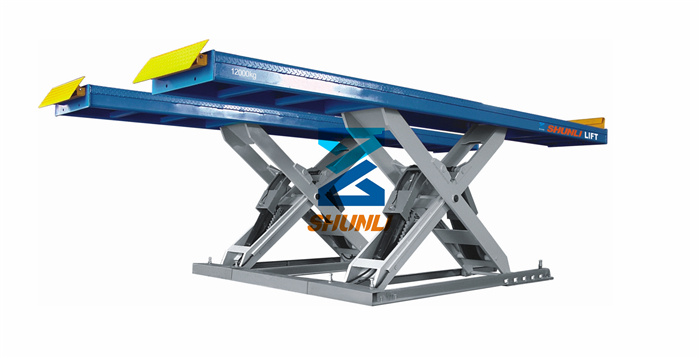

Scissor Lift for Heavy Truck 12t (SHL-Y-J-10T)
| Price: |
US $ 15400/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |

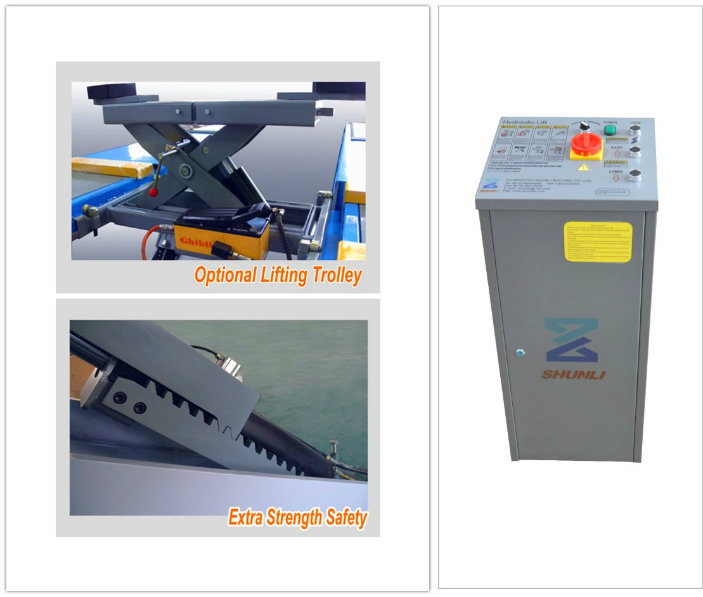

Product Specification1. Optional Lifting trolley2.Oil cylinder built-in explosion-proof device; 3.4 cylinder hydraulic balance system and mechanical safety with automatic unlock are equipped4.Unique conjoined X structure. Solid steel plate made of high precision numerical control design, overcome steel pipe rigidity. Not easy to rust, more reasonable and secure;
5.Super precision alignment scissor lift, double hidden design small space;
6.Automatically open the pneumatic rack insurance device when the lift down, super durable slide block;
7.Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity
8.Main hydraulic parts imported from Japan, Germany. High-quality, stable, safe and reliable
9.24V safety control circuit. Easy operation the electric control cabinet.
10.Shot blasting and high temperature baking powder coated surface finishTechnical parameter(optional lifting trolley) | Model | SHL-Y-J-10T | SHL-Y-J-15T | SHL-Y-J-20T |
| Lifting Capacity | 10000kg | 15000kg | 20000kg |
| Host Lifting Height | 1980mm | 1980mm | 1980mm |
| The Platform Length | 5860mm | 11720mm | 11720mm |
| The Platform Width | 850mm | 850mm | 850mm |
Quantity of Cylinder
(Automatic Balance ) | 4 | 8 | 8 |
| Motor | 5.5kw | 7.5kw | 7.5kw |
| Power | 380V,3PH | 380V,3PH | 380V,3PH |
| Air Pressure | 0.4-0.6mpa | 0.4-0.6mpa | 0.4-0.6mpa |
Product Details
Our team
Our Service

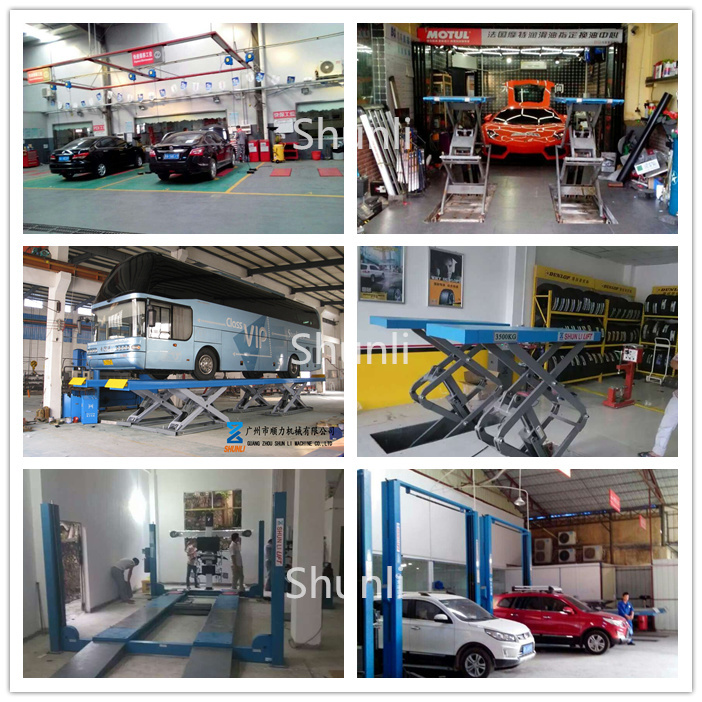

SHUNLI Factory's Advantage EquipmentThe new factory 20000M2, We have a world-class production equipment, including several Laser cutting machine, Robot welding machine, more than 20 sets punching machine, 490M blasting, painting, baking line and so on, the worker more than 130, each month we can production more than 1000 sets. Our users including the Mercedes-Benz 4S Shop, BMW 4S, VOLKSWAGEN 4S Shop and so on, CONTITRAC TR TIRES company, and the beauty car shop. Welcome to visit and contact with us for more detail, you will find the right product in here. Oversea customer:With advanced technology and prompt service, we build long business with world customers, such as Poland, Romania, Russia, Australia, New Zealand, Canada, Panama, Ecuador, Peru, Chile, Algeria, Kenya, South Africa, Zimbabwe, Philippines, Indonesia, Kazakhstan, Mongolia, Egypt, etc.

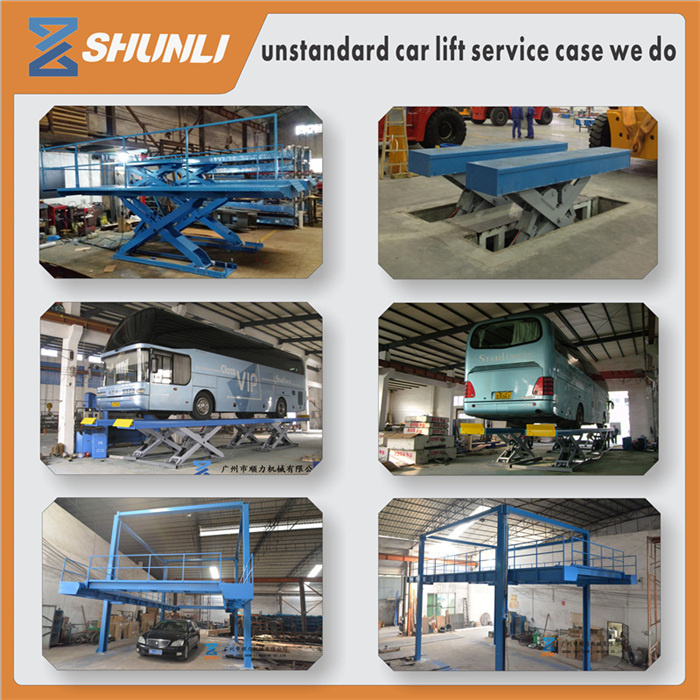

Now we are looking dealers all over the world, if you want to find the stable quality and reasonable price factory in China, contact us for more detail. More we can do SHUNLI have stronger technical Engineer team.We can design and produce one special lift to you.We can according your request to design and produce one for you. Like the special scissor lift the table. For truck, for forklift and parking lift.
CertificationSHUNLI company have more than 10 sets of standard model pass CE test and receive the certification. Which including two post lift 4T, 5T, scissor lift 3.2T, 3.5T, 4T, 5T. Model C240L, C250L, CD35T, CD40T, CD55T, CD5040TCC, CM40T, CX30TC, CX32T, CX40T Other certification of us :SGS certification, Test report certification, AAA Certification, GOOD FAITH DEMONS TRATION UNIT and so on.
Welcome to checking facebook link:
https://www.facebook.com/shunliautolift
| Prod Model: |
SHL-Y-J-10T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor: |
5.5kw |
| Lifting Height (Main Machine): |
1980mm |
| Main Lifting Capacity: |
10 Tons |
| Platform Length: |
5860mm |
| Type: |
Four Cylinder Hydraulic Lift |
| Certification: |
ISO |
| Design: |
Scissor |
| Brand: |
Shunli |
| Lifting Capacity: |
10000kg |
GUANGZHOU SHUNLI MACHINE Co., Ltd. is one of the leading companies that manufacture scissor lift two post lift, 4 post lift, auto-service equipments. It's a comprehensive company integrates R&D, production, promotion and trading with foreign companies.
The company is located in Huadu district Guangzhou, the South of China. It's only 15 minutes far from Guangzhou airport which is the biggest international airport in Asia. It's about 40 minutes from Huangpu, Guangzhou port. Our company covers an area of 30, 000 square meters, with 130 workers, including one design and technology team.
In 2013, the companies sales amount up to 30, 000, 000 RMB in the local market. We are OEM and cooperation with all trading company before. Our company supplies all kinds of auto-service equipments with high added value. We have exported our products to more than 70% countries in Europe, south America and north America, besides we have agent over 50% countries in Asia, Africa and Oceania. The sales of this year is expected to increase by 100% than last year. Our main products include scissors lifts, 2 post auto lifts, 4 post auto lifts, four wheel aligner, spray booth, auto collision repair system, wheel balancer and tire changer etc.
With advanced technology and equipment advantages, our company develops and manufactures a series of good products to cater for the need of the customers and make a contribution to solving. We specialize in technology research and development, design and manufacturing, installation, training and after sales service for car lift.
We gain all kinds of qualification certificate special SO9001 European C. E certification, Ten top brand scissor lift in China, Good quality Guarantee and so on. Your satisfy is our request, Welcome to visit our factory know more about us.
