SAE J1402 1/2 Inch Air Pressure Brake Rubber Hose

SAE J1402 1/2 Inch Air Pressure Brake Rubber Hose
Price: US $ 1.33-1.7/Meter
Min Order: 1000/Meter
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: SAE J1402
Product Name: Brake Hose with Fitting
Size: 1/2"
Color: Black
Low Expansion Meet: Hl
Whip Test: 35 Hours
Burst Pressure: 55 MPa
Used: Car Brake System
Car Make: All Car
Features: Safe and Reliable
Temperature Range: -40 to 100 Degree
Type: Brake Hose
Material: Rubber
Certification: DOT
Position: Front and Rear
Classification: Brake System
Drum Brakes Classification: Brake System

Product Description

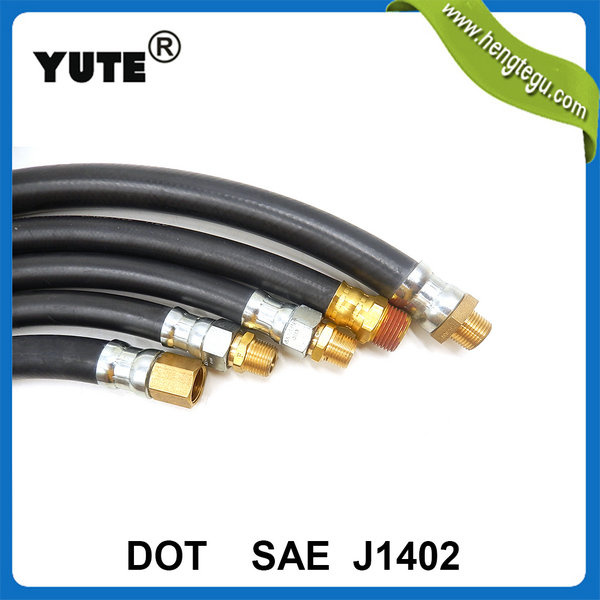

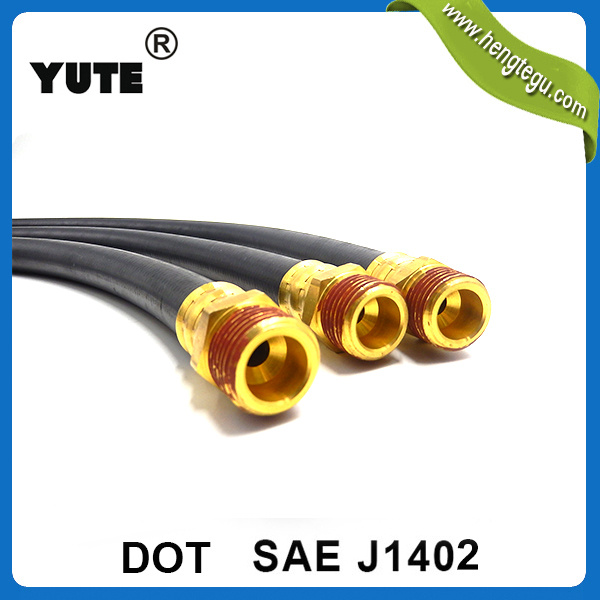

                SAE J1402 1/2 Inch Air Pressure Brake Rubber Hose

Applications:
use in automotive air brake systems including flexible connections from frame to axle, tractor to trailer, trailer to trailer .Widely used in compressed air brake system of large and medium-sized truck and buses.

Construction:
Tube:Black synthetic rubber
Reinforcement:High tensile braided fiber
Cover:Black ,red and blue ASTM IRM 903 oil-,ozone-resistant synthetic rubber compound

Working Temperature:-40ºC~+93ºC, -40 ºF~ +200ºF
Standard: SAE  J1402,FMVSS 106
Flexure Test ≥ 1,000,000 cycles

Sizes and technical parameters:
NoI.DO.DW.PB.P
inchmmTolerance
(mm)
inchmmTolerance
(mm)
BarPSIBarPSI
11/46.3±0.319/3215±0.515.522562900
25/168.0±0.443/6417±0.615.522562900
33/89.5±0.53/419±0.615.522562900
51/212.5±0.529/3223±0.715.522562900
65/816.0±0.61-1/1627±0.815.522562900

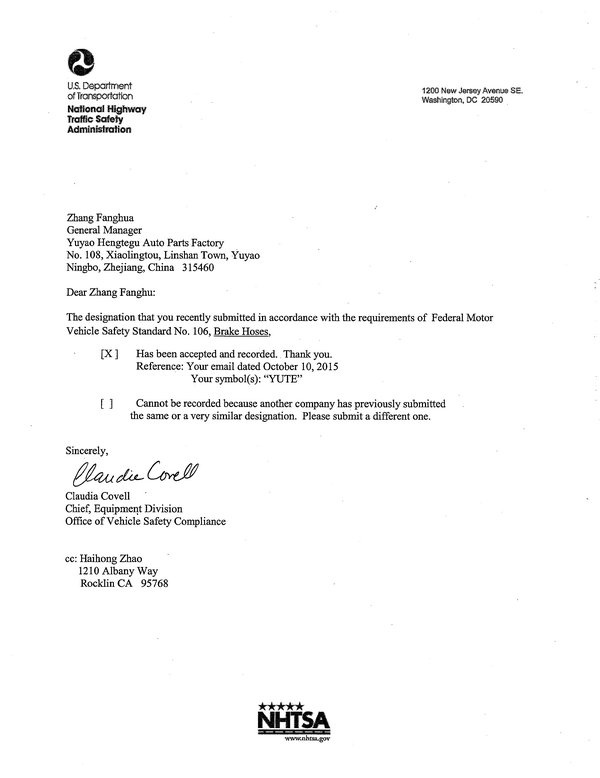

Dot approved




Contact Us:






Yuyao hengtegu auto parts factory is a professional hose designer and manufacturer. It's located in Ningbo, Zhejiang Province. The transportation is convenient, 40 minutes away from the Hangzhou International Airport and one and a half hours away from Ningbo shipping port. As a manufacturing enterprise, we are engaged in the research and development of rubber hose's design, manufacturer and sales. We have been trying our best to invest in our people, technology and resources to make it easier for you to do business with us.

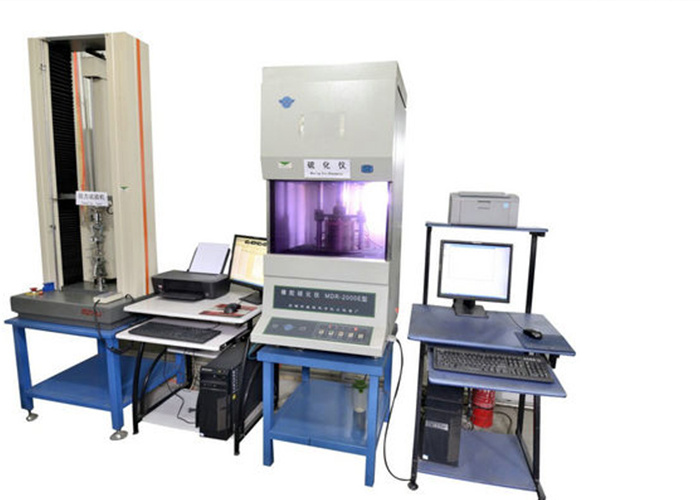

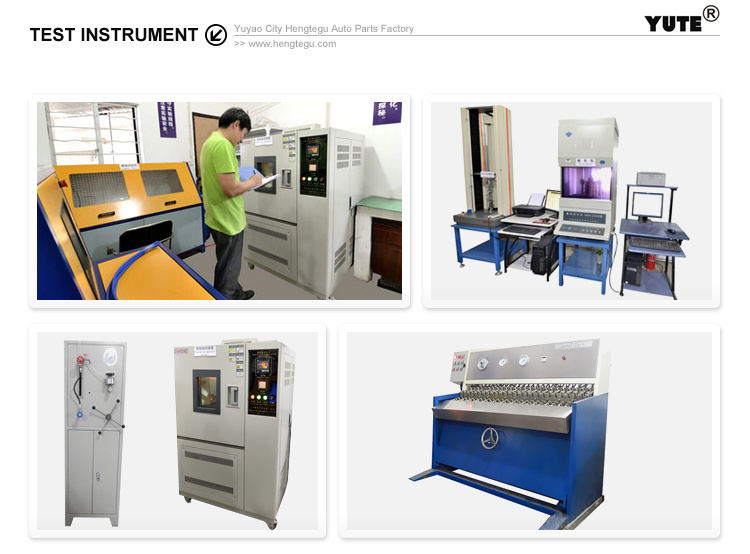

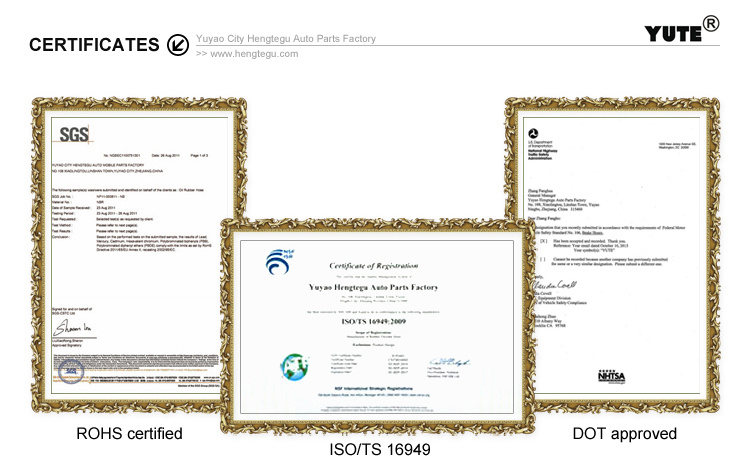

Now the factory owns sets of advanced cold rubber compound feed production lines and completed testing equipments. Our factory have passed the ISO/TS16949 quality management system certification, the products' quality meets SAE & DIN standard.

Main products: Fuel hose, air brake hose, hydraulic brake hose, power steering hose, rubber air hose, rubber air hose assembly and refrigerant charging hose, are widely used in the auto, engineering machinery, HAVC and other industries. Best quality and competitive price, we will try our best to provide you with good service. You are recognized for every dollar you spend with us.

Our business philosophy: Unitive and harmonious, hardworking and enterprising, regard technology as the core, offer cost-effective products to serve customers.
