S3 Float Fuel and Water Tank Level Sensor for Car Truck Boat

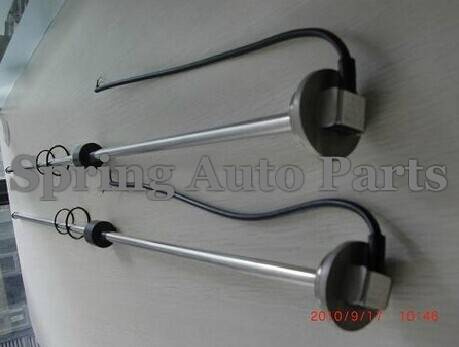

Name: S3 Float Fuel and Water Tank Level Sensor for Car Truck Boat
Brand: ibuyautoparts.com
SKU: 779999065
Availability: InStock
Rating: 4.8 (142 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Fuel and water level sensor

When ordering, please specify:

S3	Length	Output Signal	Assembly Way	Gasket	Alarm	Alarm Location	Length of Wire(lc)
Standard		0-190Ω	BSP 1 1/4"thread	NBR	NO		460mm
		240-33Ω					280mm
Customized			BSP 1 1/4"thread	NBR	YES
					NO

Connector is not included for the standard items. Please refer to the appendix specification table for option.

Materials:
The main body is made of SUS316 or SUS304 stainless steel
Length range:
100-3000 mm. You can search our recommended ones are at appendix B. It can also be customized according to your requirements.
Assembly:
BSP 1 1/4" thread twist-in, or NPT thread twist-in. Various types of flanges are available for fitting fuel tank if necessary
Accessories:
-38mmx2.6mm O-ring
-43mmx3.5mm O-ring
Protection rank: IP67
Applying the principle of magnetic field to control the reed on-off switch, featuring long using life, anti-vibration, anti-explosion, etc.
Rated Power: 125mW
Rated Current for alarm switch: 500mA
Wire: PVC material (PA corrugated pipe cover is optional)
Connector: Brand Delphi, Tyco or others is available according to customer's requirement.
Output signal: Resistance control signal, 0-190Ω, 240-33Ω, or customized as required; You can also choose current control signal, 0-20mA, 4-20mA or Voltage control signal, 0.5-4.5VDC, 0-5VDC
Precision range: 10-40mm
Operating temperature:
-40°c -+85°c

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Installation:	Bsp 1 1/4" Thread Twist-in
Output Signal:	0-190ohm 240-33ohm 0-5V 4-20mA
Resolution:	21 mm
Available Length:	100-3000mm
Warranty Period:	One Year
