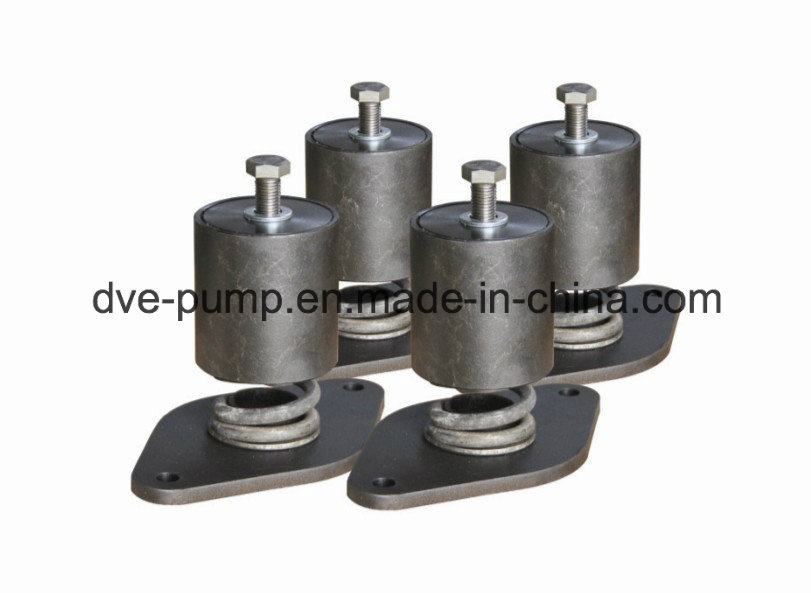

Rubber Vacuum System Shock Absorber
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
DESCRIPTIONS

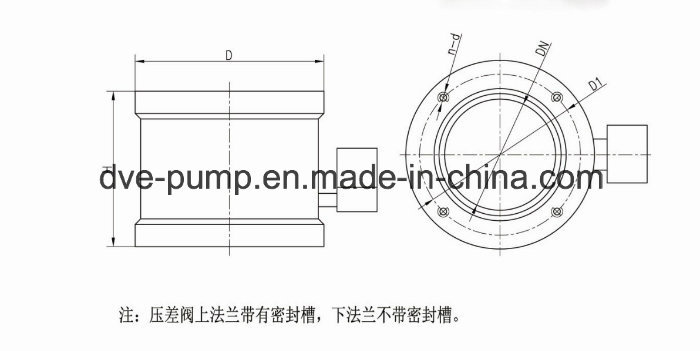

DDCY-Q series vacuum pressure solenoid valve, which is installed on a dedicated mechanical vacuum pump. Installed in the mechanical vacuum pump inlet, and synchronize the opening and closing of the pump.
When the pump stops working or power supply is suddenly interrupted, the valve can rely on the force of atmospheric pressure and vacuum valve plate closes automatically closed vacuum system to maintain its vacuum, and the air filled through the orifice valve into the pump chamber in order to avoid contamination of the vacuum pump oil countercurrent system.
SPECIFICATIONS
| MODEL | DN(mm) | SIZE(mm) | SPECIFICATION | MATERIAL |
| D | D1 | H | n-d | LEAK RATE(Pa .L/s) | OPEN&CLOSE TIME(s) | POWER(w) | SUPPLY | WEIGHT(kg) | VALVE BODY | SEAL |
| DDCY-20Q | 20 | 65 | 50 | 50 | 4-M6 | <6.7X10-2 | <3 | 14 | -220V 50Hz | 1.3 | CARBON STEEL | RUBBER |
| DDCY-25Q | 25 | 70 | 55 | 85 | 1.5 |
| DDCY-32Q | 32 | 78 | 64 | 95 | 2 |
| DDCY-40Q | 40 | 85 | 70 | 95 | 3 |
| DDCY-50Q | 50 | 110 | 90 | 100 | 4-M8 | 3.5 |
| DDCY-65Q | 65 | 125 | 105 | 110 | 5 |
| DDCY-80Q | 80 | 145 | 125 | 120 | 6.5 |
| DDCY-100Q | 100 | 170 | 145 | 140 | 8-M10 | 10 |
| DDCY-125Q | 125 | 195 | 170 | 165 | 15 |
| DDCY-150Q | 150 | 220 | 195 | 190 | 20 |
| DDCY-200Q | 200 | 275 | 250 | 240 | 12-M10 | 30 |
Applicable working medium: air and non-corrosive gases. Note: The uper flange on the pressure diffenence with a sealing groove, the lower flange without sealing groove | STM | DESCRIPTION | QTY | REMARK |
| 4 | BELT | 5 | * |
| 13 | O-RING | 2 | * |
| 14 | SHAFT SEAL | 2 | * |
| 14A | SHAFT SEAL | 3 | * |
| 16 | LONG SHAFT SLEEVE | 1 | * |
| 17 | O-RING | 5 | * |
| 18 | BEARING | 2 | ** |
| 21 | GAS BALLAST VALVE | 1 | * |
| 25 | SHORT SHAFT SLEEVE | 2 | * |
| 29 | O-RING | 1 | * |
| 32 | KEY | 2 | ** |
| 34 | KEY | 1 | ** |
| 35 | KEY | 2 | ** |
| 45 | VACUUM RESERVOIR OIL VALVE | 1 | ** |
| 46 | OIL FILTER UNIT | 1 | * |
| 51 | O-RING | 1 | * |
| 58 | MIDDLE SHAFT SLEEVE | 2 | * |
| 59 | O-RING | 1 | * |
| 63 | O-RING | 1 | * |
| 67 | O-RING | 1 | * |
| 87 | O-RING | 1 | * |
| 88 | O-RING | 1 | * |
| 89 | SOLENIOD VALVE | 1 | * |
| 92 | O-RING | 1 | * |
| 100 | POPPET VALVE | 3 | * |
| 100C | VALVE CAP | 6 | * |
| 100D | SPRING | 18 | * |
| 100E | POPPET VALVE | 6 | * |
| 100F | VALVE DECK | 3 | * |
| 100G | O-RING | 3 | * |
| 103 | O-RING | 2 | * |
DESCRIPTIONSVacuum bellows for connection between the device and piping, pipe and tubing. It plays damping, disinfection and compensation due to the vacuum bellows unique features, it is widely used in industrial fields of scientific research, aerospace, aviation, petroleum, chemical, pharmaceutical, electronics, electrical, vacuum processing. SPECIFICATION| Size | Waveforms |
| Φ50 | 3 | 6 | 9 | 12 |
| Φ80 |
| Φ100 |
| Φ150 |
| Φ200 |
| Φ250 |
| Φ300 |
| Φ400 |
| Φ500 |
| Φ600 |
| Φ700 |
| Φ800 |
| Φ900 |
| Φ1000 |
| Φ1200 |
| Φ1400 |
| Φ1600 |
| Φ1800 |
| Φ2000 |

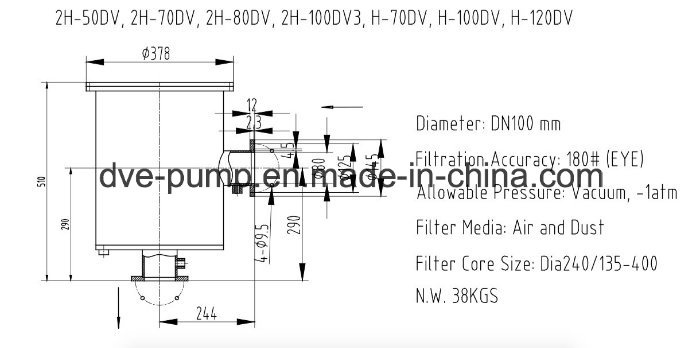

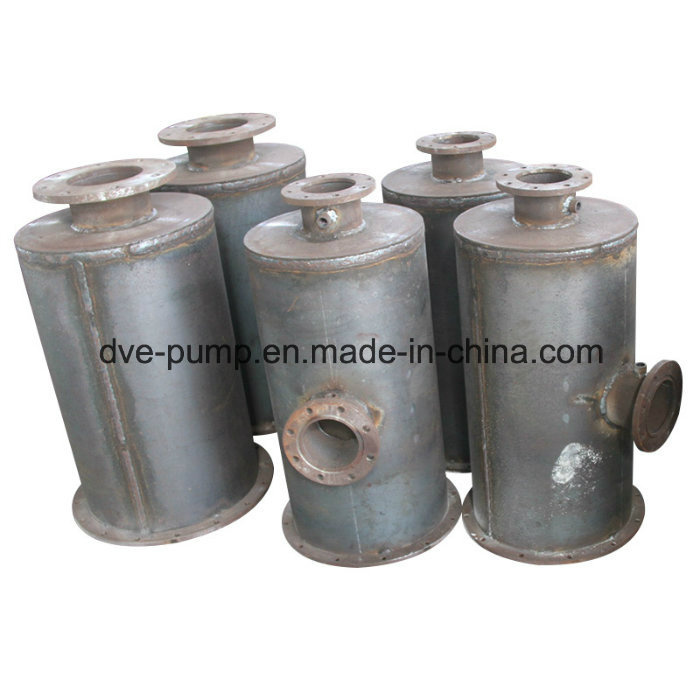

NOTE:Vacuum Bellows be devided to loose flanges and without loose flange, the size, length and waveforms can also be customized according to customer's requirements. IVF VACUUM PUMP INLET OIL MIST FILTERFilter material is stainless steel woven mesh and stainless steel punching hole mesh, which is used in preceding stage dewater in heavy oil combustion system, can also be used for chemical liquid filtration, precision is 100 umFilter element material is stainless steel round microporous mesh, apply to the pretreatment and post-treatment system of electronic, petroleum, chemical, pharmaceutical, food and other industrial departments. To further purify water quality which contains low suspended impurities (less than 2 ~ 5 mg/L).

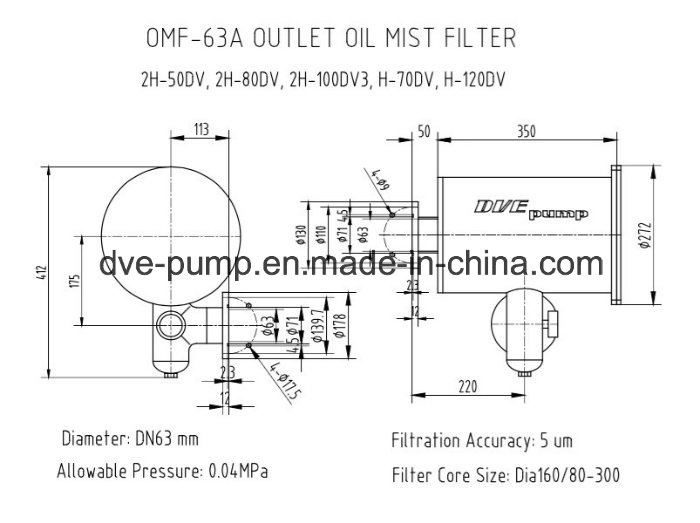

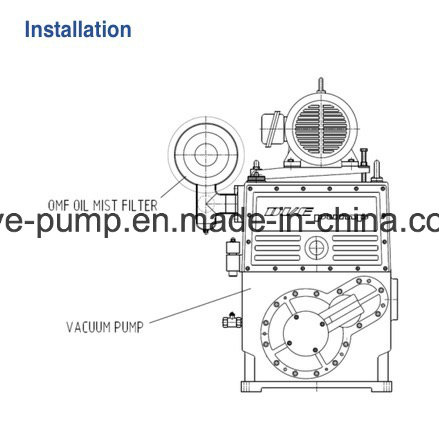

OMF VACUUM PUMP OUTLET OIL MIST FILTER My company developed OMF series outlet oil mist filter for rotary piston vacuum pumps and rotary vane vacuum pumps. These oil mist filters can filtrate oil mist effectively which discharged by vacuum pumps. Reducing environment pollution significantly and reducing the oil consumption effectively. OMF oil mist filters have by pass valves and exhaust pressure display. If exhaust pressure is too high, by pass valve will be opened automatically for reducing pressure. Compared to other general oil mist filters, OMF oil mist filters are more secure, more reliable. The outer layer of filter core has removable cloth for replacing or washing when the cloth is dirty, greatly extending the life of filter core. SPECIFICATIONS| Model | OMF-40 | OMF-50 | OMF-63 | OMF-80 | OMF-100 | OMF-125 | OMF-150 |
| Outlet Dia (mm) | DN40 | DN50 | DN63 | DN80 | DN100 | DN125 | DN150 |
| Rated Gas Flow (L/S) | 30 | 60 | 150 | 220 | 300 | 450 | 600 |
| By Pass Valve Working Pressure (MPa) | Relative Pressure 0.025 Absolute Pressure 0.125 |
| Max Discharge Pressure (MPa) | Relative Pressure 0.04 Absolute Pressure 0.14 |
| Connected Vacuum Pump Model | 2H-15DVA 2H-15DVW H-25DVA H-25DVW | 2H-30DV 2H-45DVA H-50DV H-60DVA | 2H-50DV 2H-70DV 2H-80DV 2H-100DV3 H-70DV H-100DV H-120DV | 2H-100DV 2H-120DV 2H-160DV H-150DV H-160DV H-215DV | 2H-150DV 2H-225DV H-225DV H-300DV | 2H-300DV H-400DV 2H-340 H-450 | 2H-450 H-600DV |
| Net Weight (kg) | 13 | 17 | 23 | 35 | 60 | 80 | 110 |
ADVANTAGE
1. High vacuum, high exhausting efficiency in medium or high vacuum, wide working range, obvious energy-saving results.
2. Integrated rack, compact structure, small required space.
3. High automation, simple operation, easy maintenance, safe, reliable and durable running.
4. To customize a special pump system as per the specific needs of the end user.
APPLICATION
Widely used in vacuum coating, vacuum metallurgy, vacuum heat treatment, vacuum drying, vacuum impregnation, vacuum strainer, poly-silicon production, aerospace simulation and so on.
Sea Port: Ningbo/Shanghai, China
Standard: CE Mark, Spare Parts Of High Level
Delivery: Normally according to our factory production schedule, but we can follow your first order time
Warranty: If pump appear quality problems, free replacements of spare parts will be offered within one year
WE CAN PROVIDE YOU
1. On-time Delivery, with More Choice
2. Perfect Technical Support
3. Customized Vacuum Solutions and Service
4. Samples Available
5. Long Quality Guarantee
6. Fast Response to Customers' Feedback in 12 hours

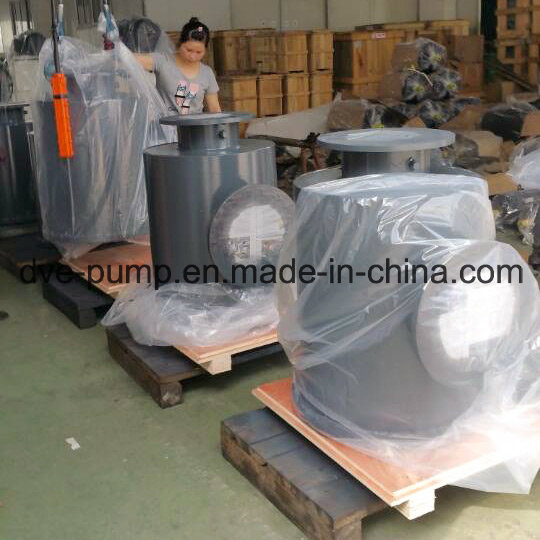

OVERVIEWS OF FACTORY:
DEVELOPMENT VACUUM EQUIPMENT CO., LTD
ADD:DONGGANG INDZONE, TAIZHOU, ZHEJIANG, CHINA PC: 317106
TEL:+86-576-83598308 FAX:+86-576-83598309
| Prod Model: |
DN150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE, ISO9001 |
| Material: |
Ss/Iron |
| Sea Port: |
Ningbo/ Shanghai |
| Delivery Time: |
7-30 Days |
| Part: |
Air Spring |
| Position: |
Rear |
| Type: |
Gas-Filled |
| Spring Type: |
Air Spring |
| Spring Material: |
Rubber |
| Structure: |
Double Cylinder |
| Damping Force Direction: |
Single Effect |
DVE pumps are widely used in electronics, electrical, metallurgy, coating, ceramics, pharmaceuticals, chemical, papermaking industry, vacuum heat treatment, vacuum drying and impregnation for transformer, freeze-drying, energy industry, aerospace, or other fields.
As a plant, we specialized in design and manufacture vacuum pumps, vacuum systems for more than 20 years, with professional R&D team, Sino-US technical cooperation, we obtain CE certificate and manage our production strictly under ISO9001: 2008 Quality Management system. Lots of customers cooperated with us for more than 10 years, for example:
ALD Industries and Montagepark
Staaken GmbH
Starren Strasse 53-63
13581 Berlin, Germany
Dekker Vacuum Technologies, Inc
935 S. Woodland Ave. Michigan City, IN 46360,
United States
Sea Port: Ningbo/Shanghai, China
Standard: CE Mark, Spare Parts Of High Level
Delivery: Normally according to our factory production schedule, but we can follow your first order time
Warranty: If pump appear quality problems, free replacements of spare parts will be offered within one year
WE CAN PROVIDE YOU
1. On-time Delivery, with More Choice
2. Perfect Technical Support
3. Customized Vacuum Solutions and Service
4. Samples Available
5. Long Quality Guarantee
6. Fast Response to Customers' Feedback in 12 hours
DVE - Where high quality is standard, responsibility lies.
