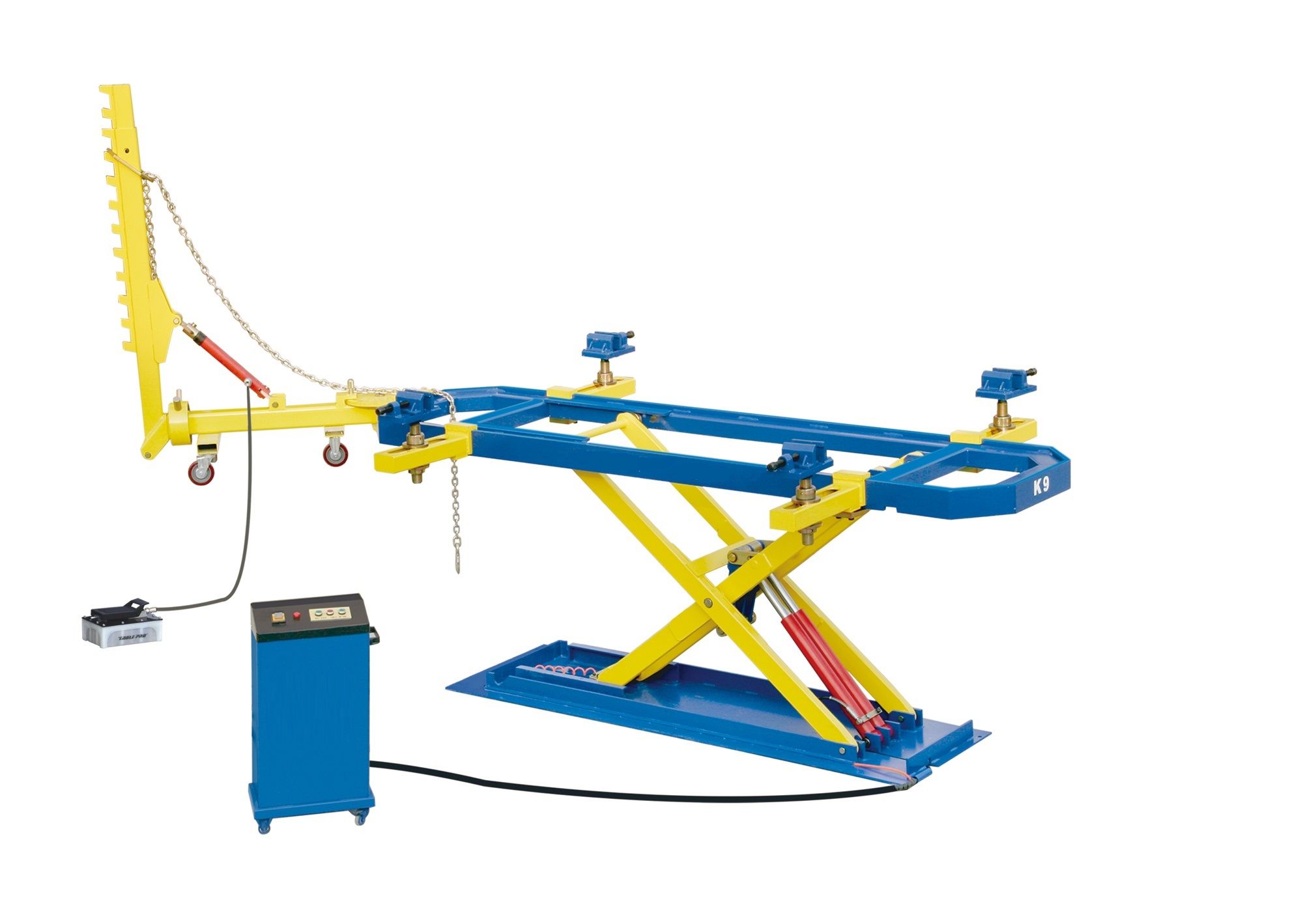

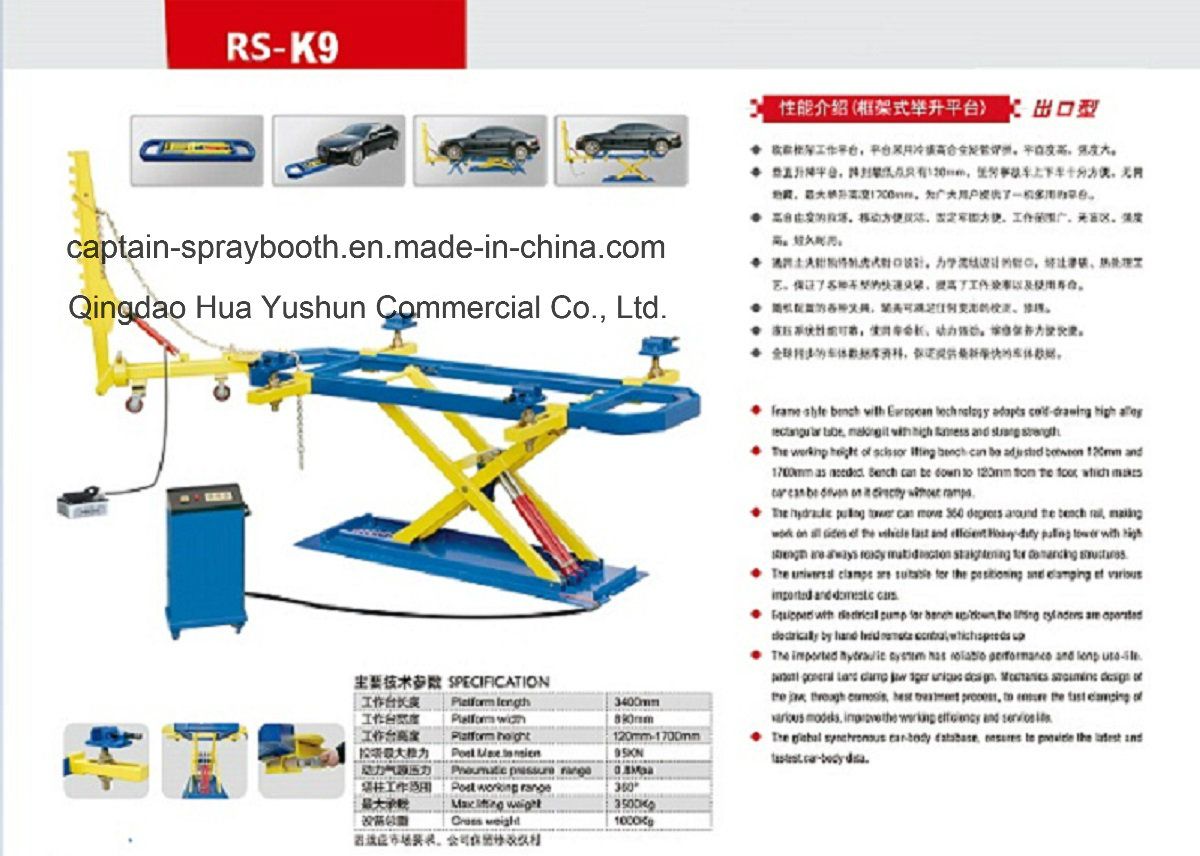

RS-K9 Cheap But High Quality Car Body Frame Bench
| Price: |
US $ 4800/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Specifications | Platform length | 3400mm |
| | Platform width | 890mm |
| | Platform height | 120-1700mm |
| | Post Max.tension | 95KN |
| | Pneumatic pressure range | 0.8Mpa |
| | Post working range | 360° |
| | Max.lifting weight | 3500Kg |
| | Gross weight | 1000Kg |
Function |
Frame-style bench with European technology adopts cold-drawing high alloy rectangular tube, making it with high flatness and strong strength.

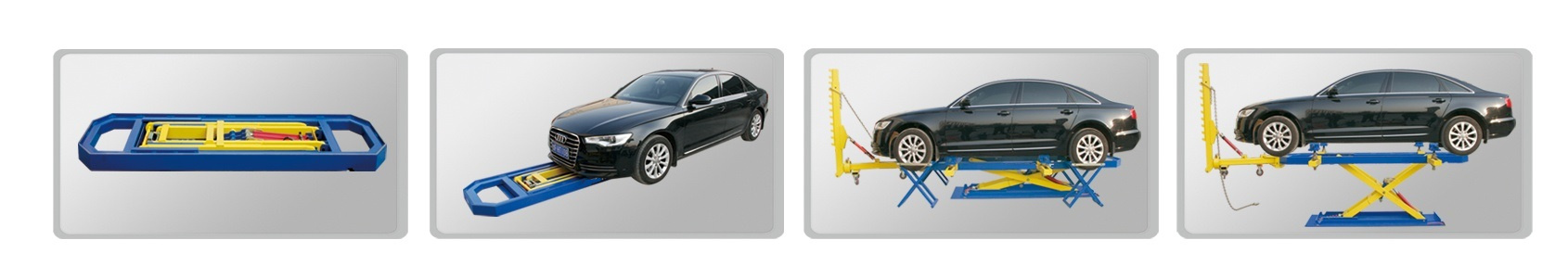

The working height of scissor lifting bench can be adjusted between 120mm and 1700mm as needed. Bench can be down to 120mm from the floor, which makes car can be driven on it directly without ramps.

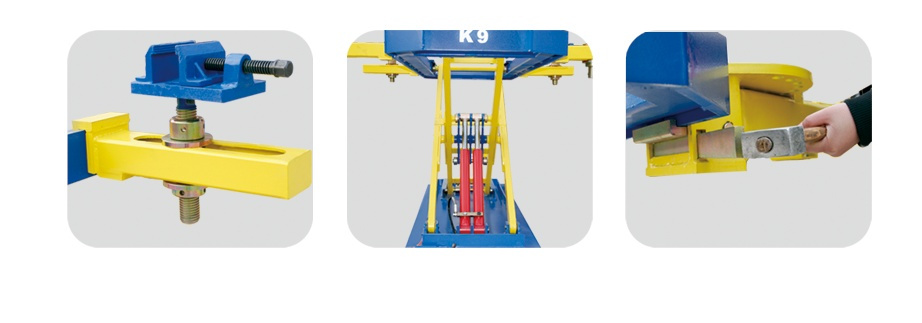

The hydraulic pulling tower can move 360 degrees around the bench rail, making work on all sides of the vehicle fast and efficient.Heavy-duty pulling tower with high strength are always ready multi direction straightening for demanding structures.
The universal clamps are suitable for the positioning and clamping of various imported and domestic cars.
Equipped with electrical pump for bench up/down,the lifting cylinders are operated electrically by hand-held remote control,which speeds up
The imported hydraulic system has reliable performance and long use-life. patent general Lord clamp jaw tiger unique design. Mechanics streamline design of the jaw, through osmosis, heat treatment process, to ensure the fast clamping of various models, improve the working efficiency and service life.
The global synchronous car-body database, ensures to provide the latest and fastest car-body data. |
| Prod Model: |
RS-K9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Platform Length: |
3400mm |
| Platform Width: |
890mm |
| Platform Height: |
120-1700mm |
| Post Max.Tension: |
95kn |
| Pneumatic Pressure Range: |
0.8MPa |
| Max.Lifting Weight: |
3500kg |
| Type: |
Flatbed-type |
| Max. Lifting Capacity: |
3.5T |
| Certification: |
CE |
| Condition: |
New |
