Silicone Straight Coupler Hose

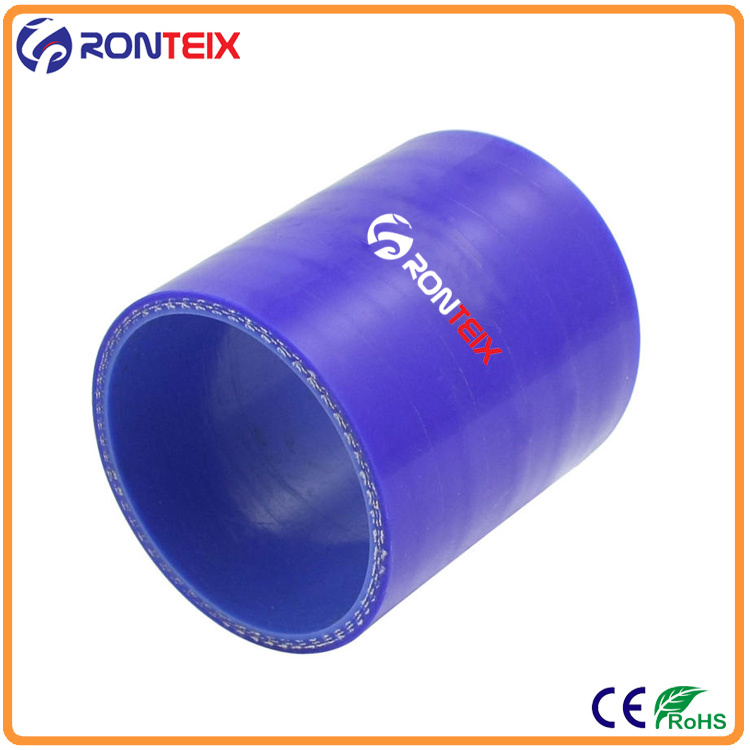

High Temp 4-ply Reinforced Straight Silicone Coupler Hose
Rontexi Silicone Hose features 4-ply reinforced high temperature material, for which meet or exceed SAEJ20 Standard. Ronteix Silicone Hose is used by professionals in industries such as high performance racing vehicles, commercial truck and bus, Marine, agricultural and off highway vehicles, turbo diesel, food and beverage, and general manufacturing industries.

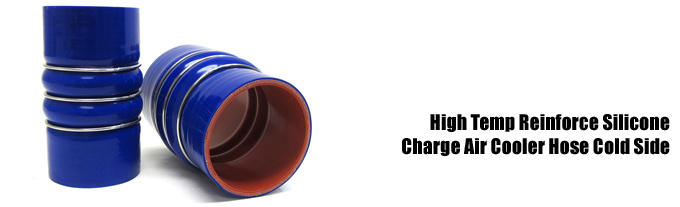

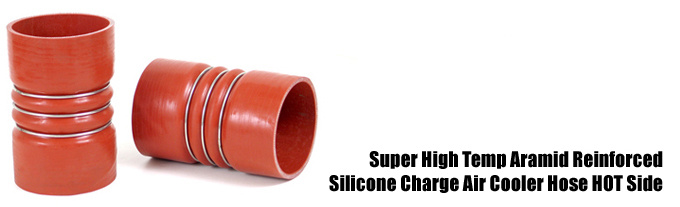

Ronteix silicone hose is available in Straight Coupler , 1 foot tube , 3 foot coolant tube , Charge Air Cooler Hose (CAC) , hump coupler , reducer coupler hose , 45 Degree Elbow Coupler and 45 Degree Elbow Reducer , 90 Degree Elbow Coupling and 90 Degree Reducing Elbow . HPS also carry the performance silicone vacuum hoses and Silicone Heater Hose. Ronteix silicone hose is available in both standard inches and hard-to-find Metric sizes. Ronteix Stainless Steel T-Bolt Clamps are available to match with the silicone hoses.
| Place of Origin: | China (Mainland) | Brand Name: | Ronteix | Model Number: | as below |
| Material: | 100% silicone rubber +polyester or Nomex | color: | black, blue, red, pink, orange,green,purple,yellow,white | Certification: | ISO 9001 |
| Length: | 50mm-2000mm | application: | turbo boost/racing /tuning/water/coolant/air intake | Thickness: | 4.0-6.0mm |
| Quality guarantee: | 5 years | Ply: | 3-5 | Bore: | 3mm-150mm |
| Service: | OEM, Custom size, Logo |
Silicone Coupler Hose Spec.
Remark
Silicone hose is NOT compatible with fuel or oil.
Silicone hose is compatible with water or anti-freeze such as coolant.
| ID (mm) | Length | Reinforced Layer | Part Number (Black) | Part Number (Blue) |
| 1" (25mm) | 3" | 4-ply | HTSC-100-BLK | HTSC-100-BLUE |
| 1 1/8" (28mm) | 3" | 4-ply | HTSC-112-BLK | HTSC-112-BLUE |
| 1 3/16" (30mm) | 3" | 4-ply | HTSC-118-BLK | HTSC-118-BLUE |
| 1 1/4" (32mm) | 3" | 4-ply | HTSC-125-BLK | HTSC-125-BLUE |
| 1 3/8" (35mm) | 3" | 4-ply | HTSC-138-BLK | HTSC-138-BLUE |
| 1 1/2" (38mm) | 3" | 4-ply | HTSC-150-BLK | HTSC-150-BLUE |
| 1 5/8" (41mm) | 3" | 4-ply | HTSC-162-BLK | HTSC-162-BLUE |
| 1 3/4" (45mm) | 3" | 4-ply | HTSC-175-BLK | HTSC-175-BLUE |
| 1 7/8" (48mm) | 3" | 4-ply | HTSC-187-BLK | HTSC-187-BLUE |
| 2" (51mm) | 3" | 4-ply | HTSC-200-BLK | HTSC-200-BLUE |
| 2 1/8" (54mm) | 3" | 4-ply | HTSC-212-BLK | HTSC-212-BLUE |
| 2 1/4" (57mm) | 3" | 4-ply | HTSC-225-BLK | HTSC-225-BLUE |
| 2 3/8" (60mm) | 3" | 4-ply | HTSC-238-BLK | HTSC-238-BLUE |
| 2 1/2" (63mm) | 3" | 4-ply | HTSC-250-BLK | HTSC-250-BLUE |
| 2 9/16" (65mm) | 3" | 4-ply | HTSC-256-BLK | HTSC-256-BLUE |
| 2 11/16" (68mm) | 3" | 4-ply | HTSC-268-BLK | HTSC-268-BLUE |
| 2 3/4" (70mm) | 3" | 4-ply | HTSC-275-BLK | HTSC-275-BLUE |
| 2 7/8" (73mm) | 3" | 4-ply | HTSC-287-BLK |
|
| 3" (76mm) | 3" | 4-ply | HTSC-300-BLK | HTSC-300-BLUE |
| 3 1/8" (80mm) | 3" | 4-ply | HTSC-312-BLK | HTSC-312-BLUE |
| 3 1/4" (83mm) | 3" | 4-ply | HTSC-325-BLK | HTSC-325-BLUE |
| 3 3/8" (86mm) | 3" | 4-ply | HTSC-338-BLK |
|
| 3 1/2" (89mm) | 3" | 4-ply | HTSC-350-BLK | HTSC-350-BLUE |
| 3 5/8" (92mm) | 3" | 4-ply | HTSC-362-BLK |
|
| 3 3/4" (95mm) | 3" | 4-ply | HTSC-375-BLK | HTSC-375-BLUE |
| 4" (102mm) | 3" | 4-ply | HTSC-400-BLK | HTSC-400-BLUE |
| 4 1/8" (105mm) | 3" | 4-ply | HTSC-412-BLK | HTSC-412-BLUE |
| 4 1/4" (108mm) | 3" | 4-ply | HTSC-425-BLK | HTSC-425-BLUE |
| 4 1/2" (114mm) | 3" | 4-ply | HTSC-450-BLK | HTSC-450-BLUE |
| 5" (127mm) | 3" | 4-ply | HTSC-500-BLK | HTSC-500-BLUE |
| 1" (25mm) | 4" | 4-ply | HTSC-100-L4-BLK | HTSC-100-L4-BLUE |
| 1 1/4" (32mm) | 4" | 4-ply | HTSC-125-L4-BLK | HTSC-125-L4-BLUE |
| 1 3/8" (35mm) | 4" | 4-ply | HTSC-138-L4-BLK | HTSC-138-L4-BLUE |
| 1 1/2" (38mm) | 4" | 4-ply | HTSC-150-L4-BLK | HTSC-150-L4-BLUE |
| 1 3/4" (45mm) | 4" | 4-ply | HTSC-175-L4-BLK | HTSC-175-L4-BLUE |
| 2" (51mm) | 4" | 4-ply | HTSC-200-L4-BLK | HTSC-200-L4-BLUE |
| 2 1/4" (57mm) | 4" | 4-ply | HTSC-225-L4-BLK | HTSC-225-L4-BLUE |
| 2 3/8" (60mm) | 4" | 4-ply | HTSC-238-L4-BLK | HTSC-238-L4-BLUE |
| 2 1/2" (63mm) | 4" | 4-ply | HTSC-250-L4-BLK | HTSC-250-L4-BLUE |
| 2 3/4" (70mm) | 4" | 4-ply | HTSC-275-L4-BLK | HTSC-275-L4-BLUE |
| 3" (76mm) | 4" | 4-ply | HTSC-300-L4-BLK | HTSC-300-L4-BLUE |
| 3 1/8" (80mm) | 4" | 4-ply | HTSC-312-L4-BLK | HTSC-312-L4-BLUE |
| 3 1/2" (89mm) | 4" | 4-ply | HTSC-350-L4-BLK | HTSC-350-L4-BLUE |
| 4" (102mm) | 4" | 4-ply | HTSC-400-L4-BLK | HTSC-400-L4-BLUE |
| 4 1/8" (105mm) | 4" | 4-ply | HTSC-412-L4-BLK | HTSC-412-L4-BLUE |
| 4 1/4" (108mm) | 4" | 4-ply | HTSC-425-L4-BLK | HTSC-425-L4-BLUE |
| 4 5/16" (110mm) | 4" | 4-ply | HTSC-432-L4-BLK | HTSC-432-L4-BLUE |
| 4 1/2" (114mm) | 4" | 4-ply | HTSC-450-L4-BLK | HTSC-450-L4-BLUE |
| 5" (127mm) | 4" | 4-ply | HTSC-500-L4-BLK | HTSC-500-L4-BLUE |
| 1" (25mm) | 6" | 4-ply | HTSC-100-L6-BLK | HTSC-100-L6-BLUE |
| 1 1/4" (32mm) | 6" | 4-ply | HTSC-125-L6-BLK | HTSC-125-L6-BLUE |
| 1 3/8" (35mm) | 6" | 4-ply | HTSC-138-L6-BLK | HTSC-138-L6-BLUE |
| 1 1/2" (38mm) | 6" | 4-ply | HTSC-150-L6-BLK | HTSC-150-L6-BLUE |
| 1 3/4" (45mm) | 6" | 4-ply | HTSC-175-L6-BLK | HTSC-175-L6-BLUE |
| 2" (51mm) | 6" | 4-ply | HTSC-200-L6-BLK | HTSC-200-L6-BLUE |
| 2 1/4" (57mm) | 6" | 4-ply | HTSC-225-L6-BLK | HTSC-225-L6-BLUE |
| 2 3/8" (60mm) | 6" | 4-ply | HTSC-238-L6-BLK | HTSC-238-L6-BLUE |
| 2 1/2" (63mm) | 6" | 4-ply | HTSC-250-L6-BLK | HTSC-250-L6-BLUE |
| 2 3/4" (70mm) | 6" | 4-ply | HTSC-275-L6-BLK | HTSC-275-L6-BLUE |
| 3" (76mm) | 6" | 4-ply | HTSC-300-L6-BLK | HTSC-300-L6-BLUE |
| 3 1/2" (89mm) | 6" | 4-ply | HTSC-350-L6-BLK | HTSC-350-L6-BLUE |
| 4" (102mm) | 6" | 4-ply | HTSC-400-L6-BLK | HTSC-400-L6-BLUE |
| 4 1/4" (108mm) | 6" | 4-ply | HTSC-425-L6-BLK | HTSC-425-L6-BLUE |
| 4 1/2" (114mm) | 6" | 4-ply | HTSC-450-L6-BLK | HTSC-450-L6-BLUE |
| 5" (127mm) | 6" | 4-ply | HTSC-500-L6-BLK | HTSC-500-L6-BLUE |
