| Prod Model: |
23.5-25 |
| T.D. (mm): |
33 |
| S.R.: |
19.50/2.5 |
| S.W. (mm): |
595 |
| O.D. (mm): |
1615 |
| Type: |
Tubeless |
| Diameter: |
≥22" |
| Tire Design: |
Diagonal Tire |
| Certification: |
CE |
| Tread Pattern: |
Transverse Pattern |
Product Description

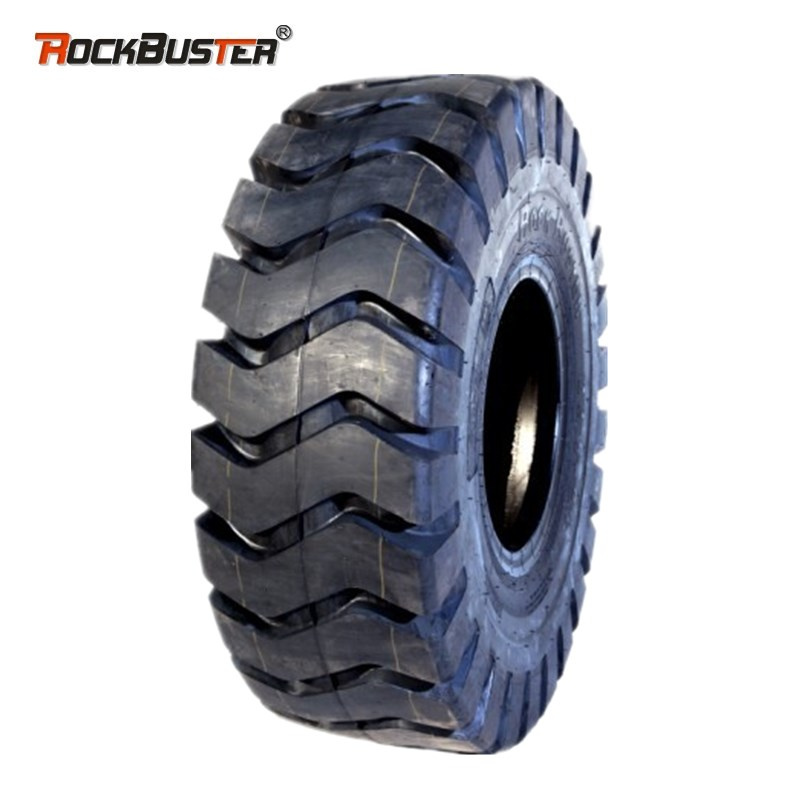

Rockbuster off road L3 E3 23.5-25 otr tyre
Characteristic:H108A L-3/E-3 GENERAL BLOCK (S TREAD)
Specially desinged for cut and heat resistant compound.
Regular type of tread pattern suitable fo rhard rock surface and haulage service.
Technical parameters:| Size | PR | T.D. | S.R. | S.W.
(mm) | O.D.
(mm) | Max Loading (kg) | Pressure (kpa) | Type | Code |
| (mm) | 50km/h | 10km/h | 50km/h | 10km/h |
| 14.00-24 | 16 | 25 | 10.0 | 375 | 1370 | 4000 | 7300 | 375 | 550 | TT/TL | H108A L-3 E-3 |
| 20 | 4625 | 8500 | 475 | 700 |
| 24 | 5150 | 9500 | 575 | 850 |
| 28 | 5600 | 10000 | 650 | 925 |
| 16.00-24 | 20 | 28 | 11.25/2.0 | 430 | 1495 | 5450 | 9750 | 400 | 550 |
| 24 | 6000 | 10600 | 475 | 650 |
| 28 | 6700 | 11500 | 575 | 750 |
| 32 | 7300 | 12500 | 650 | 875 |
| 17.5-25 | 16 | 28 | 14.00/1.5 | 445 | 1350 | 4250 | 7300 | 300 | 475 |
| 20 | 5000 | 8250 | 400 | 575 |
| 20.5-25 | 20 | 30 | 17.00/2.0 | 520 | 1490 | 6000 | 9500 | 325 | 450 |
| 24 | 6700 | 10300 | 400 | 525 |
| 28 | 7500 | 11500 | 475 | 625 |
| 23.5-25 | 20 | 33 | 19.50/2.5 | 595 | 1615 | 7300 | 10900 | 300 | 375 |
| 24 | 8000 | 12500 | 350 | 475 |
| 28 | 8750 | 13600 | 400 | 550 |
| 26.5-25 | 28 | 35 | 22.00/3.0 | 675 | 1750 | 10000 | 15500 | 350 | 475 | TL |
| 32 | 11200 | 17000 | 425 | 550 |
| 29.5-25 | 28 | 38 | 25.00/3.5 | 750 | 1875 | 11500 | 17500 | 325 | 425 |
| 34 | 12500 | 19000 | 375 | 500 |
| Size | PR | T.D. | S.R. | S.W.
(mm) | O.D.
(mm) | Max Loading (kg) | Pressure (kpa) | Type | Code |
| (mm) |
| 16/70-24 | 14 | 24.5 | 13(SDC) | 410 | 1175 | 5600 | 450 | TT | H108A
L-3 E-3 |
| 16/70-20 | 14 | 24 | 13(SDC) | 410 | 1075 | 5150 | 450 |
| 18 | 5800 | 550 |
| 14/90-16 | 10 | 16 | 7.0N | 270 | 882 | 1530 | 350 |
| 12.00-16 | 12 | 17 | 6.50H | 255 | 890 | 1600 | 420 |
| 8.25-16 | 8 | 16 | 6.5 | 235 | 865 | 1530 | 300 |
| 7.50-16 | 8 | 16 | 5.5 | 215 | 815 | 750 | 150 |
Company Introduction:
Qingdao Honghua Tyre Factory established in October, 1994. With excellent manufacturing machines and a whole
team of first-class professional technicians, Honghua has developed itself into a Top Five professional bias tyre
factory in China. With over 800 staffs, and covering 160,000 square meters, we have reached an annual output
value of over $80 million. Products range covers OTR tyre, Industrial tyre, Solid tyre, Military tyre, Mining tyre,
Agricultural tyre, Speciality tyre and Truck & Trailer tyre etc.. With DOT, ISO, CCC, ECE, REACH, SMITHERS,
BV certificates. Reputed brands: ROCKBUSTER & ROADBUSTER.

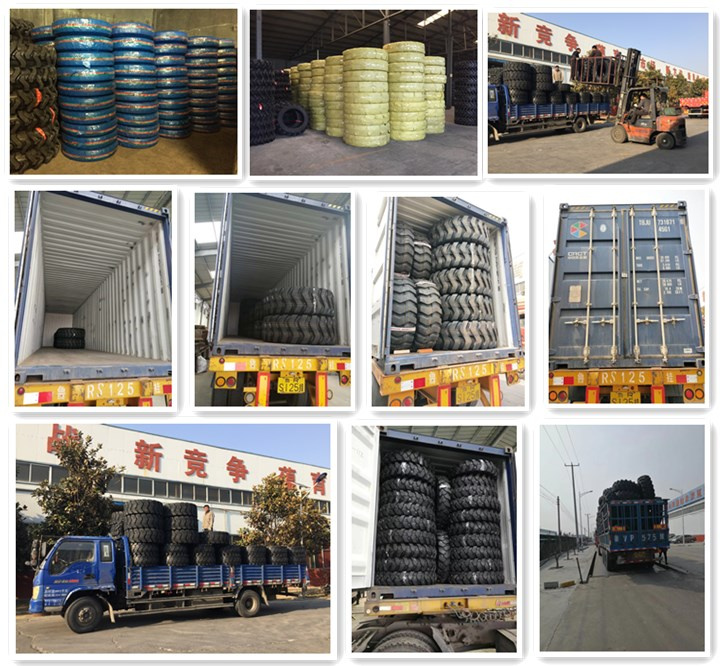

Production & Warehouse:
Shipments Details:
Welcome to visit us at the following exhibiitons in the year of 2018. | EXPO NAME | DATE | BOOTH # | EXPO ADDRESS |
| INAPA 2018 | 3.22-3.24 | B1 HALL E2-11 | JKT, INDONESIA |
| CTF 2018 | 4.9-4.11 | 2#6L22 | Qingdao, CHINA |
| Canton Fair | 4.15-4.19 | 6.1K19 | Guangzhou, CHINA |
| Tires & Rubber 2018 | 4.24-4.27 | FF060 | Moscow, RUSSIA |
| Automechanka Dubai 2018 | 5.1-5.3 | S3-D48 | Dubai, UAE |
| ChinaGRTAE 2018 | 5.15-5.17 | E1-37 | Guangrao, CHINA |
| Latin American & Caribbean Tyre Expo | 6.6-6.8 | D197 | Panama, PA |
| Pneushow 2018 | 6.26-6.28 | 5/I-28/30 | Sau Paulo, BRAZIL |
| CITEXPO 2018 | 8.20-8.22 | 1155 | Shanghai, CHINA |
| Canton Fair | 10.15-10.19 | Pending | Guangzhou, CHINA |
| Sema Show 2018 | 10.30-11.2 | Pending | Las Vegas, USA |
| Iran Autoparts | 11.13-11.16 | Pending | Tehran, IRAN |
| Automechanka Shanghai 2018 | 11.28-12.1 | Pending | Shanghai, CHINA |
RFQ:1. Delivery time: Depending on the order quantity.
2. Packing: Nude. Or if you need packing, should pay the package cost.
3. Brands: Rockbuster & Roadbuster.
4. OEM service: Available.
5. Tyre Guarantee: Available.
6. Exclusive agency: We will provide comprehensive market and price protection to our exclusive agent.
