Rim Straightening Machine

Name: Rim Straightening Machine
Brand: ibuyautoparts.com
SKU: 814299635
Availability: InStock
Rating: 4.5 (26 reviews)

Price:	US $ 1800-2015/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BR-85
Rim Grind Machine:	10"-26"(660mm)
Type Of Rim:	It Repair Alloy/Chrome/Iron Rim
Function:	Pull Bending Rim to Be Straight and Cut Rim
Power Supply:	380V 3phase, 220V/110V 1phase
Hydraulic Motor:	Power:0.75kw,Speed:1400rpm
Mechanical Motor:	Power 1.1kw,Speed:1400rpm
Noise:	75dB
Color:	Red/Blue(Please Choose)

Product Description

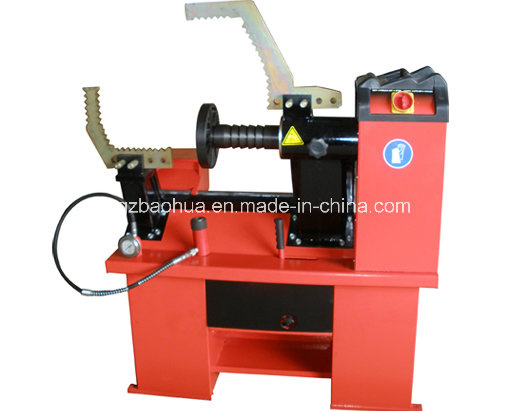

Semi-automatic Rim straightening machine/grind machine

Technical parameter:
It need worker operate shake rocker to let hydraulic Jack rise to fix rim.
It can repair alloy/chrome/iron rim and pull bending rim to be straight.
Scope of work:10"-26"(660mm)
Power supply:380V 3phase, 220V/110V 1phase
hydraulic motor:power 0.75kw, 1400rpm
Mechanical motor:power 1.1kw, 1400rpm
N.W/G.W::330kg/350KG
Noise:75dB
Product size:900mm*1110mm*1250mm
Packing size:1390*1420*900mm

Features:
The model BR- 85 is designed and manufactured to repair by straightening all kind of steel,aluminum and alloy wheels with range diameter between 10'-- 26' The system uses an easy to handle piston controlled by an hydraulic unit that,conveniently positioned,pushes on the damaged part of the rim taking it back to the original shape.Such operation is made easier with the aid of a wide set of shaped punches that perfectly lean toothed different rim profiles.BR-85 moreover is equipped with a lathe unit that allows,after the wheel straightening operation,to remove dents on the edges.

Diameter of piston cylinder we used is 63mm which comes to as radius 3,15 cm.
As you have seen above formula you can have 5 tons of total pressure while working on our BR -85 machines.
Manual hydraulic cylinder, pressure indication

Manual Hydraulic Section

Speed reducer parts

Hydraulic Control Panel

The machine work surface

Host Control Panel
