| Prod Model: |
BS3-235mm |
| Mounting: |
Bsp 1 1/4" |
| Resolution: |
21mm |
| Accessories: |
1 NBR Gasket |
| Warranty: |
1 Year |
| Length: |
150~2000mm |
| Water Resistance: |
IP67 |
| Production Process: |
Assembly |
Product Description

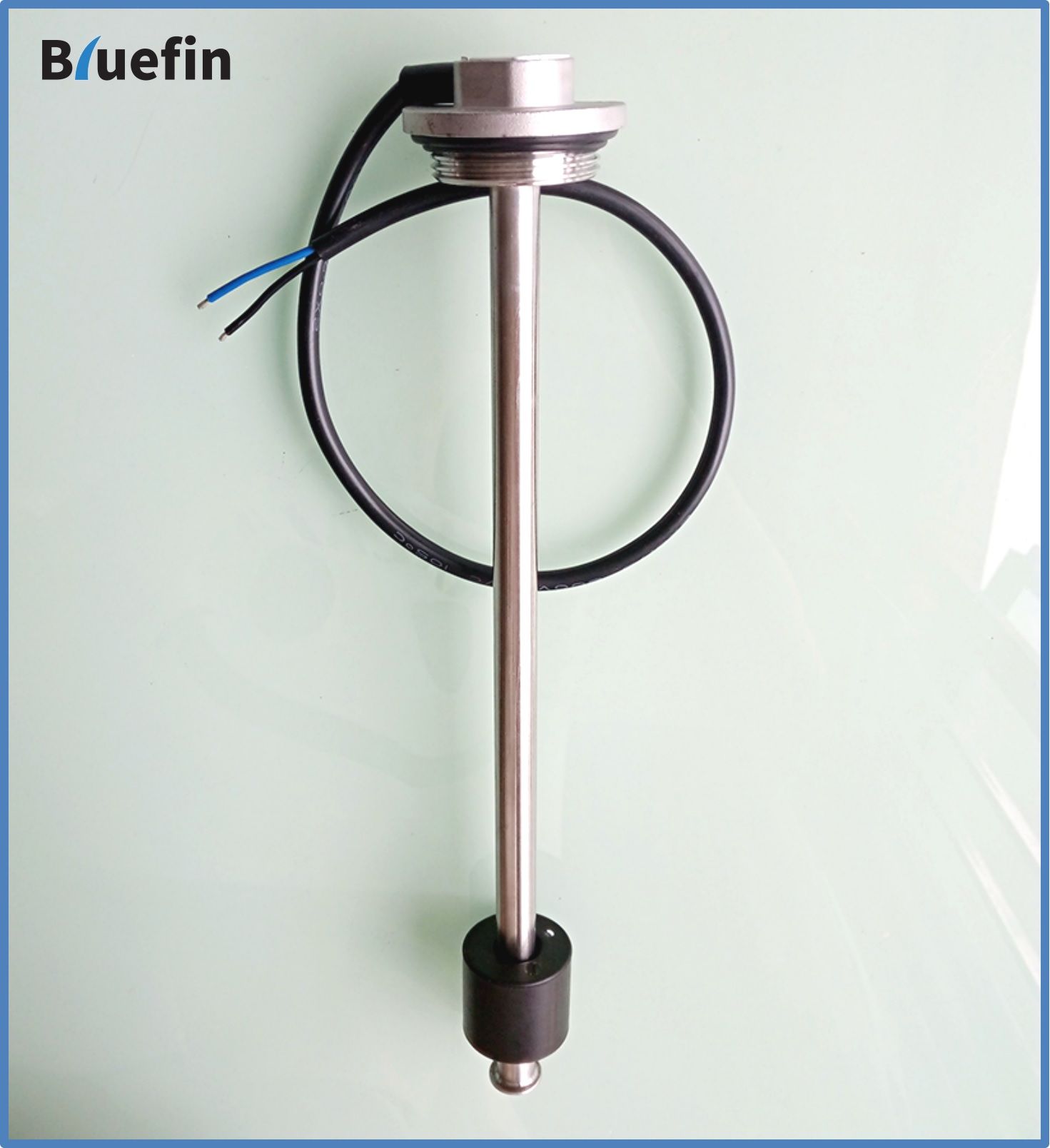

single tube float switch type stainless steel 316/304 fuel tank level sensor
--- Fields of application: automotive, marine & genset industries.
Specification
| S3-150mm | S3-800mm | Material: SUS304 or SUS316
Assemblly method: BSP 1 1/4" thread
Resolution: 21mm
Output signal a. resistance: 0~190Ω / 240~33Ω
b. current: 0~20mA / 4~20mA
c. voltage: 0.5~4.5V / 0~5V
Wire: 460mm
Water resistance: IP67
Working temperature: -40ºC~+85ºC
|
| S3-200mm | S3-850mm |
| S3-225mm | S3-900mm |
| S3-250mm | S3-950mm |
| S3-275mm | S3-1000mm |
| S3-300mm | S3-1100mm |
| S3-350mm | S3-1200mm |
| S3-400mm | S3-1300mm |
| S3-450mm | S3-1400mm |
| S3-500mm | S3-1500mm |
| S3-550mm | S3-1600mm |
| S3-600mm | S3-1700mm |
| S3-650mm | S3-1800mm |
| S3-700mm | S3-1900mm |
| S3-750mm | S3-2000mm |
Remark: The length of the sensor can be customized.
The high and low level alarm setting is optional.
Facilities
Fields of application:Automotive, marine & genset industries.
Wide product range to choose from
--fuel level sensor for trucks
--fuel level sensor for marine & gensets
--adblue sensors, compliant to euro iv, euro v, euro vi, t4f
--mechanical spiral content gauge (mg)
--gauges (instruments)
--accessories
Factory is certified to iso 9001:2008 and iso/ts 16949;Also certified by european truck OE's
As an iso 9001:2008- and iso/ts 16949-certified manufacturer, our products have been strictly tested and proved to be stable, reliable and advanced under different applications.
Compact & fully-integrated workshops:
--tube making
--tube forming & machining
--pcba assembling including wave-soldering
--assembly and functional tests
--leaking tests
Founded in 2016, Bluefin Sensor Technologies (Hong Kong) Limited is a manufacturer and exporter, which integrates design, production, and sales as a total solution provider. We are specialized in the development & manufacturing of sensors, gauges, GPS trackers as well as other electronic and mechanical accessories applied for boat, automobile, generator and other electrical equipment.
Senior Engineer with Over 20 Years' Experience
LED by a senior engineer group of 10 persons with around 20 years' experience in auto and electrical field, our R&D team is keeping pace with the most advanced technology in the world.
Fields of application: Automotive, marine & genset industries.
Wide Product Range to Choose from
--Fuel level sensor for trucks
--Fuel level sensor for marine & gensets
--Adblue sensors, compliant to Euro IV, Euro V, Euro VI, T4F
--Mechanical spiral content gauge (MG)
--Gauges (instruments)
--Accessories
Factory is certified to ISO 9001: 2008 and ISO/TS 16949; Also certified by European Truck OE's
As an ISO 9001: 2008- and ISO/TS 16949-certified manufacturer, our products have been strictly tested and proved to be stable, reliable and advanced under different applications. Our company was
Factory is certified to TS-16949; Also certified by European Truck OE's
Compact & fully-integrated workshops:
--tube making
--tube forming & machining
--PCBA assembling including wave-soldering
--assembly and functional tests
--leaking tests
Having Full Capability in Meeting User's Demands
With 2, 000-square-meter garden plant with mould tooling design and fabrication, tube making, bending, forming, welding, polishing and other workshops, we have the full capability in meeting user's demand from design to validation, from electronic to mechanics development and integration, as well as the logistic support and after service.
You are welcomed to send us the enquiry if any of our products interested you, and we would be glad to provide you the optional solutions with favorable condition.
