Colo International Corporation Group Ltd. >> Reciprocator of Powder Coating Line

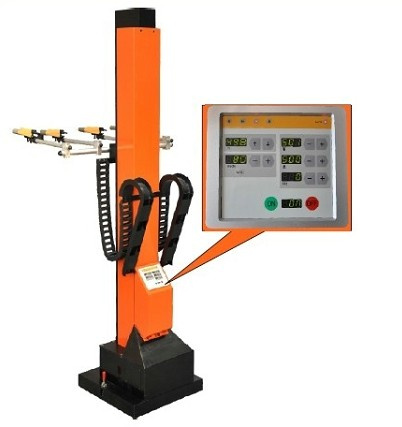

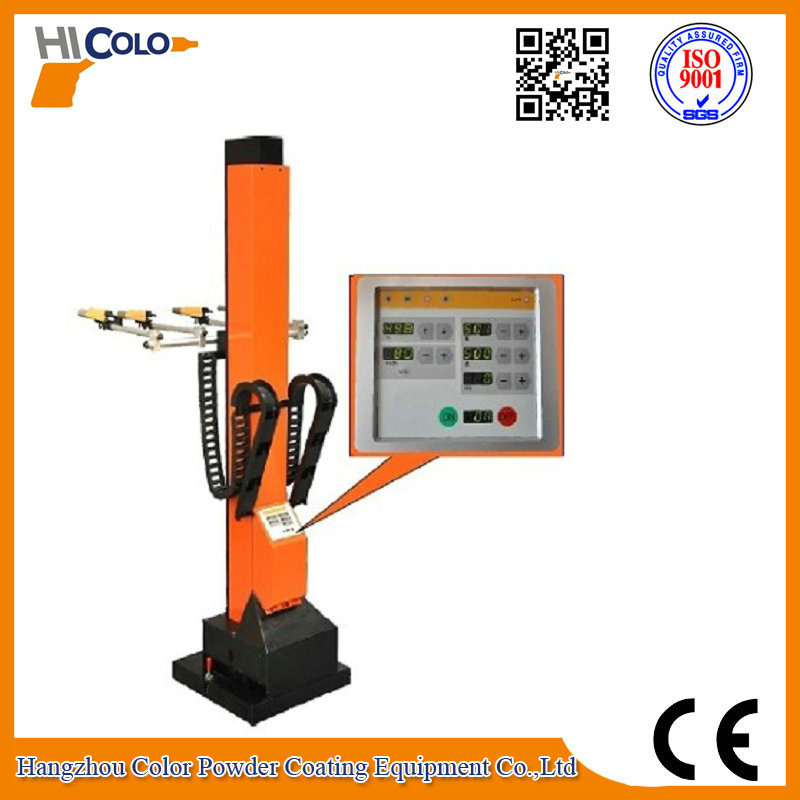

Reciprocator of Powder Coating Line

Reciprocator of Powder Coating Line
Price: US $ 1850-1999/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: T/T,Paypal,Money Gram,Western Union
Prod Model: colo-2000D
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage: 110V/220V
Morning: 1.5 M, 1.8m, 2m, 2.5m
Weight: 300kgs
Pacakge Size: 3100X800X820mm
Delivery Time: 5 Days
Certification: CE
Type: Painting Robots or Reciprocator
Brand: Hicolo

Product Description

This is important part of a automatic powder coating line. Automatic Reciprocator (reciprocating machine) (Work with Electrostatic Powder Coating Gun) With several electrostatic powder coating gun on the reciprocator Japan Mitsubishi Transducer & PLC controlled Four automatic spray gun rods(qty of the rods can be ordered) .

 Technical characteristics Reciprocator of Powder Coating Line
Power supplyAC220V 50-60hz
FrequencyJapanese Mitsubishi
Power motor0.75KW
Sweep speed0~60m/min
speed adjustable by inverter.
Acceleration1M/Second
Low limit setting by potentiometer
Environmental0~50degree
Star signal model:digital display
Max load capacity40
Motion Range0.3~2.5M(Can be setting)

The benefits of colo-2000D  Reciprocator of Powder Coating Line are:
80 storable programs
Maintenance-free motor
Extremely smooth running through chain
High loading capacity and stability
Long-stroke and short -stroke operation


The powder coating application is done using an electrostatic spray gun. Electrostatic guns work because the powder is electrically charged utilizing compressed air and voltage. The powder is held in the hopper and fluidized. Once the trigger is pulled on the spray gun, the powder is pulled to and out of the gun using compressed air. In addition a voltage source creates an electrostatic field at the tip of the gun which imparts the powder with a positive charge. As a result, the powder adheres to the grounded part until heated in our convection oven, which initiates the curing process. Once coated, the parts are sent into our convection oven.

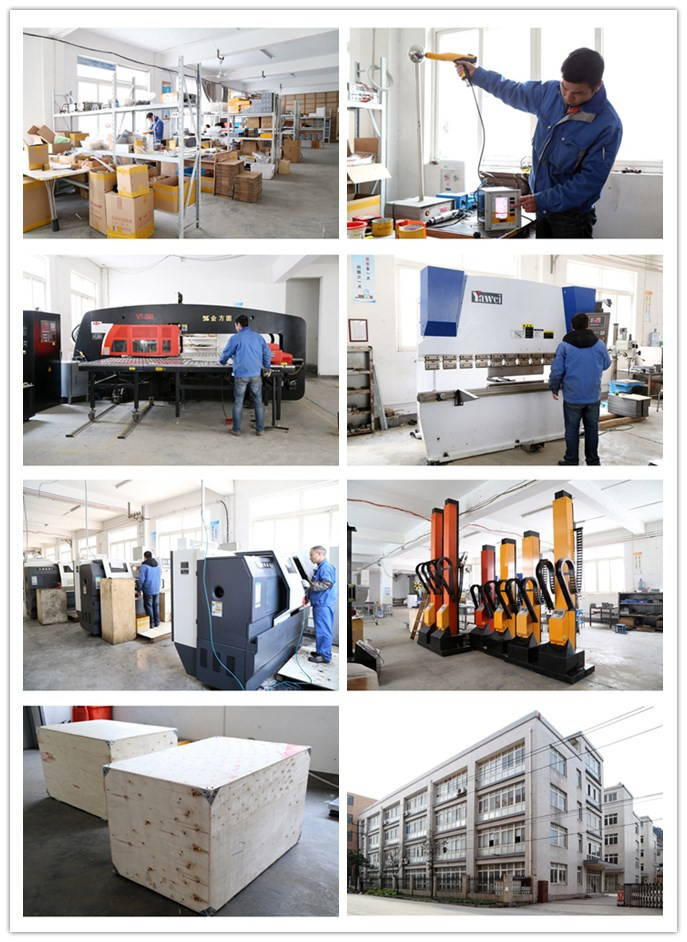

More pictures about our company.


More detailes please contact with SONIA
mobile: 86-13396517035

Hi colo Group owned two factory, one it is produce the powder paintings -

Tiantai Colourful Plastic Powder Co., Ltd. And another one it is professional in the powder coating application equipment ---

Hangzhou color powder coating Equipment Co., Ltd It is located in the electrostatic generator production base- Hangzhou Gongshu Economic Park, We have ability of producing electrostatic powder coating line, paint coating line which have automatic, semi-automatic, manual and special type and curing and drying ovens with many kinds heat way (oil, gas or electric), cartridge or cyclone recovery system, wet curtain or dry painting booth, conveyor systems, spray or immersion type pretreatment plant. Also we supply the spare parts such as filters, guns, reciprocators, pumps and so on.

Our machines can spray well in a variety of workpiece shapes, , it efficiently solve the penetration problems on the corners and recesses. At the same time, with the intelligent method design, it is easy for operation. We will make unremitting efforts to promote the electrostatic powder coating industry as our responsibility. Above of our productions are produced in term of ISO9000 and ISO14000, so we always keep concept of environmentally friendly. With advanced production and testing equipment, in the high-quality technology and excellent and design of the joint efforts of staff, the annual product of electrostatic generators more than 5, 000 sets of, circuit boards, modules, more than 30, 000 sets of the spray gun. COLO Coating Equipment has opened up not only the China local market and has been successfully exported to Mexico, Colombia, Peru, Canada, the United States, Brazil, Russia, Poland, France, Germany, Italy, Egypt, Vietnam, India, Saudi Arabia, South Africa and other countries, and get the Satisfaction with different clients.

Welcome guests from all countries in the world visit our factory, choosing colo it is choosing quality machine, , high-quality after-sales service. Holesale, sales and service of electrostatic coating. Its products have continuously been developed and improved day by day.

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
