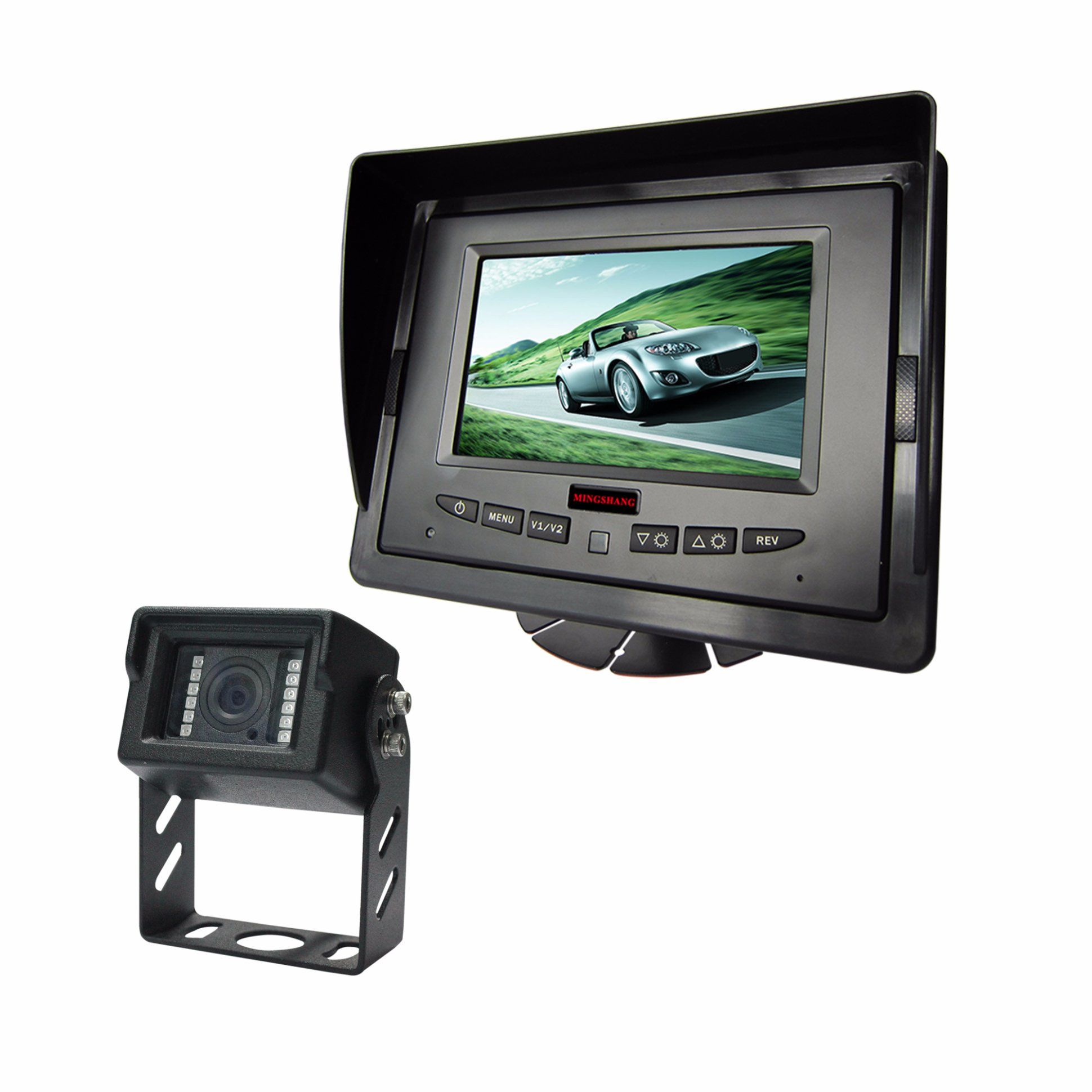

Rearview System with 5-Inch Cable Shatterproof Monitor, Built-in Auto-Scan and Waterproof Camera

Name: Rearview System with 5-Inch Cable Shatterproof Monitor, Built-in Auto-Scan and Waterproof Camera
Brand: ibuyautoparts.com
SKU: 817503195
Availability: InStock
Rating: 4.4 (122 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Specification:
1.Input voltages available from DC10V-32V with audio.
2.Mirror or no mirror could be set separately in each channel.
3.With dimming function(day and night mode).
4.Could be connected with2 cameras for side view and rear view.
5.With 2 Auto triggers.
6.Grid lines could be adjusted up or down, left or right.
7.Built to withstand the shock and vibration associated withindustrial applications.
8. Full function wireless remote control

Monitor:
1. Resolution: 480 X 3 (RGB) X272
2. Contrast: 500:1
3. Dot pitch:0.192 ( H) X 0.1790 (V )
4. Viewing angle U:40/D:60 L/R:60
5. input power: DC12-24V
6. Brightness: 300cd/m2
7. system: PAL and NTSC
8. Shock resistant, specifically design for mobile use
9. Picture display format: 16:9
10. operation temperature:- 20°C~+70°C

Camera:

1. 1/3 CCD sharp sensor
2. Waterproof: IP68
3. Pixels: NTSC: 768( H ) X494 ( V)
PAL: 752( H ) X582 ( V)
4. Resolution: 600 TV Lines
5. Minimum Light: 0.01 Lux (LED ON)
6. S/N ratio; More than 48 Db
7. Video output: 1Vp-p 75Ω
8. Voltage:DC12V(+/-15%)
9. View angle : 120 degree
10. 12pcs SMR IR LED for good night vision
11. Material: Zinc-alloy

12. operation temperature:- 20°C~+70°C

Backup camera features:

Super wide angle: 120°
Waterproof and weather-resistant housing for outdoor use
Night vision available, day/ night sensor for automatic adjustment
Waterproof and weather-resistant housing for outdoor use
IR distance: approximately 10m
Mirror/normal image switch optional
Parking line is selectable

Why do you must choose Mingshang?

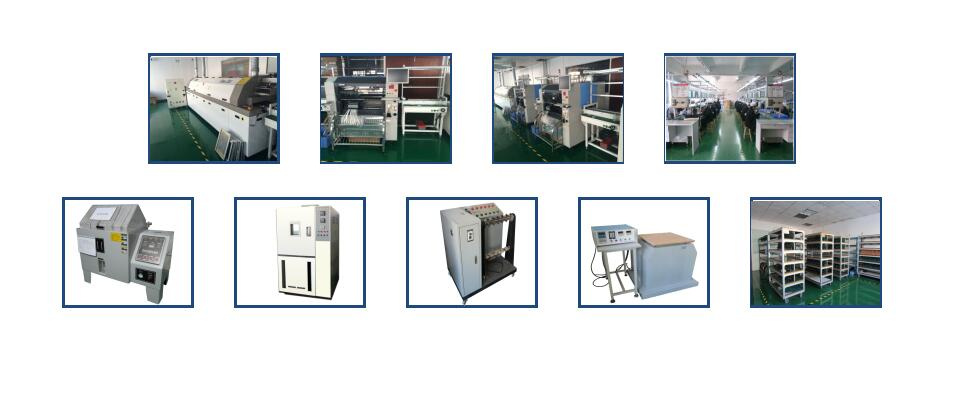

1. Having various test machines to ensure product quality and owning SMT line. More than 14years OEM and ODM experience.

2. Certificated with TS16949:2009&ISO9001:2008, passed CE, FCC, E-mark.etc and compliant with RoHs requirement.

3. We have a strong and enthusiastic team to support you at anytime. Competitive price, top quality, good warranty and after-service are provided.

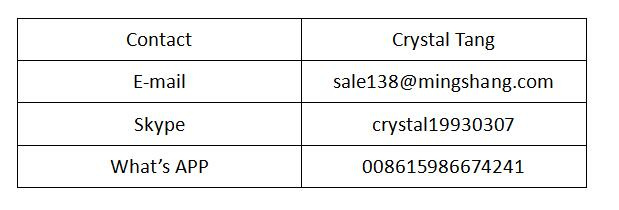

Welcome to contact us!

Welcome to visit our website ----http://www.mingshang.com/

Prod Model:	MS-508RSC

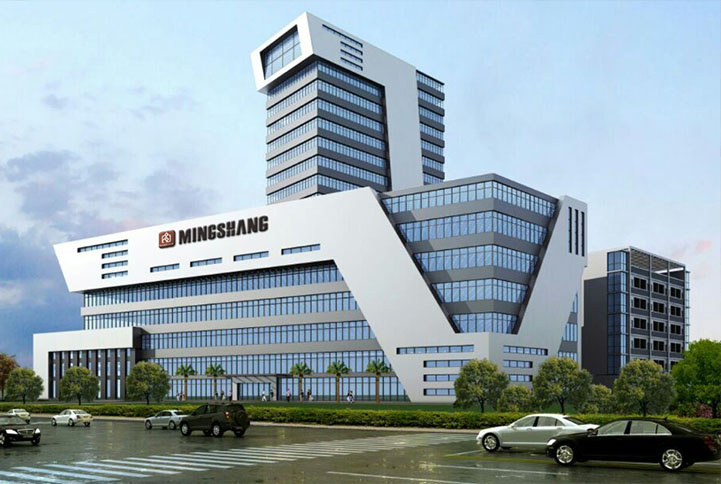

Mingshang International Group has its head office in the Shenzhen China and consists of Shenzhen mingshang industrial co, Ltd, Mingzong technology co, Ltd and Mingshang high technology(huizhou) co, Ltd

Found in 2003, Mingshang has produced excellence car visual safety solutions to the worldwide vehicles markets, is the one of China's leading suoopliers of backup camera system, Rear view camera system, mobile DVR and so on.

MINGSHANG is one of China's leading suppliers and manufacturers for Wired and Wireless Rear View Camera Systems, and Mobile DVR for

- Commercial and School Buse

- RV's and Motorhomes.

- Cargo and Delivery Vans.

- Trucks and Trailers.

Products:

1. Trailer camera system

2. Forklift camera system

3. HD heavy duty camera system in wired and digital wireless

4. Mobile DVR

5. Wireless hitch camera system---for trailer, horsebox, caravan, forklift, Boat

6. Recordering 4CH wireless camera system

MINGSHANG has over 14 years of experience in designing and developing visual safety systems for eliminating blind spots around vehicles to avoid the challenges that today's vehicles drivers face out on the open road.

MINGSHANG is proudly to server Ford, GMC, YUTONG BUS, KINGLONG, and Dometic (Waeco).

MINGSHANG certified with TS16949: 2009 & ISO9001: 2008 International Quality Management System since 2011, also compliant with RoHS requirements. The certificates include CE, FCC, and E-MARK...etc.
