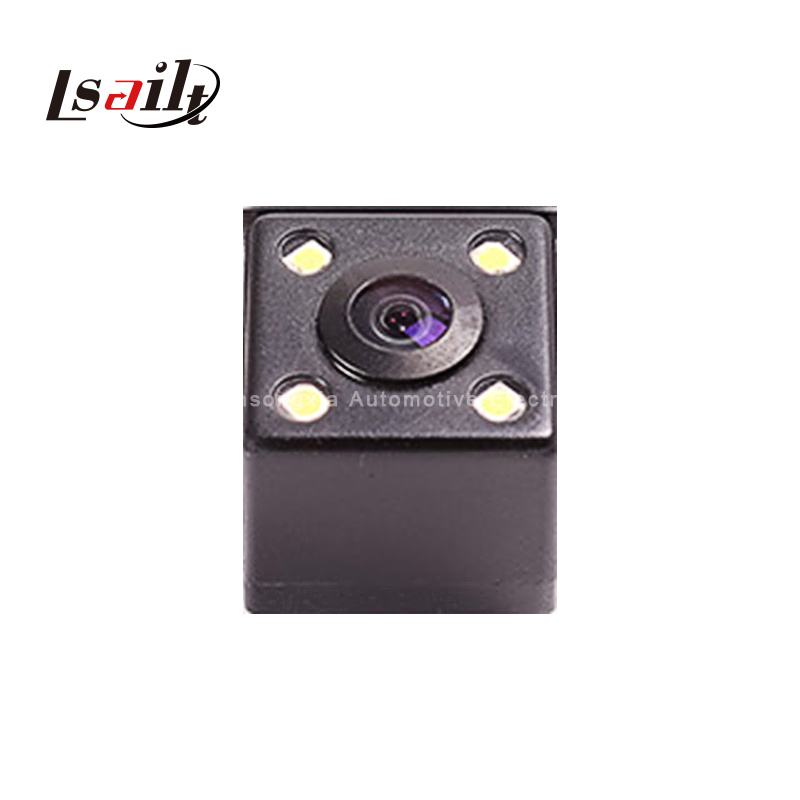

CCD/CMOS(Low power), 420TVL, Night Vision, Waterproof SHOCK/DUST PROOF FUNCTION came with Vehicle Camera/Car Camera, , Parking Camera with with 4 LED HD Light/170-Degree Wide Angle
Do a simple installation, special car camera without punching. Do not have to damage original car structure.
Owe to High-end and HD image with Night Vision, Large Horizontal perspective and waterproof, anti-fog, anti-shock!
Features:
This product adopts digital sensor chip to achieve more effective and stable display.
Strong capacity of anti-interference and vast of anti-proof Len, to let reversing more security!
Multi-player waterproof design, which workout the damage of high pressure washing, foam proof, dustproof and shockproof!
Basic Technical Parameter:
Voltage: DC 12V
Current: 100mA
White balance: Automotive
Grade of waterproof: IP67
Operate temperature: -20º C-70º C
Storage space temperature: -40º C-80º C
TV Line: 480line
Image sensor: CMOS Sensor/CCD
Installation Method:
1. Remove Power supply cables of car battery (cables should keep away from Electrode)
2. Make sure the spot of car camera!
One way is the spot of car license plate lamp; Lines of camera connect with Reversing light power and Video extension line
Another way is drilling to install where embedded into car bumper
3. The other side of video extension line connects with AV IN of DVD screen!
Product Parameter |
NO. |
Item |
Parameter |
Remard |
1 |
Image Device |
PC7070K |
|
2 |
Chip |
CMOS |
|
3 |
Optical Dimensions |
1/4" |
|
4 |
Sensing Area |
3.63mm*2.73mm |
|
5 |
Effictive Pixel |
648*488 |
|
6 |
Voltage |
DC12V |
|
7 |
Waterproof |
IP67 100% waterproof |
|
8 |
White balance |
AUTO |
|
9 |
BLC |
AUTO |
|
10 |
Signal IN type |
CVBS |
|
11 |
Signal Out Rate |
1Vp-p 75Ω |
|
12 |
Signal Out System |
NTSC |
NTSC/PAL (Option) |
13 |
Horizontal Resolution |
420 TV Line |
|
14 |
SNR |
≥48dB |
|
15 |
Image Display |
MirrorHorizontal |
Mirror positive(Option) |
16 |
Identififation Line |
3 COLOR acr |
Option |
17 |
Power |
0.25W |
|
18 |
Work Tmepureture |
-20~+70ºC |
|
