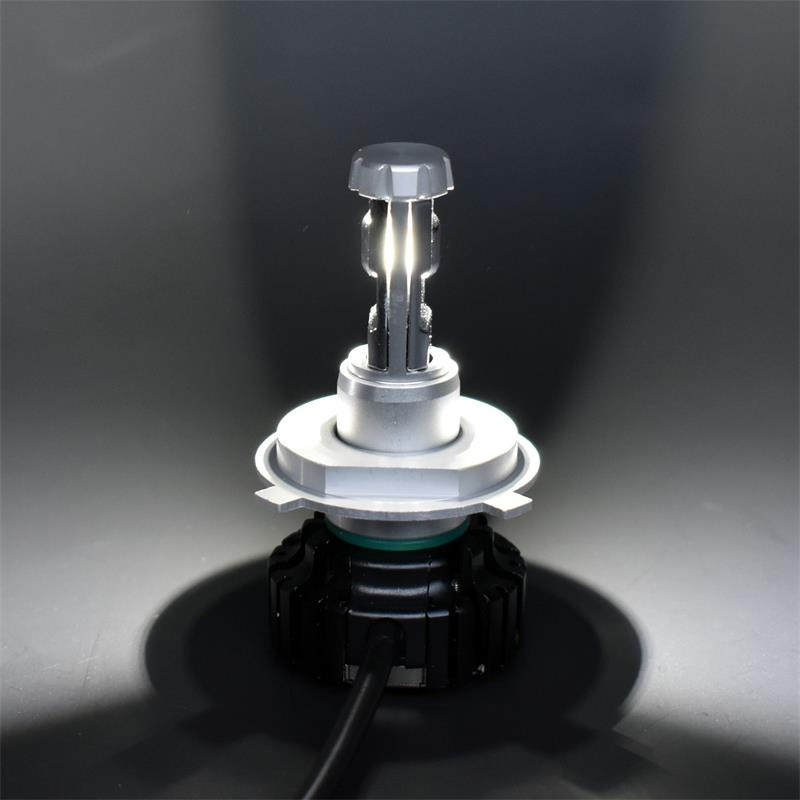

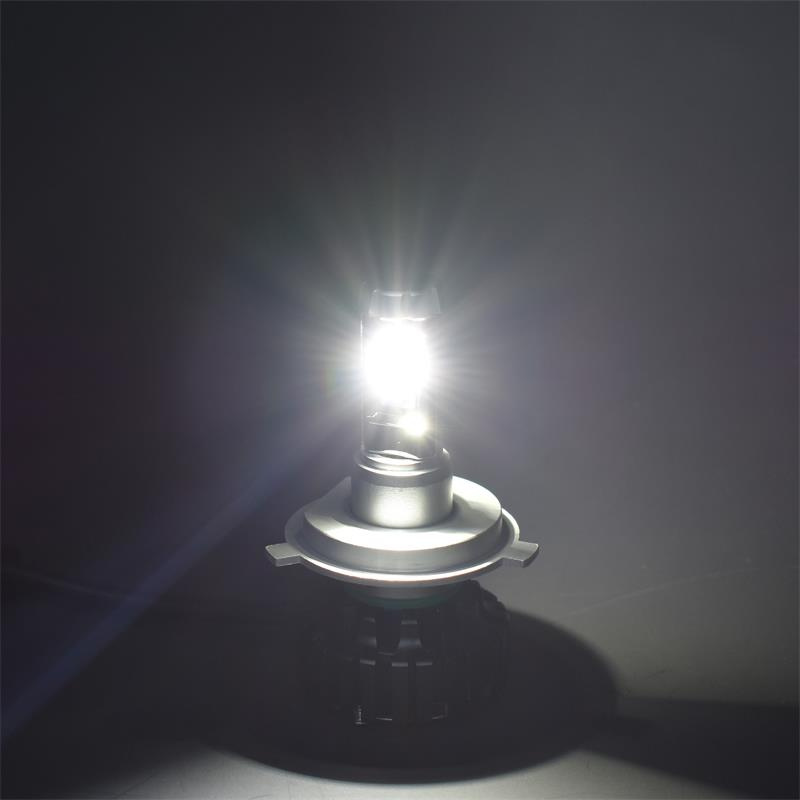

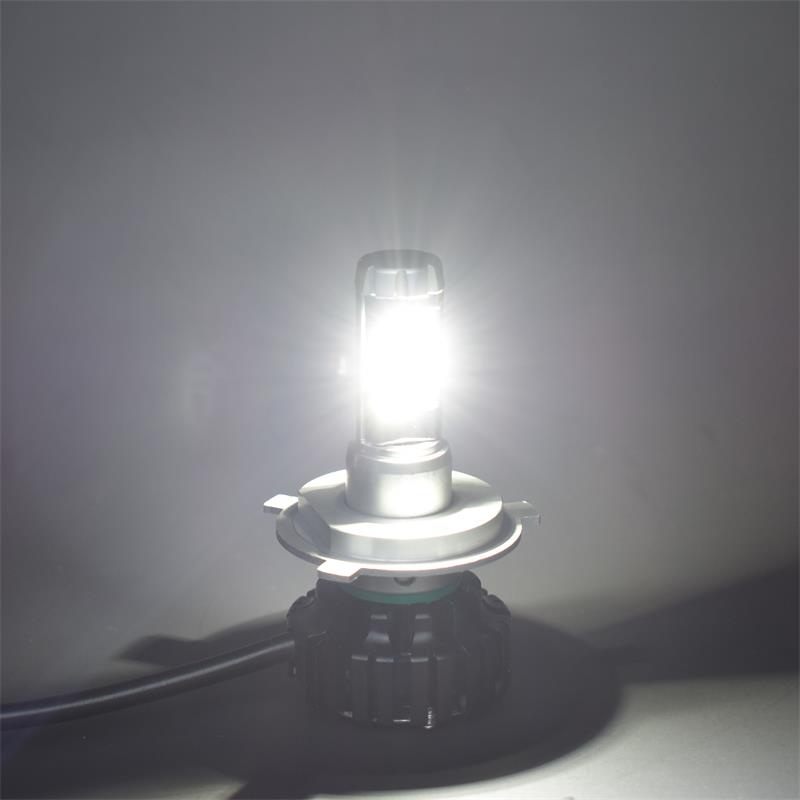

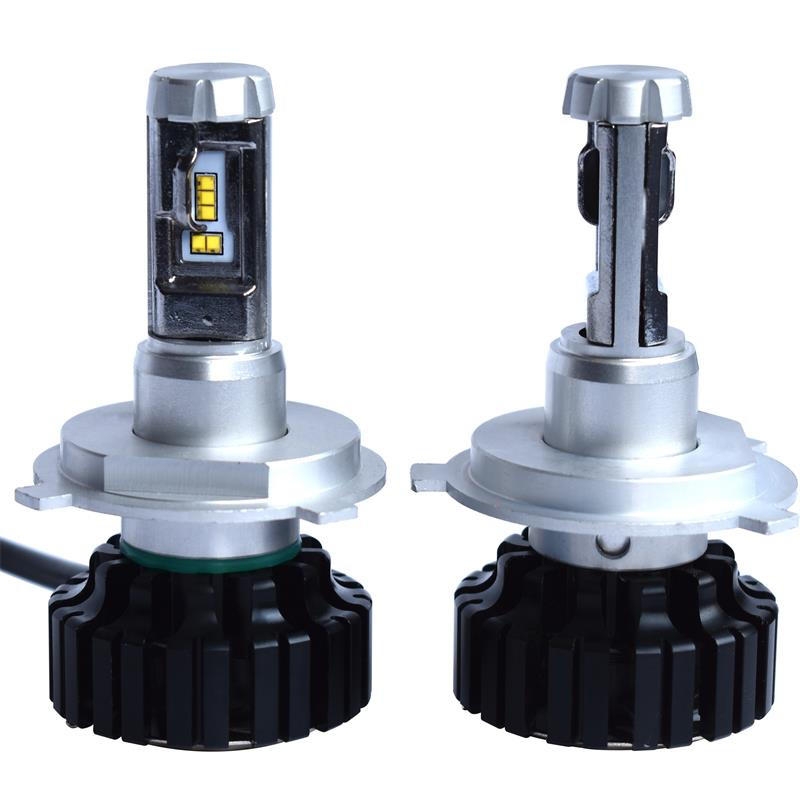

RC H4 Csp LED Car Headlight

Name: RC H4 Csp LED Car Headlight
Brand: ibuyautoparts.com
SKU: 825217335
Availability: InStock
Rating: 4.5 (73 reviews)

Price:	US $ 1-46.5/Pairs
Min Order:	1/Pairs
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

New Products: RC LED Car Headlight
A-Plug Type:

Single Beam	Hi/Lo Beam
RC 9005/9006/HB3/HB4 CSP/COB	RC H4 CSP/COB
RC H1 CSP/COB
RC H3 CSP/COB
RC H7 CSP/COB
RC H8/H9/H11 CSP/COB

B-Specification:

Item		Specification

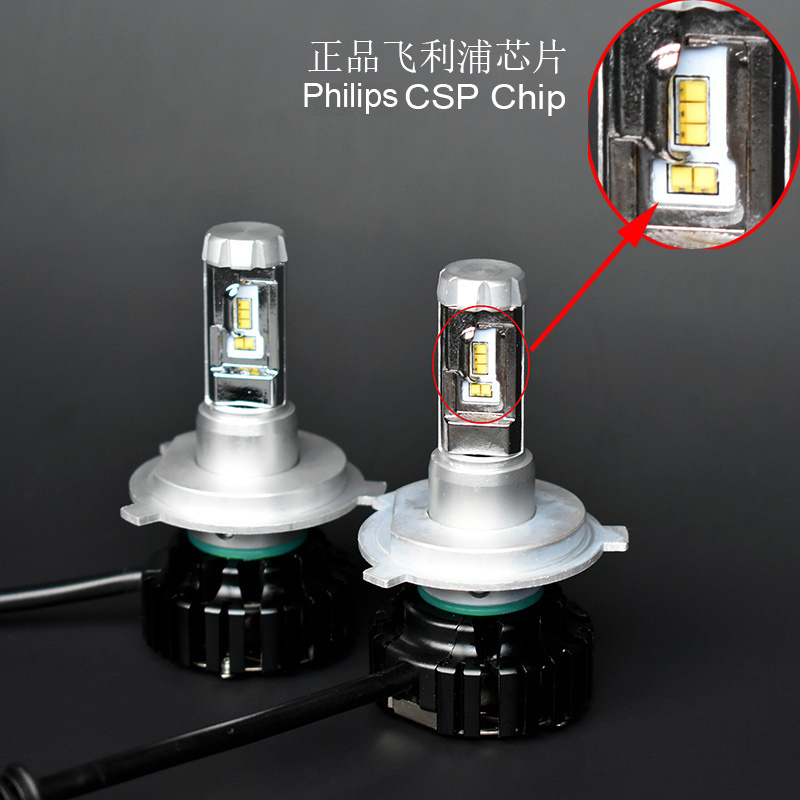

Lamp bead type		2pcs CSP/COB LED Chips:a-Philips CSP/ Normal CSP/ Normal COB
LED Substrate		Copper
Reflective Cup		Aluminum, available for 9005/9006/HB3/HB4/H7/H4
Body Material		Air Aluminum
Wattage/Power		30W/Bulb(60W/Set)

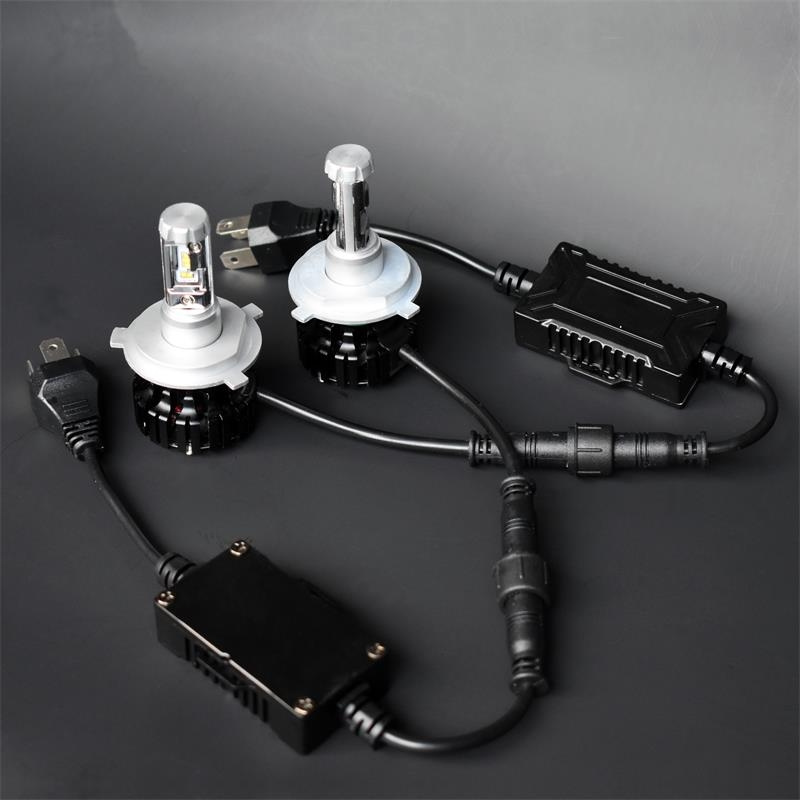

Design		Lamp body and power source split design
Size	Lamp Item	Bottom R	Top Lamp R	Body High H
	9005/9006/HB3/HB4	39.85mm	15.00mm	71.31mm
	H1	39.85mm	9.88mm	78.00mm
	H3	39.85mm	9.97mm	68.65mm
	H7	39.85mm	15.00mm	75.55mm
	H8/H9/H11	39.85mm	15.20mm	71.50mm
	H4	39.85mm	15.00mm	79.90mm
Lumens		4000lm/bulb(8000lm/set)
Input(A)		2.1--2.5A
Color Temperature		6000k-6500k Cool White(accept customized other 3000K, 4000K, 4300k, 8000k, e.g. )
Voltage		DC 9-32V
Operating temperature		-45ºC to + 105ºC
Lifespan		More than 30000 hours
Waterproof		IP65 Waterproof
Heat dissipation		Built-in fan

C-Packaging & Delivery

Packing Details	Per Set packing	2pcs/set In Gift Paper box	Qty./Ctn	50sets/ctn.
	Size for Box	20146cm	Size for Ctn.	704030cm
	Weight/set	0.40kgs/set	G.W./ctn.	21.00kgs/ctn.
Delivery Detail	15--25days after confirm the order

More Information:

Prod Model:	RC H4 CSP
Material:	LED
Voltage:	12V
Function:	High Beam
Resistance:	Waterproof
Certification:	E-mark
Application:	Any Car
Base:	Aviation 6063 Aluminum
Brand:	Rucheng

Guangzhou Rouse Photoelectric Co., Ltd. is a professional R & D, manufacturing LED car headlights high-tech enterprises. Rouse Photoelectric Optoelectronics has a number of outstanding R&D and operations team, we committed to providing customers around the world with high-quality LED lights and professional services. Since the founding of the company, we has always insisted on the pursuit of excellence, intellectual craftsmen boutique, to provide high-quality LED car headlights / headlamps, LED fog lights, the main high-power COB and CSP lamp beads series LED lights. We firmly choose to product high quality product line.

Rouse Photoelectric has 6, 500 square meters of production plants, we are strictly abide by the ISO9001: 2008 and TS16949: 2002 international standards. From the product design and development to the supplier of the audit, the procurement of raw materials, the production process, the production process control, product quality testing, all sectors have reached the industry's highest standards of demand.

Rouse Photoelectric Main production equipments: 10sets of CNC, 5sets of DC Power Supply, 4sets of Bench drilling machine, 1set of cutting machine, 2sets of Bench type sand turbine, 14sets of AC spot welding machine, one lamp The aging test chamber, 2sets of HID light test machine, 5 production lines.

Rouse photoelectric vision: Quality and R&D-based, integrated industry resources, import innovative marketing model, the establishment of global sales channels, a leading brand industry.

Rouse photoelectric enterprise values: Attention to talent, training team, to create value, integrity-based, win-win cooperation.

We are willing to work with you to work together to create brilliant!
