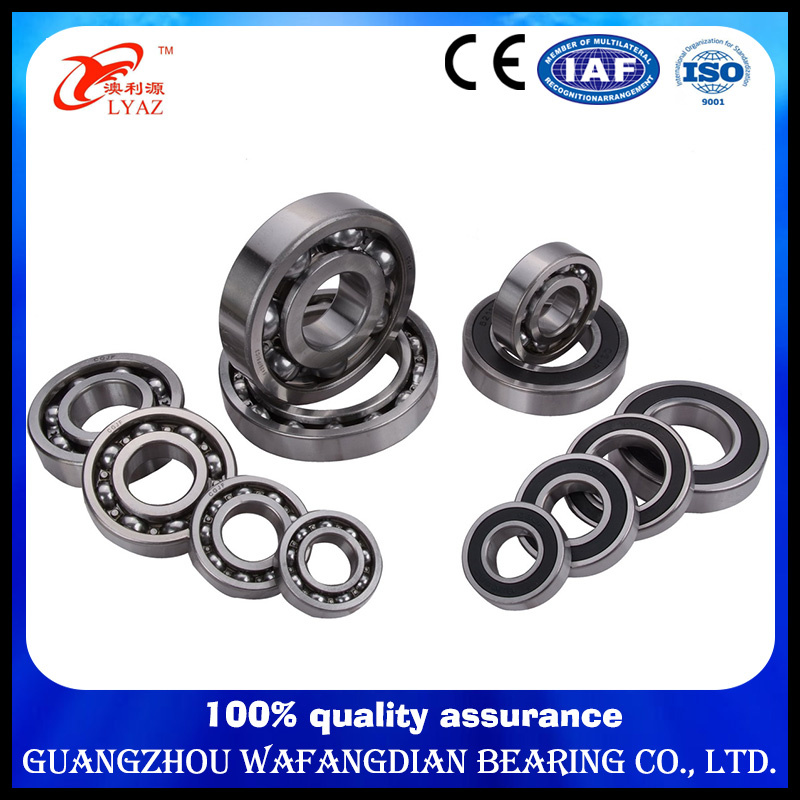

Radial Deep Groove Ball Bearing 6308 6308-2RS 6308zz Bearing 40X90X23

Packaging & Delivery

Packaging Details:	1.Neutral Package:Plastic Bag+Carton+Pallet;  2.Commercial Package:Plastic Bag+Box+Carton+Pallet;  3.As Clients' Requirement.
Delivery Detail:	3-25days


Radial Deep Groove Ball Bearing 6308 6308-2RS 6308ZZ Bearing 40x90x23

Product	6308 bearing
Brand	Neutral or LYAZ or OEM service
Size	40*90*23mm
Weight	0.64kg/pc
Cage material	Nylon . Steel . Brass
Precision	P0/ABEC-1, P6/ABEC-3, P5/ABEC-5, P4/ABEC-7
Sealed type	OPEN/Z/ZZ/RS/2RS

Some Items of 6300 series Deep Groove Ball Bearings We Can Offer:


Bearing  NO.

Old NO.

ID

OD

B

Cr

Cor

Max Speed (Grease)

Max Speed (Oil)

Mass



6300	300	10	35	11	7.65	3.48	18000	24000	0.053
6301	301	12	37	12	9.72	5.08	17000	22000	0.06
6302	302	15	42	13	11.5	5.42	16000	20000	0.082
6303	303	17	47	14	13.5	6.58	15000	18000	0.115
6304	304	20	52	15	15.8	7.88	13000	16000	0.142
6305	305	25	62	17	20.6	11.3	11000	13000	0.232
6306	306	30	72	19	26.7	15	6600	12000	0.346
6307	307	35	80	21	33.4	19.3	8500	10000	0.457
6308	308	40	90	23	40.8	24	7000	8500	0.639
6309	309	45	100	25	52.8	31.8	6300	7500	0.837
6310	310	50	110	27	61.8	38	6000	7000	1.082
6311	311	55	120	29	71.5	44.8	5600	6700	1.367
6312	312	60	130	31	81.8	51.8	5000	6000	1.71
6313	313	65	140	33	93.8	60.5	4500	5300	2.1
6314	314	70	150	35	105	68	4300	5000	2.55
6315	315	75	160	37	113	76.8	4000	4800	3.05
6316	316	80	170	39	123	86.5	3800	4500	3.61
6317	317	85	180	41	132	96.5	3600	4300	4.284
6318	318	90	190	43	145	108	3400	4000	4.97
6319	319	95	200	45	157	122	3200	3800	5.74
6320	320	100	215	47	173	140	2800	3600	7.09
6321	321	105	225	49	184	153	2600	3200	8.05
6322	322	110	240	50	205	178	2400	3000	9.53
6324	324	120	260	55	228	208	2200	2800	12.2
6326	326	130	280	58	253	242	2000	2600	14.77
6328	328	140	300	62	275	272	1900	2400	18.33
6330	330	150	320	65	288	295	1700	2200	21.87
6332	332	160	340	68	313	340	1600	2000	26.43
6334	334	170	360	72	335	378	1500	1900	31.14
6336	336	180	380	75	409	534	1400	1800	35.23
6338	338	190	400	78	458	576	1300	1600	40.53

deep groove ball bearings series


N0.	Bore	O.D	Width	Chamfer	Load Rating		Maximuum Seed		Weight
	mm	mm	mm	mm	Dynamic Cr	Static Cor	Grease r/min	Oil r/min	Kg/pcs
604	4	12	4	0.2	0.97	0.36	36000	44000	0.0021
605	5	14	5	0.2	1.33	0.505	32000	40000	0.0035
606	6	17	6	0.3	2.19	0.865	30000	38000	0.006
607	7	19	6	0.3	2.24	0.91	28000	36000	0.008
608	8	22	7	0.3	3.35	1.4	26000	34000	0.012
609	9	24	7	0.3	3.4	1.45	24000	32000	0.014
6000	10	26	8	0.3	4.55	1.96	22000	30000	0.019
6001	12	28	8	0.3	5.1	2.39	19000	26000	0.021
6002	15	32	9	0.3	5.6	2.83	18000	24000	0.03
6003	17	35	10	0.3	6.8	3.35	17000	22000	0.039
6004	20	42	12	0.6	9.4	5.05	15000	19000	0.069
6005	25	47	12	0.6	10.1	5.85	14000	18000	0.08
6006	30	55	13	0.6	13.2	8.3	12000	15000	0.116
6007	35	62	14	1.0	16	10.3	10000	14000	0.115
6008	40	68	15	1.0	16.8	11.5	8000	11000	0.19

6200 Series Miniature Deep Groove Ball Bearing

N0.	Bore	O.D	Width	Chamfer	Load Rating		Maximuum Seed		Weight
	mm	mm	mm	mm	Dynamic Cr	Static Cor	Grease r/min	Oil r/min	Kg/pcs
624	4	13	5	0.2	1.15	0.4	36000	45000	0.0032
625	5	16	5	0.3	1.76	0.680	32000	40000	0.0050
626	6	19	6	0.3	2.34	0.885	28000	36000	0.0080
627	7	22	7	0.3	3.35	1.400	26000	34000	0.0130
628	8	24	8	0.3	4.00	1.590	24000	32000	0.0170
629	9	26	8	0.3	4.55	1.960	22000	30000	0.0190
6200	10	30	9	0.6	5.10	2.390	19000	26000	0.0300
6201	12	32	10	0.6	6.10	2.750	18000	24000	0.0360
6202	15	35	11	0.6	7.75	3.600	17000	22000	0.0460
6203	17	40	12	0.6	9.60	4.600	16000	20000	0.0650
6204	20	47	14	1.0	12.80	6.650	14000	18000	0.1070
6205	25	52	15	1.0	14.00	7.850	12000	16000	0.1250
6206	30	62	16	1.0	19.50	11.300	10000	13000	0.2010

6300 Series Miniature Deep Groove Ball Bearing

N0.	Bore	O.D	Width	Chamfer	Load Rating		Maximuum Seed		Weight
	mm	mm	mm	mm	Dynamic Cr	Static Cor	Grease r/min	Oil r/min	Kg/pcs
6300	10	35	11	0.6	8.2	3.5	18000	24000	0.053
6301	12	37	12	1.0	9.7	4.2	17000	22000	0.06
6302	15	42	13	1.0	11.4	5.45	16000	20000	0.082
6303	17	47	14	1.0	13.5	6.55	15000	19000	0.115
6304	20	52	15	1.1	15.9	7.9	14000	17000	0.144

6800 Series Miniature Deep Groove Ball Bearing

N0.	Bore	O.D	Width	Chamfer	Load Rating		Maximuum Seed		Weight
	mm	mm	mm	mm	Dynamic Cr	Static Cor	Grease r/min	Oil r/min	Kg/pcs
685	5	11	3	0.15	0.715	0.282	35000	45000	0.0011
686	6	13	3.5	0.15	1.08	0.44	33000	42000	0.0019
687	7	14	3.5	0.15	1.17	0.505	31000	40000	0.0021
688	8	16	4	0.2	1.61	0.715	29000	38000	0.0031
689	9	17	4	0.2	1.72	0.82	28000	36000	0.0032
6800	10	19	5	0.3	1.83	0.925	26000	34000	0.005
6801	12	21	5	0.3	1.92	1.04	22000	30000	0.006
6802	15	24	5	0.3	2.08	1.26	20000	28000	0.007
6803	17	26	5	0.3	2.23	1.46	19000	26000	0.008
6804	20	32	7	0.3	4	2.47	17000	22000	0.019
6805	25	37	7	0.3	4.3	2.95	15000	19000	0.022
6806	30	42	7	0.3	4.7	3.65	13000	17000	0.026
6807	35	47	7	0.3	4.9	4.05	11000	15000	0.029

6900 Series Deep Groove Ball Bearing

N0.	Bore	O.D	Width	Chamfer	Load Rating		Maximuum Seed		Weight
	mm	mm	mm	mm	Dynamic Cr	Static Cor	Grease r/min	Oil r/min	Kg/pcs
693	3	8	3	0.15	0.56	0.18	44000	52000	0.0006
694	4	11	4	0.15	0.715	0.276	38000	47000	0.0018
695	5	13	4	0.2	1.08	0.43	34000	43000	0.0024
696	6	15	5	0.2	1.35	0.53	32000	40000	0.0038
697	7	17	5	0.3	1.61	0.715	30000	38000	0.0052
698	8	19	6	0.3	1.99	0.865	28000	36000	0.0073
690	9	20	6	0.3	2.48	1.09	27000	34000	0.0082
6900	10	22	6	0.3	2.7	1.27	25000	32000	0.009
6901	12	24	6	0.3	2.89	1.46	20000	28000	0.011
6902	15	28	7	0.3	3.65	2	19000	26000	0.016
6903	17	30	7	0.3	4.65	2.58	18000	24000	0.018
6904	20	37	9	0.3	6.4	3.7	17000	22000	0.036
6905	25	42	9	0.3	7.05	4.55	14000	18000	0.042
6906	30	47	9	0.3	7.25	5	12000	16000	0.048
6907	35	55	10	0.3	9.55	6.85	10000	14000	0.074

Most Commonly Used Deep Groove Ball Bearing:

16001	7000101	12	28	7	5.1	2.4	20000	26000	0.024
16002	7000102	15	32	8	5.6	2.8	19000	24000	0.025
16003	7000103	17	35	8	6	3.3	18000	22000	0.032
16004	7000104	20	42	8	7.9	4.5	16000	19000	0.05
16005	7000105	25	47	8	8.85	5.6	15000	18000	0.06
16006	7000106	30	55	9	11.2	7.35	13000	15000	0.085
16007	7000107	35	62	9	12.2	8.85	11000	13000	0.11
16008	7000108	40	68	9	12.6	9.6	9000	11000	0.125
16009	7000109	45	75	10	15.6	12.2	8000	10000	0.155
16010	7000110	50	80	10	16.1	13.1	8000	9500	0.166



1.  6206 6207 6208 NTN Bearing Related Bearing Catalogue


New Items	Old Items	Specifications(dxDxB)	Weight/kg
NTN Bearing 6201	201	12x32x10	0.0365
NTN Bearing 6202	202	15x35x11	0.0431
NTN Bearing 6203	203	17x40x12	0.065
NTN Bearing 6204	204	20x47x14	0.11
NTN Bearing 6205	205	25x52x15	0.134
NTN Bearing 6206	206	30x62x16	0.218
NTN Bearing 6207	207	35x72x17	0.284
NTN Bearing 6208	208	40x80x18	0.37
NTN Bearing 6209	209	45x85x19	0.428
NTN Bearing 6210	210	50x90x20	0.462
NTN Bearing 6211	211	55x100x21	0.59
NTN Bearing 6212	212	60x110x22	0.8
NTN Bearing 6213	213	65x120x23	1.01
NTN Bearing 6214	214	70x125x24	1.34
NTN Bearing 6215	215	75x130x25	1.16
NTN Bearing 6216	216	80x140x26	1.39
NTN Bearing 6217	217	85x150x28	1.92

•Materials of Bearings
Materials for bearing rings and parts largely determine the bearing's performance and life. LYAZ Bearings puts more efforts to select materials for bearing ring and part suppliers in a rigorous manner.
Materials and components of bearing rings for LYAZ Bearings are provided by the world's top suppliers,especially for serving bearing manufacturers, fundamentally solving the issue that our bearings lag behind imported bearings in terms of materials for a long time.
LYAZ Bearings boasts a set of strict incoming goods inspection system. Before being put into storage, every batch of steels and parts is under systemic inspection, including analysis of material composition, metallographic analysis, accuracy check, assembly test, etc.

•Materials for Bearing Ring and Roller Body
Bearing ring and roller body are mainly made of high-Cr bearing steel. Listed below are compositions of material for bearing ring and roller body.

Chemical Composition(%)
NO.	C	Mn	Si	Cr	S	P	Ni	Cu	HB
					<
GCr15 DIN 100 GCr6  JIS UJ2        AISI52100      SKF3	0.95~1.05	0.20~0.4	0.15~0.35	1.30~1.65	0.02	0.027	0.3	0.25	170~207

Material for bearing ring and roller body mainly consists of high C-Cr bearing steel.

•Material of cages
Material of cages need good wear resistance, stable size and metal strength. Therefore, operation environment should be mainly considered in selection of material of cages.

Cold-rolled Steel Cage
These light cages hold a high strength with reduced friction and wear in an effective way after surface treatment. The following table covers compositions of material for cold-rolled steel sheet.

No.	Chemical Composition%
JISG 3141 SPCC	C	Si	Mn	P	S	Ni	Cr
	<0.12	-	<0.5	<0.04	0.045	-	-

Brass Cage
Brass cage is adopted in small and medium bearings. However, brass cage is not suitable for compressors with ammonia cooling due to potential seasonal cracking of brass. It is recommended to replace it with iron cage.
Nylon cage
According to the type and usage of bearings, nylon cages are widely adopted, but they are inappropriate for environments where the temperature is above 120ºC or below 40 ºC. Most of cast molding cages adopt nylon PA66 material, with or without glass fiber reinforcement whose advantage is a good combination of strength and elasticity.

•Materials for Dust Shield and Sealed ring

Material for dust shield
LYAZ Bearings use cold-rolled tin plate as the standard mateiral for dust shields, but also use stainless steel of AISI-300 specification sometimes.

Material for seal ring
Seal rings are mainly made of NBR. For high temperature, fluoro rubbers and silicon rubbers are widely used as well.
