R1 / R2at One or Two Wire Braided Hydraulic Hose

Name: R1 / R2at One or Two Wire Braided Hydraulic Hose
Brand: ibuyautoparts.com
SKU: 687700912
Availability: InStock
Rating: 4.5 (97 reviews)

Price:	US $ 0.6/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Hydraulic hose SAE-R1
SAE 100 R1AT / DIN EN 853 1SN STANDARD
Tube: Oil resistant synthetic rubber
Reinforcement: One high tensile steel wire braid
Cover: Abrasion and weather resistant synthetic rubber
Temperature range: -40 to +120

Hydraulic pipe SAE-R2
SAE 100 R2 AT / DIN EN 853 2SN STANDARD
Tube: Oil resistant synthetic rubber
Reinforceent: Two high tensile steel wire layers 2 w
Cover Compound: Abrasion and weather resistant synthetic rubber
Temperature range: -40 to +120

DN	Hose I.D		Wire O.D	Hose O.D	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight
DN	inch	mm	mm	mm	MPa	psi	MPa	psi	mm	kg/m
5	3/16	4.8	9.5	11.8	25.0	3630	100.0	14280	89	0.19
6	1/4	6.4	11.1	13.4	22.5	3270	90.0	12840	102	0.21
8	5/16	7.9	12.7	15.0	21.5	3120	85.0	12280	114	0.24
10	3/8	9.5	15.1	17.4	18.0	2615	72.0	10280	127	0.33
13	1/2	12.7	18.3	20.6	16.0	2320	64.0	9180	178	0.41
16	5/8	15.9	21.4	23.7	13.0	1890	52.0	7420	203	0.45
19	3/4	19.0	25.4	27.7	10.5	1530	42.0	6000	241	0.58
25	1	25.4	33.3	35.6	8.8	1280	35.0	5020	305	0.88
32	1 1/4	31.8	40.5	43.5	6.3	920	25.0	3600	419	1.23
38	1 1/2	38.1	46.8	50.6	5.0	730	20.0	2860	508	1.51
51	2	50.8	60.2	64.0	4.0	580	16.0	2280	635	1.97

DN	Hose I.D		Wire O.D	Hose O.D	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight
DN	inch	mm	mm	mm	MPa	psi	MPa	psi	mm	kg/m
5	3/16	4.8	11.1	13.4	41.4	6000	16	23720	89	0.32
6	1/4	6.4	12.7	15.0	40.0	5800	160	22840	102	0.36
8	5/16	7.9	14.3	16.6	36.0	5250	140	20000	114	0.45
10	3/8	9.5	16.7	19.0	33.1	4800	132	18840	127	0.54
13	1/2	12.7	19.8	22.2	27.6	4000	110	15720	178	0.68
16	5/8	15.9	23	25.4	25.0	3630	100	14280	203	0.8
19	3/4	19.0	27	29.3	21.5	3120	85	12280	241	0.94
25	1	25.4	34.9	38.0	16.5	2400	65	9420	305	1.35
32	1 1/4	31.8	44.5	48.3	12.5	1820	50	7140	419	2.15
38	1 1/2	38.1	50.8	54.6	9.0	1310	36	5140	508	2.65
51	2	50.8	63.5	67.3	8.0	1160	32	4560	635	3.42

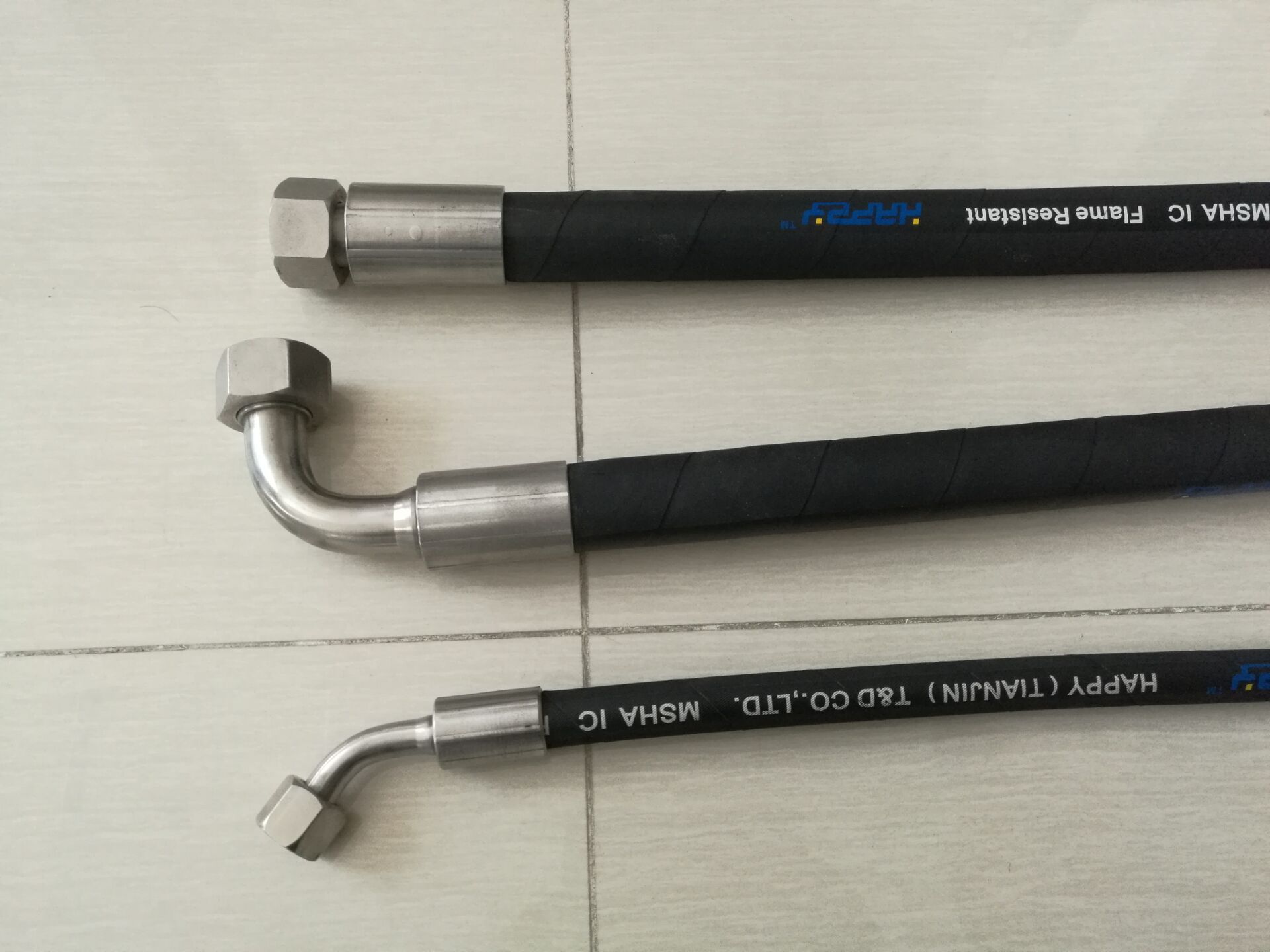

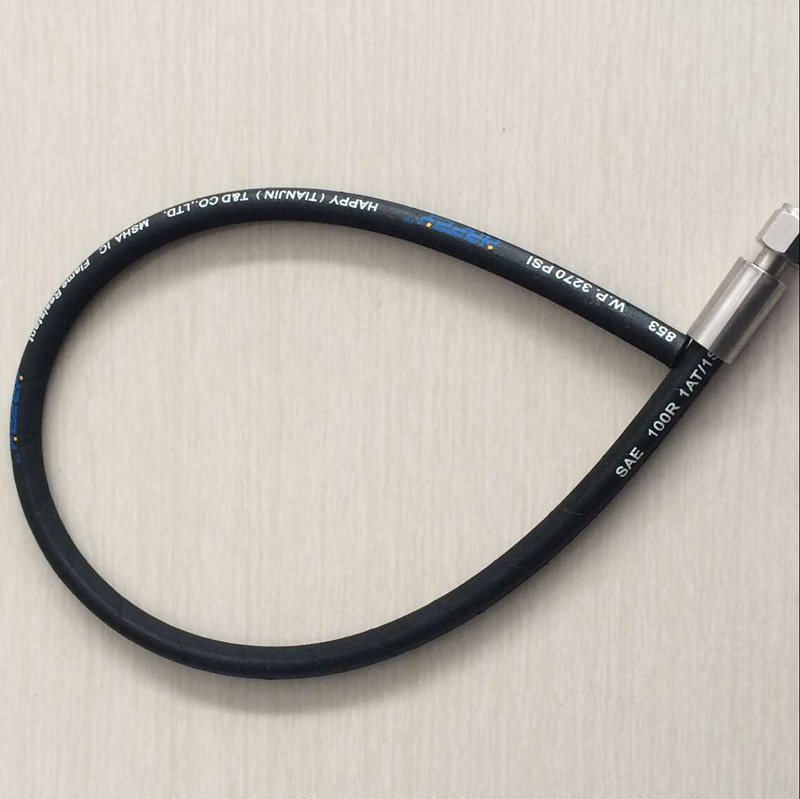

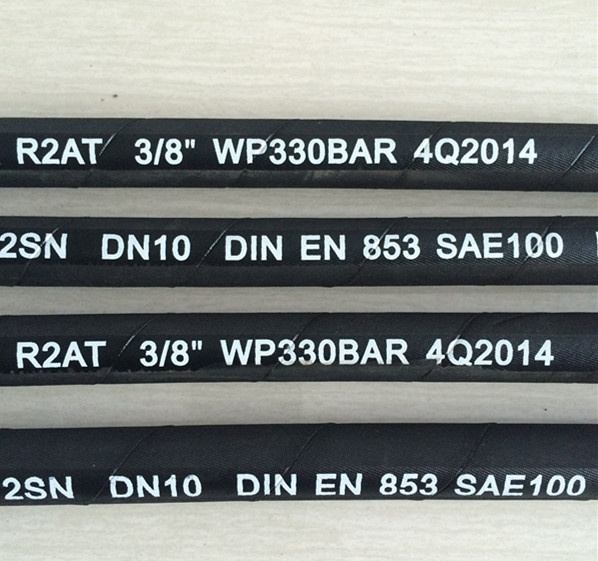

Pictures of R1/R2 Hydraulic Hose

Prod Model:	1/4" to 12"
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Hydraulic Hose
Size:	1/4" to 2'
Length:	50m 100m
Tube:	NBR
Reinforcement:	Wire Braid
Cover:	Nr
Safety Factor:	4:1
Type:	Brake Hose
Material:	Rubber
Position:	Front
Certification:	ISO9001

Happy (Tianjin) Technology and Development Co., Ltd. Is based on integrity of Research & Development, Manufacturing & Sales. Our main products include hydraulic hose, drilling hose, concrete hose, oil suction hose, water suction hose, fuel hose, oil delivery hose, water delivery hose, steam hose, sandblast hose, chemical hose, air hose, welding hose, flex metal hose and so on.

Our workshop covers about 128900 meters. We have 23 advanced production lines. Our yearly production of each kind of rubber hose are about 55, 000, 000 meters. Now we have more than 400 workers and 22 authoritative enginners.

Our company offers some famous companies' OEM production for the long term and our main markets are North America, South America, Germany, Russia, Middle East, Africa and so on. At the mean time, we have stable and long term cooperation with Chinese Petroleum, Railway Department, Chinese Mining Group and so on.

Our principle - Excellent Quality, Fast delivery time and Integrity Service.
