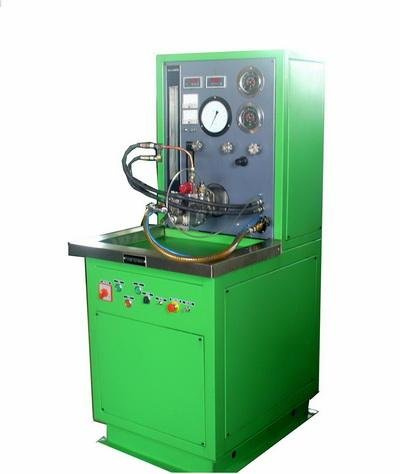

Name: PT212 PT Cummins Fuel Pump Test Bench
Brand: ibuyautoparts.com
SKU: 661944412
Availability: InStock
Rating: 4.4 (25 reviews)

Price:	US $ 3000-3300/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

It's used to test and calibrate for CUMMINS PT fuel pump. It has abundant function, high measure precision, fast sampling.

PT 212 PT fuel pump Test bench is special equipment used to provide test and calibration for CUMMINS PT fuel pump. It has abundant functions, high measure precision, and fast sampling.

For instance: Fit for: PT(G), PT(G)VS, PT(G)MVS, PTGSVS, PTGAFC, PTGAFC-VS, PTR, PTH-VS fuel pumps etc and damping ASA valve.

Instruction:
FM212 PT fuel pump Test bench is special equipment used to provide test and calibration for CUMMINS PT fuel pump. It has abundant functions, high measure precision, and fast sampling.
For instance: Fit for: PT(G), PT(G)VS, PT(G)MVS, PTGSVS, PTGAFC, PTGAFC-VS, PTR, PTH-VS fuel pumps etc and damping ASA valve.

Functions
1.Gear pump pressure and vacuum test
2. Idle speed test
3. Weight assistant pressure test
4. Pressure and flow test in every check point
5. AFC test
6. Oil stopping test
7. Route test of throttle
8. Oil return test of throttle
9. ASA valve test
10. EFC test
11.ON-OFF valve test

Technical Characteristic:

Motor output power	Speed range	Oil tank volume	Fuel No.	Oil temperature	Fuel testing pressure
3kw	0~3000rpm	50L	0# Diesel or Standard fuel	38±2ºC	≤2.5 Mpa 300Lb/in2

Air testing pressure	Gear pump testing pressure	Fuel testing standard flow	Fuel testing leakage flow	Dimension	Net weight
≤2.5 Mpa 250psi	≤5 Mpa 600Lb/in2	75~800Lb/h, 800~2200Lb/h	20~500ML/min	6809351730mm	300kg

Prod Model:	PT212
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Test Equipment:	PT212 PT Cummins Fuel Pump Test Bench
Testing:	PT212 PT Cummins Fuel Pump
Pump Model:	Cummins PT212
Checking:	Cummins PT Fuel Pump
Fit For:	: PT(G), PT(G)Vs, PT(G)Mvs, Ptgsvs, Ptgafc
Valve:	Damping Asa Valve
Color:	Green, Blue, Yellow, Red
Certification:	ISO
Update Method:	by Hard Disk
