Applications
Medical instrumentation & monitoring
Digital blood pressure meter
Environmental monitoring
Consumer & Sports
Features
Solid-state reliability
Low cost
Gauge pressure type:0-40KPa;
Easy to Use
Description
Gauge pressure sensor with dual in-line package is a small size piezo-resistive pressure sensor. When the input voltage is 5VDC the sensor produces mV DC output voltage which is direct proportion of the input pressure.
Pressure type | Type |

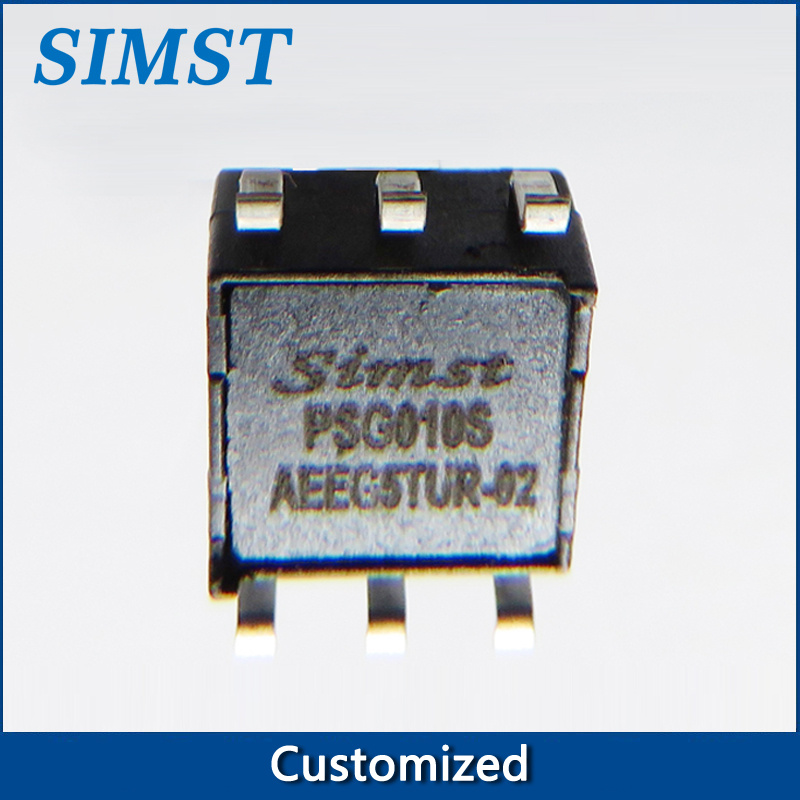

Gauge | PSG010 |
Gauge | PSG010R |
Gauge | PSG010S |
CHARACTERISTICS - SPECIFICATIONS
All parameters are measured at 5.0V supply at room temperature, unless otherwise specified.
| | Min | Typ | Max | Unit | Remarks |
Excitation Voltage | | | 5.0 | | V | |
Excitation Current | | | 1 | | mA | |
Span (FS Rang) | 40KPa | 50 | 65 | 80 | mV | |
Offset | | -25 | 0 | +25 | mV | |
TC Span | | -24 | -19 | -15.5 | %FS/100ºC | Measured at 5V constant voltage excitation. |
TC Offset | | -7 | | +7 | %FS/100ºC | |
TCR | | +18 | +25 | +32 | % /100ºC | |
Linearity | | -0.45 | -0.15 | +0.45 | %FS | |
Bridge impedance | | 4.5 | 5 | 5.5 | KΩ | |
Proof Pressure | | 2X | | | FS | |
Burst Pressure | | 4X | | | FS | |
Operating Temperature | | -20 | | +80 | ºC | |
Storage Temperature | | -55 | | +150 | ºC |
|
