Professional Manufacturer Guangli Brand High Quality Auto Painting Equipment Spray Booth for MID-Size Bus (GL9-CE)DescriptionGuangli Spray Booth Feature| Model | GL9-CE |
| External size (m) | 8.7x5.63x4.23 |
| Internal size (m) | 8.6x4.0x3.4 |
| Entrance Width(m) | 3.0 |
| Entrance Height(m) | 3.35 |
| Fan capacity( m 3 /h ) | 36000 |
| Air velocity (m/s) | 0.25-0.35 |
| Max Drying Temperature | 60-80 |
| Oil consumption (L/unit) | 6-8 |
| Power (kw) | 22.5 |
| Suitable Automobile Type | Mid-Size Bus |
--Wall panel :sandwich style,δ=50mm,polystyrene .(rock wool as optional)
--Basement:steel structure,full grids.
--Ramp:2pcs of grids.
--Door:3 pcs of front door without aluminum side cover.1 pc of emergency door with pressure lock.
--Frame:steel ,powder coated.
--One 11kw intake fan .One 7.5kw exhaust fan.11kw exhaust fan as optional. Intake duct as optional.
--5m straight exhaust ducts,one 90° bend,and one 60°bend,5m straight chimney and 2 small bends.
--Spraying/baking transition damper:automatically air controlled.
--Heat exchanger:stainless steel.Burner: RIELLO Brand Burner.
--Roof filter:8pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--5pcs of floor filter and 2pc of M style air mouth filter .
--Upper light:12sets,4*40w per set.Side light:10sets,4*40w per set.
--Control box: imported components,overload,overheat,phase-lacking protection,straight driven motor.

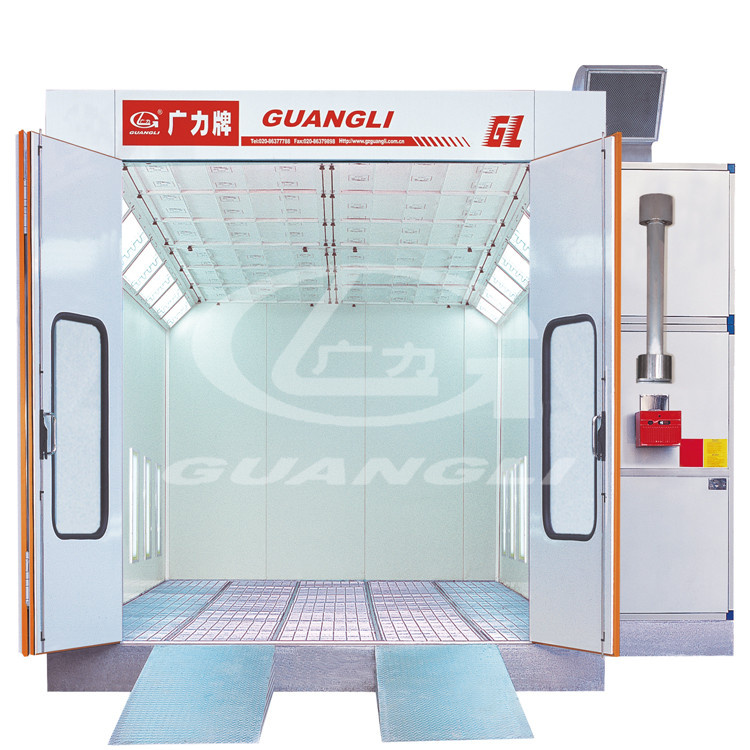

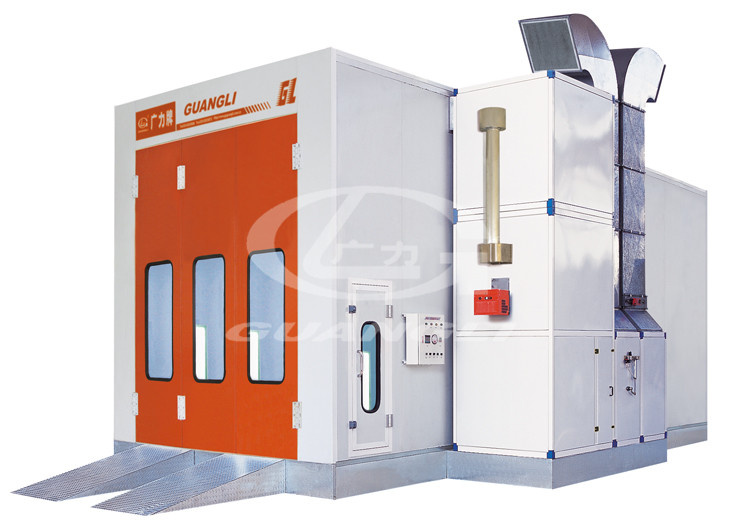

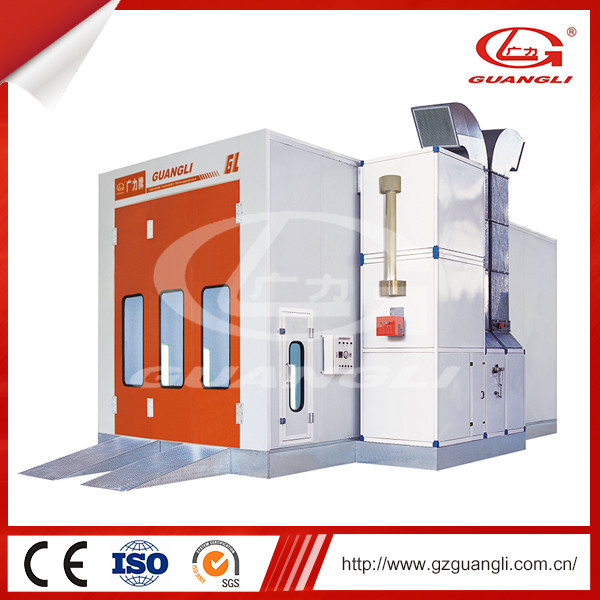

--Automatically stop when preset time is up.--Constant temperature spraying.-- 22.5kw power.Guangli Spray Booth Show
Other product series
Company Profile
GZ GUANGLI EFE CO.,LTD is a professional spray booth and car lift manufacturer in China wtih more than 22 years technical and production experience.
Founded in 1994, Guangli has our own enterprise headquarters,which covers 58,000M2of grounding area and 36,000M2of building area.
GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, having a good reputation among Chinese auto-maintenance enterprise. The sales volume of spray booth ranks top in this field over years.

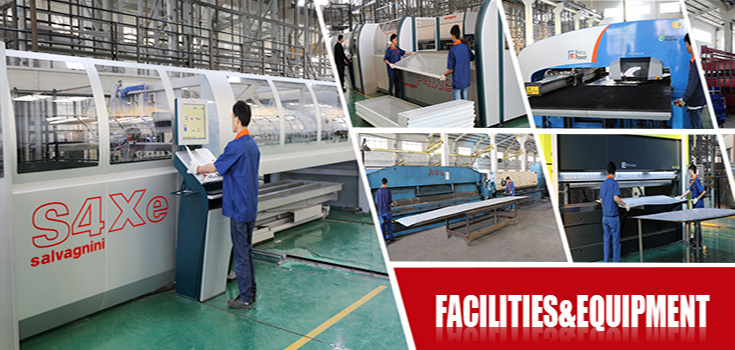

EquipmentWe have imported a Full-auto production line and many facilities from Europe, owning the most advanced production equipment in China.
Exhibition
Service after the SaleOur relationships with our customers don't stop once the product has been installed. Guangli offers many options for service and maintenance, and provides a full line of replacement parts and filters to ensure your products operate at peak efficiency. FAQQ1. What is your terms of packing?
A: Generally, we pack our goods in Iron frame packing and Carton packing.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery
time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.Contact Information:
