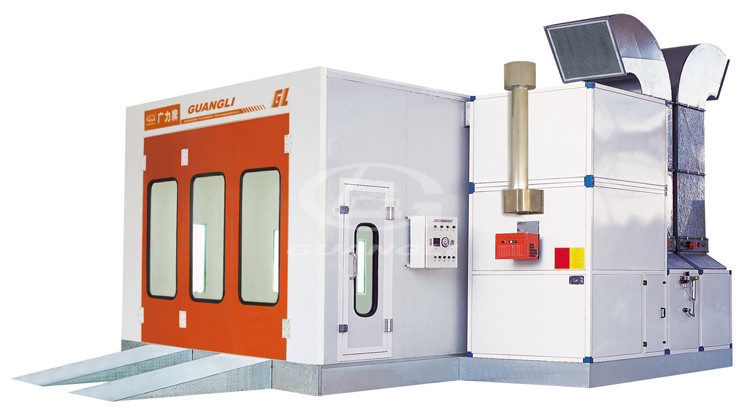

Professional Factory Supply High Quality Popular Durable Car Paint Booth with CE (GL4000-A3)
Guangli Spray Booth Description--Wall panel :sandwich style,δ=50mm,rock wool available as required.
--Basement :steel strucutre,full grids. Ramp:2 pcs of grids.
--Door:3 pcs of front door without aluminum side cover.1 pcs of emergency door with pressure lock.
--One unit of 11kw intake fan and one unit of 11kw exhaust fan.
--Water soluble paint with hot-air acceleration system: 1 set
--4m straight exhaust ducts,one 90° bend,and one 60°bend,5m straight chimney and 2 small bends.
--1 manual VCD exhaust /intake damper,electrical VCD as optional. One pressure meter.
--Spraying/baking transition damper,automatically air controlled.
--Heat exchanger:stainless steel.Riello /RG5S burner.
--Roof filter:6 pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--5 pcs of floor filter and 2 pcs of air mouth filter.
--Upper light :10sets,4*40W per set. side light:8sets,4*40w.
--Control box: imported components,overload,overheat,phase-lacking, phase-locking protection,engine Y/△ start.
--Automatically stop when preset time is up.
--Constant temperature spraying.| Model | GL4000-A3 |
| External size (m)(LxWxH) | 7.0x5.6x4.0 |
| Internal size (m)(LxWxH) | 6.9x3.9x2.7 |
| Entrance Width(m) | 3.0 |
| Entrance Height(m) | 2.66 |
| Fan capacity( m 3 /h ) | 30000 |
| Air velocity (m/s) | 0.3-0.5 |
| Drying Temperature | 60-80 |
| Oil consumption (L/unit) | 6-8 |
| Power (kw) | 26 |
| Suitable Automobile Type | Saloon Car |

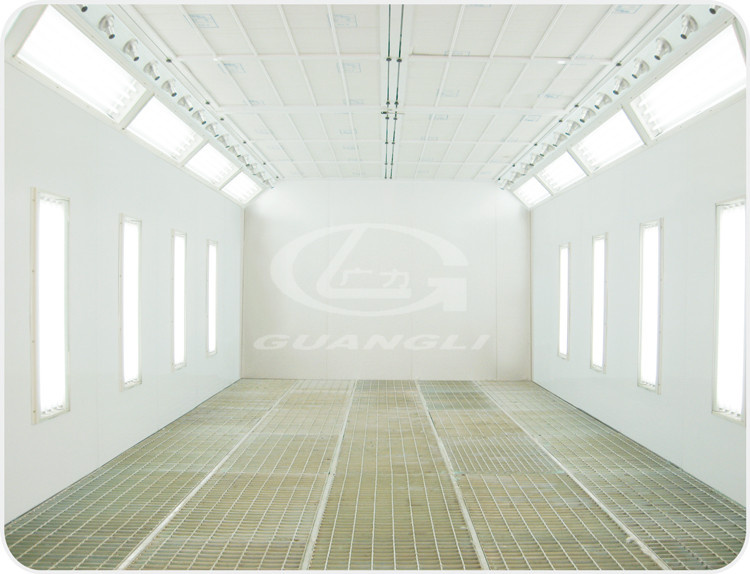

Guangli Spray Booth Show
Company ProfileGZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, having a good reputation among Chinese auto-maintenance enterprise. The sales volume of spray boothranks top in this field over years. Our products have been used in many car manufacturers' and thought highly of:Guangzhou Honda,Dongfeng Honda,FAW Toyota,Dongfeng Peugeot,Dongfeng Nissan,BMW South China etc.
EquipmentWe have the most-advanced sheet metal production line imported from Europe and have achieved the world-class production level among this industrial.
Exhibitions
FAQ:
1.Q:Are you Manufacturer or Trading company?
A:We are a professional manufacturer with our own export department.
2.Q:Where is your company located? How can I visit there?
A:Our company is located in Guangzhou.All clients, from home and abroad, are warmly welcomed to visit us.
3.Q:How about the quality of the products?
A:With the advanced machines, strong and professional R&D team and material
sources,our products are excellent in performance and craftsmanship.
4.Q:Can we customize our product?
A:Yes,you can.Customized material and standard are acceptable. We can provide
different standards according to your market and favor.
5.Q:What's the MOQ for each items?
A:We accept one piece/set each time.
6.Q:What's the delivery time?
A:If the product you ordered is our standard configurations, it's 7 workdays.
Why Choose Us
1.More than 20-year experience in Spray booth and car lift field.
2.Superb unique technology and Automatic production line.
3.Large order can be placed.
4.Advanced equipment and exquisite workmanship.
5.Durable and reliable.
6.Excellent pre-sales and after-sales service. Warmly Welcome to Contact:
Sunnie Di
Tel:+86-20-86378972
Website:www.gzguangli.com
| Prod Model: |
GL4000-A3 |
| Door Width(M): |
3.0 |
| Door Height(M): |
2.66 |
| Air Flow (M3/H): |
30000 |
| Lighting System: |
Upper Light and Side Light |
| Filters: |
High Efficiency Filter |
| Color: |
Red Blue Orange White |
| Usage: |
Car Painting Baking |
| Vehical Suited: |
Saloon Car |
| Warranty: |
Yes |
| Heating System: |
Riello Brand Diesel Burner |
| Certification: |
GS |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Painting Spray Booth |
| Brand: |
Guangli |
