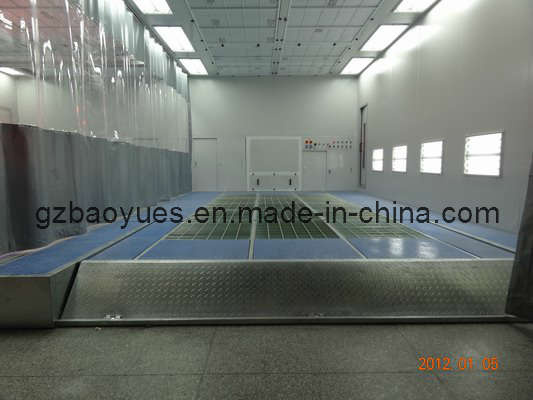

Prep Station with Pneumatic Ramps
Price: |
US $ 3100-4999Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1Set |
Pay Type: |
L/C,T/T |
The standard prep station for car polished, sanded, base coat, top coat and painting, with light system, intake and exhaust system, control system, purification system, also can add the heating system.
Outside Dimension | 8150× 4000× 3400mm(L× W× H) (for 1 set, 2 sets combination in this project) |
Inside Dimension | 6900× 3900× 2650mm(L× W× H) (for 1 set, 2 sets combination in this project) |
Plenum Dimension | 6900× 3900× 450mm(L× W× H) (for 1 set, 2 sets combination in this project) |
Basement | 300mm galvanized steel basement, with grilles (made by flat bar and twisted steel then galvanized) in the center, around with indented plates, with pneumatic inside ramps. |
Emergency door | 1 unit, 650× 1800mm, color: white |
Room Body | Back side, left side and right side with 50mm EPS wall panels, front side and in the other with PVC curtains, with short wave infrared lamp inside. |
Light system | Ceiling lights 8units× 4pcs=32pcs 36W (for 1 set, 2 sets combination), with electronic ballasts |
Side lights 4units× 4pcs=16pcs 20W (for 1 set, 2 sets combination), with electronic ballasts |
Generator cabinet | Exhaust from rear side; square steel frame, white coated steel cover, with tools cabinets |
Intake and Exhaust System | 1 unit 7.5KW double intake centrifugal fan, model YDW-4.5M, air capacity: 21000 m 3 /h, electric damper for exhausting. |
Purification System | Pre-filter, high efficiency filter, exhaust fiberglass filter |
Roof | Galvanized steel plates |
Control System | Fan operation switch, lighting switch, emergency stop; |
Total Power | 9KW |
Prod Model: |
BY-30 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Lights: |
LED |
Fan: |
Turbo Fan |
Control: |
Schneider |
Certification: |
CSA |
Airflow Direction: |
Fully Undershot-type |
Heating Mode: |
Diesel |
Paint Mist Treatment: |
Dry-type |
Condition: |
New |
Baoyue started since 2011, the company specilize in the design, manufacture and sale for auto spray/backing booth, industry painting equipment, high temperature drying plant, The products with international design standard, latest manufacture technology. The engineer, factory director, manager, sales director etc all engaged in this industry more than 15 year.
As a professional manufacturer, we have rich experience, supply all kinds of good quality spray booth, prep station and car lift etc, with the certificate of CE, ISO, SGS, CCS etc. Factory located Guangzhou, Huadu district, which is modern car industry production park, have convenient transport facilities. The area for working and manufacturing more than 19, 000, staff more than 90, including the techinican team more than 9, after service team more than 10. The workshop including many cutting machine, pumting machine, bending machine, welding machine etc, with water curtain paint booth, powder coating booth, high temperature oven.
We have attended Automechanika Shanghai 2012, 2013, 2014, 2015, 2016, and Beijing exhibition 2012, 2013, 2014, 2015, with large confidence to show our spray booth.
We wish to establish the good cooperation relationship with you, not for once or twice, but for the long term cooperation, looking forward to developing together with you in the near future. The paint booth and widely used for car, bus, truck, machine, furniture and other industry, already exported to EU, Middle East, Asia, Africa, Australia etc, and serviced BMW, Honda, Audi, Nissan, Benz, Honda, Toyota, etc, as well as the air plane company, Army, and bus manufacturer, furniture manufacturer.
