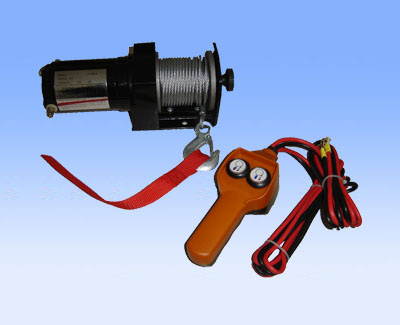

Winch model: ATV capstan CM1500-APerformance: 12V, (Single line) 1, 5001b. (680 kg)
Motor: 1.0 HP
Gearing: Differential planetary
Gear ratio: 153: 1
We have different capacities from 1500lbs to 3500lbs.
Feel free to contact us for more details.
| CM1500-A |
| Performance | 12V |
| Rated line pull(Single line) | 1,5001b.(680 kg) |
| Motor | 1.0 hp |
| Gearing | Differential planetary |
| Gear ratio | 153:1 |
| Wire Rope | 5/32"x 25'(4mm x 7.6m) |
| Dimensions | L x W x H (285 x 105 x 105mm) |
| NW/GW | 18kg/20kg(4pc) |
| MEAS | 48 x 34 x 34cm(4PC) |
| Electric winch wih permanent magnetic motor |
| Model | Capcity | Power | Steel cable | Size (L X W X H) | NW |
| CM1500-A | 1500LB | DC12V | F 4mm X 7.6m | 285 x 105 x 105mm | 4KG |
| Pull, Speed, Amperes, Volts (First Layer) |
| Line Pull (lbs./ kg) | Line Speed FPM(m/min) | Motor (Amps) |
| 0 | 10.5ft ( 3.2m ) | 8 |
| 500 (227) | 9.2ft ( 2.8m ) | 30 |
| 1,000 (454) | 7.5ft ( 2.3m ) | 60 |
| 1,500 (680) | 5.2ft ( 1.6m ) | 90 |
| Line Pull And Rope Capacity In Layer |
| Layer | Rated Line Pull (lbs./kgs) | Tatal Rope On Drum (ft/m ) |
| 1 | 1500 (680) | 6.5 (2.0) |
| 2 | 1227 (557) | 14.0 (4.3) |
| 3 | 937 (425) | 23.5 (7.2) |
| 4 | 900 (408) | 25.0 (7.6) |
WHY YOU MUST CHOOSE US:1. We are a professional winch factory with many years of experiences.2. We have advanced facilities for production, many accessories of the winch are made by ourselves with good quality.So good quality but reasonable price on the market.3. We are a honest manufacture with many certificates like CE certificates which can assure the quality of our products.4.We have a lot patent certificates which show our strong research productivity,making winches styles advance with the times,guaranteeing your quick development and sales in your market.
5. We have strong engineering team that can give best solution for your projects,6. We can OEM for your products.Don't hesitate to contact us-Such a excellent business partner!Let's get win-win in our long-term cooperation.Any questions,just talk to us.
Established in 2009. Ningbo Chima Winch Co., Ltd covers 15, 000 Square meters, and is determined to be a professional winch manufacturer specializing in electric winches, hydraulic winches, hand winches and winch accessories. We boast a great team of fully experienced engineers, sales, quality control, purchasing and producing force. Thanks to rich knowledge and long history in finish machining, we are proud to ensure the quality of our products. We have many domestic patents and international patents on our multi-functional winches and other devices.
Twenty more patents in China. Two patents in USA. One patent in Australia.
Multifunctional winches are winches with additional functions of air inflation and pressure washer based on the winch, we call them Air compressor winch and Pressure washer winch. It is an innovative idea in winch by scientific design, novel structure, reliable performance as well as convenience in use.
With strong belief that a company' s life lies in creativity and innovation, we have been dedicating ourselves to the R&D of new products.
We also have implemented and been maintaining the quality management system according to TS16949 standards, and we are applying to be certified
Customer always comes first, we listen to our customers and hope that we will impress you with real quality and competitive prices.
We are looking forward to establish successful business relationships with clients all around the world in near future.
If you need WINCH, you just find us. We will support you strongly.
You focus on the best. While we do the rest.
Thank you for attention! Appreicated.
