Portable Outdoor Car Turntable(SJC)

Brief Introduction:
AUTOMOBILE TURNTABLES FOR HOME OR SHOW

RESIDENTIAL DRIVEWAY TURNTABLES SOLVE PARKING CHALLENGES

No need to risk backing into traffic when you have a CarTurner vehicle turntable. Just drive on, push the remote control (like a garage door opener) and the car turntable rotates you safely and easily, so you can drive off head-first. Car turners help eliminate accidents and property damage, and protect children from harm. Turn your parking stress into pride of ownership with this practical and classy upgrade for your home. No digging required as the car turner mounts on the surface of your existing driveway.

SHOW TURNTABLES FOR DEALERSHIPS AND AUTO BARNS

A vehicle in motion attracts 3 times the attention of the same vehicle sitting still. Are you losing sales to more innovative dealerships? Are you tired of having someone else's car attracting all the attention at the car shows? The Car Turner mirror finish show turntable is a stunning addition to your showroom. It reflects your cars quality from every angle. The revolving reflection leaves the onlookers virtually spellbound. Take a look at the pictures and you will quickly see the impressive effect offered by the mirror finish showroom turntable.


Main feature:

1.Pin-Gear drive mechanism, ensuring the smooth revolving, reliable operation, low noise,long life

and minimal wear and tear.

2.Surface medium density fibre board, steel plate, diamond tread aluminum alloy available.

3.Max. diameter 35000mm available

4. Rotate any 360 degree

5. Made by steel, FOB Qingdao

6. 3 years warranty!!!

Car turntable, Vehicle Turntables, Automobile Turntables, Parking Turntables, max 35000mm diameter

Reference parameter:

Diameter	4000mm	4500mm	5000mm	5500mm	6000mm	6500mm	7000mm
Height	150-320 mm	150-320 mm	150-320 mm	150-320 mm	150-330 mm	150-330 mm	150-330 mm
Speed of turning	0.2-1rpm	0.2-1rpm	0.2-1rpm	0.2-1rpm	0.2-1rpm	0.2-1rpm	0.2-1rpm
Load capacity	2000kg	2500kg	3000kg	3500kg	4000kg	4500kg	6000kg
power	0.55kw	0.55kw	0.55kw	0.75kw	0.75kw	0.75kw	0.75kw
Transmission mode	Pin-Gear drive mechanism
Platform material	1.22mm Density Fiberboard 2.steel plate 3.Pattern aluminum plate 4.Tempered glass(choose any one)
Control system	360 Rotation,button control/remote control/PLC control
Other diameter,height,speed of turning,load capacity,pls tell us,we can design and product it for you,thanks

turntable data:

Item no.	Type	Car turntable
Vehicle size	5000*1850*1550
Single Vehicle Weight (kg)	≤2000
Turning plate diameter	4500
Drive Mode	Electric Motor
Speed of turning plate	2r/min
Turning angle	360°any direction
Power source	380V,50HZ,3P/220V,50HZ,3P/other local power
Power coverage	0.75KW
Control System	Push Button, Remote Control or PLC

Company Information:
Welcome to Moral lift,we are professional manufacturer for SCISSOR LIFT,FREIGHT LIFT,DISABLED LIFT,CAR TURNTABLE,PARKING LIFT,LOADING RAMP AND WORK PLATFORM.  We are a member company of China's Association of Warehouse and Storage. We have fine equipment,advanced technology and complete testing equipment. Welcome to your inquiry,pls tell us your load capacity, platform size and travel height,we can customize for you,thanks!

Look forward to having opportunity to cooperate with all of you around the world!

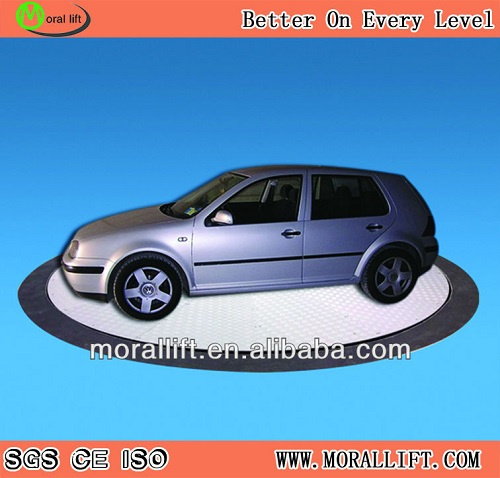

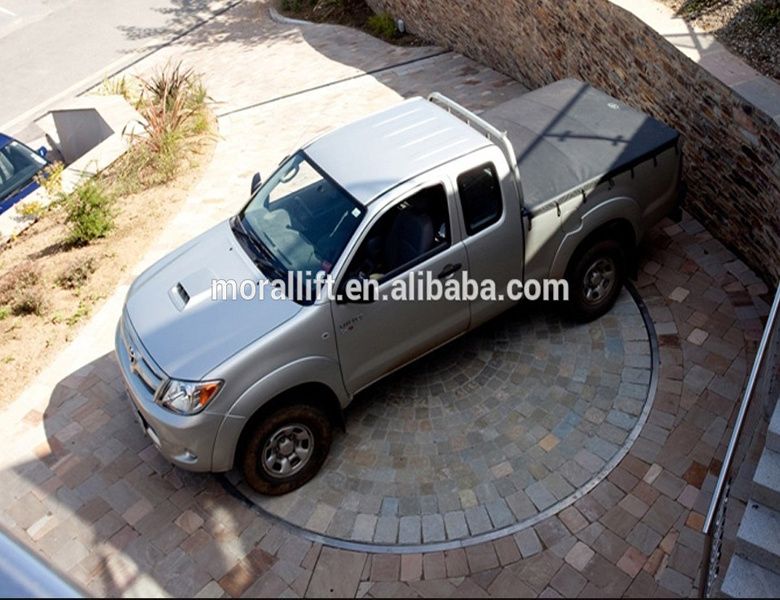

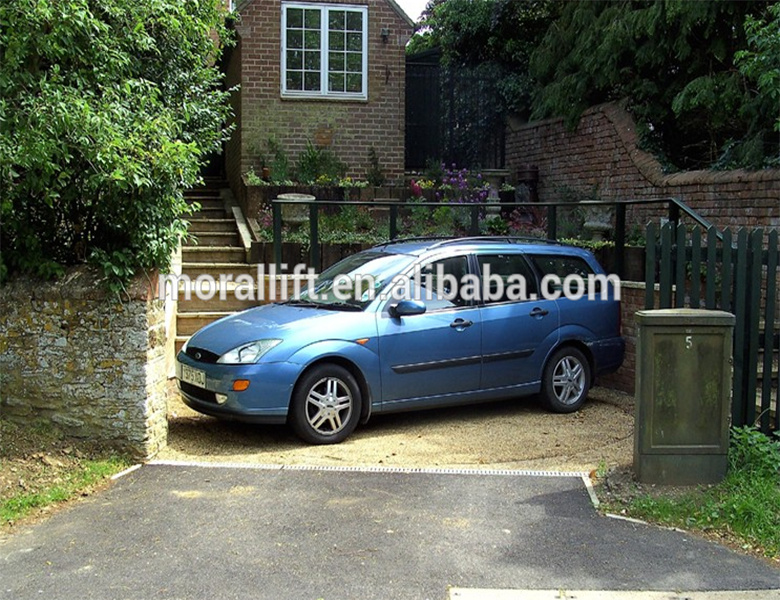

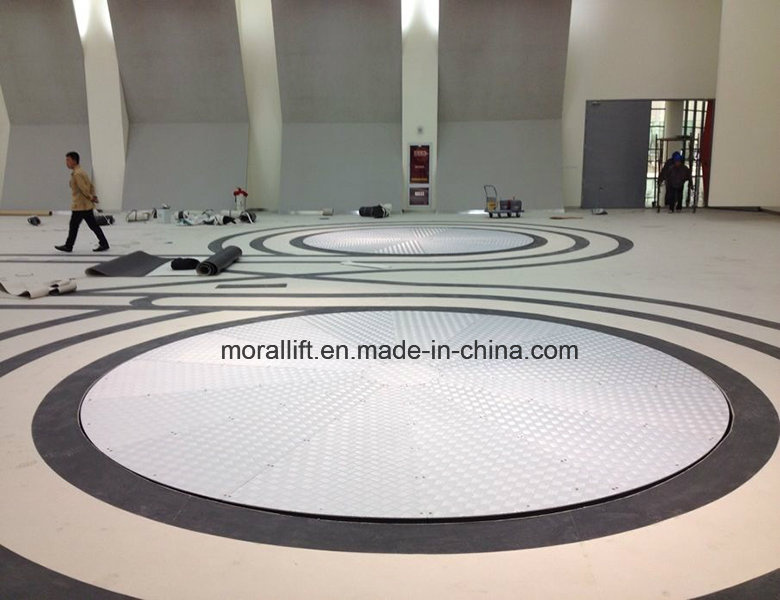

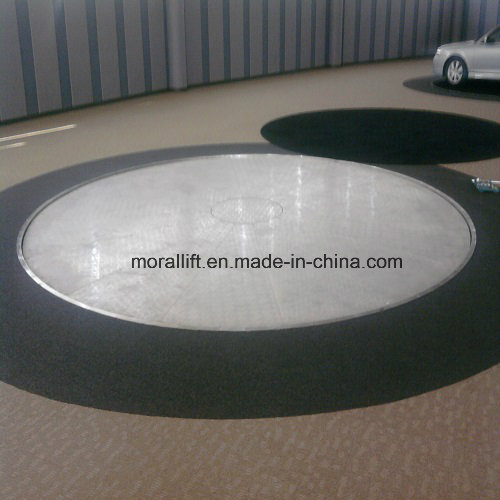

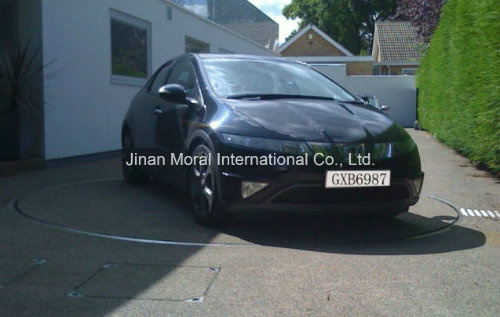

Product Photos:









Our services:
1)All machines sold will be tested before shipment;
2)One year warranty without man-made fault;
3) 24hours technical support by email, telephone or video online.
4) User-friendly English manual for machine using and maintain.
5) Spare parts will be offered for free within warranty.
6)Professional consulting services team
7)Experienced product testing team
8)Advanced Technology team on the product line
9)After-sales Service Provided
10)Standard export packaging
11)Fast handling after confirmed order
