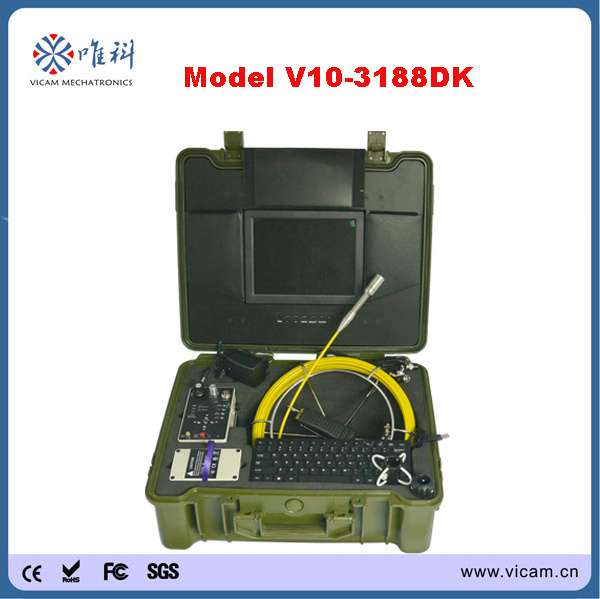

Portable CCTV Pipe Inspection Camera System with DVR Device and Keyboard

Portable CCTV pipe inspection camera system with DVR device and keyboard

CCTV pipe inspection camera listing description

10 inch HD LED monitor
Stainless steel CMOS camera head with 2 different size skids
20m fiberglass push rod cable with stainless steel cable reel
DVR control box with A/V & photo selection available
Removable splashproof keyboard
6600mAh Li-ion battery pack
ABS engineering carrying case
CCTV pipe inspection camera product description

Camera Head
* Camera head size Φ 23 X 45mm for pipe Φ 25 to 200mm
* Camera head housing material stainless steel
* Camera lens cover material sapphire glass
* Sensor size 1/4 inch
* Total Pixels PAL 720X576 NTSC 720X 480
* Field of view 120°
* Camera lighting 12 white LEDs

Monitor
*10 inch HD LED monitor
* Power supply DC 12V

DVR Control Box
* DVR power supply 12V DVR work current 200mA
* Storage medium SD card (8G SD card included)
* Li-ion Battery power supply (18650 X 9 PCS 6600 mAh)
* Charging time 5 hours, working time 6 hours
* USB jack for Keyboard
* MIC on / off button and earphone output jack ( earphone bud included)

Cable Reel
* Stainless steel Cable Reel size Φ 320 X 110mm
* 20m Φ 5.2mm fiberglass rod push cable (30m, 40m optional)

Carrying case
* ABS engineering carrying case size: 520 X 435 X 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum

Company information

Backed by Cyberia SAS and Shenzhen Institutes of Advanced Technology
Vicam Mechatronics Co. Ltd is located in Shangxue Industrial Park in Shenzhen, south China, specializing in the design, manufacture and assembly of video inspection systems. We have introduced international advanced technology, and designed and produced various video inspection cameras. Most of our products sell well in Europe, the US, Australia, the Middle East, South Africa and South America. In the process of development, we have got very important technical support from Cyberia SAS and Shenzhen Institutes of Advanced Technology.

Can be Used in Complex Applications and Hazardous Areas
Our main product range includes portable pipeline video inspection systems, industrial and city underground pipe video inspection systems, special video inspection cameras and CCTV robots for complex applications and hazardous area rated environments.

Our tenets are to rely on the advanced technology, to meet the global market demand, and to provide good quality products and good services to all our customers.

Contact Us Today
For more information about our products and services, visit our Made-in-China Online showroom and then contact me.

Our Service:

1. Your any inquiries will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. Distributoership are offered for your unique design and some our current models.
4. Best Quality & Best Service with competitive price.
5. All regular products can give 2 years warranty.

Our Company:

1. We are China leading and professional pipe inspection camera Manufacturer.
2. Our product quality policy is that each shipment with 2 years guarantee and 7 days unconditional returns.
3. Positive team with full experiences in product specification and producing.

Application:

1. WATER SUPPLY
2. WASTE WATER
3. ELECTRICAL AIR CONDITIONER
4. CABLE DUCTING
5. DUCTED VACCUM SYSTEMS
6. PLUMBING
7. IN BUILDING
