Port Use Tyre Rtg Crane Tyre 21.00-35 21.00-25 16.00-25

Name: Port Use Tyre Rtg Crane Tyre 21.00-35 21.00-25 16.00-25
Brand: ibuyautoparts.com
SKU: 732374462
Availability: InStock
Rating: 4.7 (55 reviews)

Price:	US $ 800-1600/Piece
Min Order:	2/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

The Port use tyres are suitable for heavy forklift trucks, Airport aircraft tractor, Empty container handler, Reach Stacker, Straddle Carrier, RTG Crane and other port equipments.

Advantages
1. Special Rubber Compound make tyre have low heat generation, good wear resistance and longer service life.
2. Reinforced tyre body and special tyre bead design, the tyre have very high torque and high load ability.
3. Wider tread surface, deeper pattern, tyre have good grip ability, good brake performance and safety operation.
4. Top level quality Port industrial tyres in China, excellent performance, few quality problems, tyre body can be retread for several times.

Size and Specification Sheet

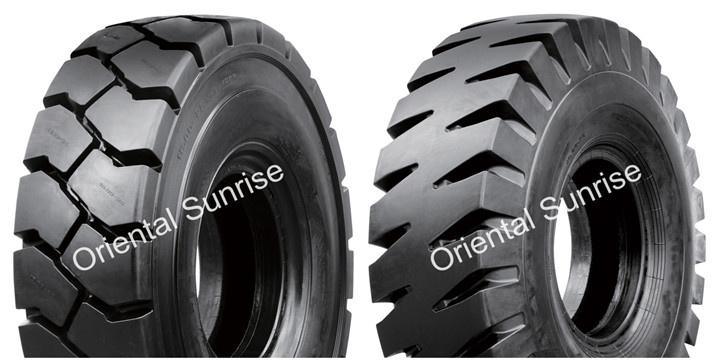

E-4 & E-4A (IND-4)
Deeper tread pattern design, longer service life, reduce downtime and save cost. These pattern tyres are especially suitable for reach stacker, airport aircraft tractor applications.

Size	PR	Pattern	Tyre	T.D (mm)	Std. Rim	Inflation Pressure		LOAD CAPACITY AT VARIOUS SPEED								S.W. (mm)	O.D. (mm)
									0km/h	5km/h	10km/h	15km/h	20km/h	25km/h	30km/h
									Static	3mph	5mph	9mph	12mph	15mph	19mph
18.00-25	40	E-4	TL	69	13.00/2.5	1000	kPa	kg	30600	24650	22950	22100	21590	21250	21080	526	1673
18.00-25	40	E-4	TL	69	13.00/2.5	145	psi	lbs	67470	54350	50610	48730	47610	46860	46480	526	1673
16.00-25	36	E-4	TL	62	11.25/2.0	1100	kPa	kg	24090	19470	18060	17400	16980	16705	16535	432	1548
16.00-25	36	E-4	TL	62	11.25/2.0	160	psi	lbs	53105	42915	39810	38360	37440	36840	36470	432	1548
16.00-25	32	E-4	TL	62	11.25/2.0	1000	kPa	kg	22100	17800	16600	16000	15600	15350	15195	432	1548
16.00-25	32	E-4	TL	62	11.25/2.0	145	psi	lbs	48730	39240	36595	35280	34430	33880	33540	432	1548
16.00-25	28	E-4	TL	62	11.25/2.0	900	kPa	kg	20700	16675	15525	14950	14605	14375	14260	432	1548
16.00-25	28	E-4	TL	62	11.25/2.0	130	psi	lbs	45640	36770	34230	32970	32200	31700	31440	432	1548
14.00-25	28	E-4	TT	57	10.00/1.5	1000	kPa	kg	18000	14500	13500	13000	12700	12500	12400	386	1417
14.00-25	28	E-4	TT	57	10.00/1.5	145	psi	lbs	39690	31970	29770	28670	28000	27560	27340	386	1417
14.00-24	32	E-4	TT	57	10.00	1100	kPa	kg	19605	15845	14700	14160	13820	13600	13460	386	1417
14.00-24	32	E-4	TT	57	10.00	160	psi	lbs	43220	34925	32400	31200	30450	29960	29660	386	1417
14.00-24	28	E-4	TT/TL	57	10.00	1000	kPa	kg	18000	14500	13500	13000	12700	12500	12400	386	1417
14.00-24	28	E-4	TT/TL	57	10.00	145	psi	lbs	39690	31970	29770	28670	28000	27560	27340	386	1417
12.00-24	24	E-4	TT	54	8.5	1000	kPa	kg	13600	11000	10250	9850	9650	9500	9400	333	1300
12.00-24	24	E-4	TT	54	8.5	145	psi	lbs	29980	24250	22595	21715	21265	20940	20720	333	1300
12.00-20	24	E-4	TT	45	8.5	1000	kPa	kg	14260	11510	9800	9440	9230	8250	8180	340	1173
12.00-20	24	E-4	TT	45	8.5	145	psi	lbs	31430	25370	21600	20800	20340	18180	18030	340	1173
10.00-20	18	E-4	TT	40	7.5	1000	kPa	kg	9630	7780	7255	6990	6830	5520	5480	300	1097
10.00-20	18	E-4	TT	40	7.5	145	psi	lbs	21220	17150	16000	15400	15050	12160	12080	300	1097
18.00-33	40	E-4A	TL	69	13.00/2.5	1150	kPa	kg	35600	28700	26700	25710	25120	24700	24500	509	1860
18.00-33	40	E-4A	TL	69	13.00/2.5	165	lbs	lbs	78480	63270	58860	56660	55360	54450	54000	509	1860
18.00-25	40	E-4A	TL	68	13.00/2.5	1000	kPa	kg	30600	24650	22950	22100	21590	21250	21080	528	1684
18.00-25	40	E-4A	TL	68	13.00/2.5	145	psi	lbs	67470	54350	50610	48730	47610	46860	46480	528	1684

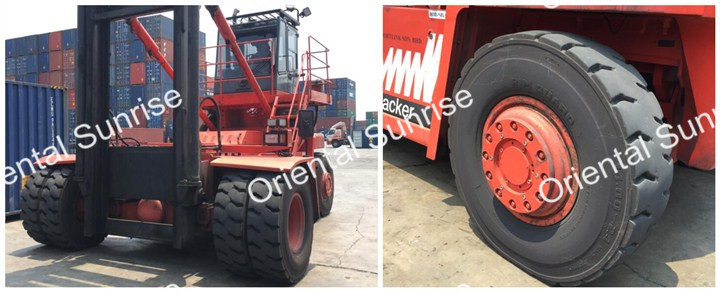

18.00-25 E-4A 40PR TYRE on Reach Stacker

E-3A (IND-3)
Reinforced structure, strong casing, high load ability and high torque, especially suitable for RTG Crane and straddle carrier.

Size	PR	Pattern	Tyre	T.D (mm)	Std. Rim	Inflation Pressure		LOAD CAPACITY AT VARIOUS SPEED								S.W. (mm)	O.D. (mm)
									0km/h	5km/h	10km/h	15km/h	20km/h	25km/h	30km/h
									Static	3mph	5mph	9mph	12mph	15mph	19mph
21.00-25	44	E-3A	TL	42	15.00/3.0	1150	kPa	kg	39580	31860	29950	28480	27800	27360	27140	572	1750
						165	psi	lbs	87230	70230	66000	62770	61270	60300	59810
21.00-25	42	E-3A	TL	42	15.00/3.0	1030	kPa	kg	37370	30200	28000	27000	26360	25940	25730	572	1750
						150	psi	lbs	82360	66600	61710	59500	58100	57170	56700
18.00-25	44	E-3A	TL	41	13.00/2.5	1030	kPa	kg	32290	25990	24110	23240	22700	22340	22160	510	1636
						150	psi	lbs	71170	57300	53140	51220	50000	49230	48840
18.00-25	40	E-3A	TL	41	13.00/2.5	1000	kPa	kg	30600	24650	22950	22100	21590	21250	21080	510	1636
						145	psi	lbs	67470	54350	50610	48730	47610	46860	46480

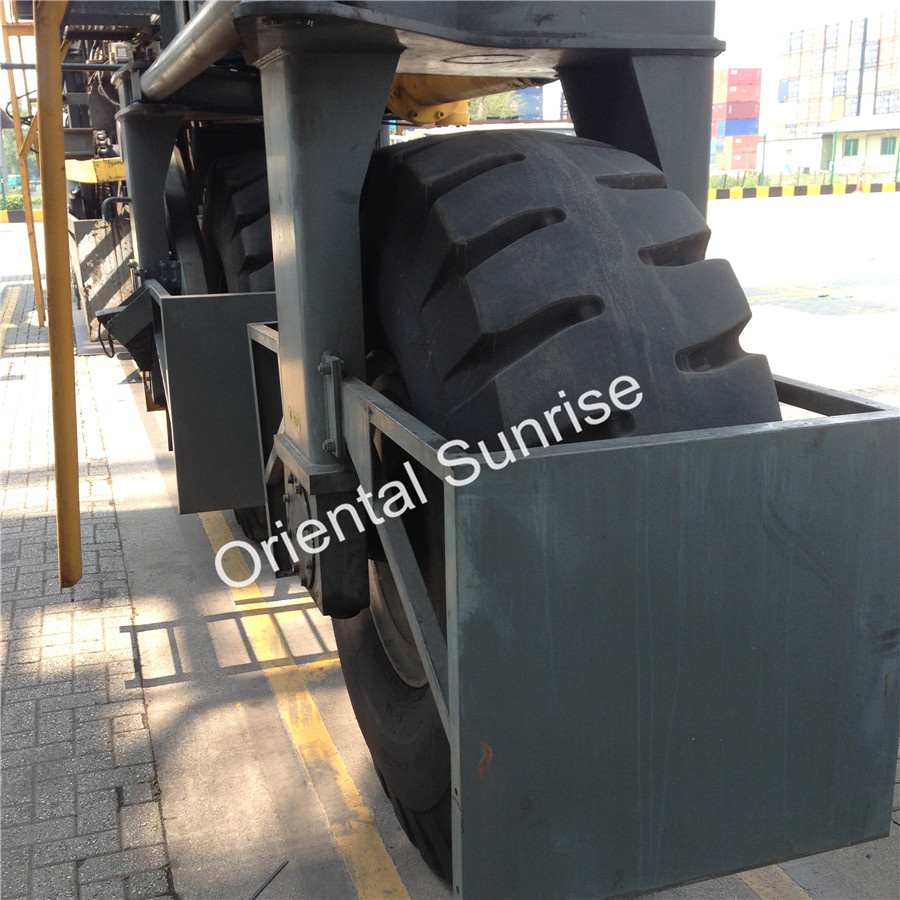

21.00-25 42PR E3A TYRE ON RTG CRANE

L-4S & L-5S

Size	PR	Pattern	Tyre	T.D (mm)	Std. Rim	Inflation Pressure		LOAD CAPACITY AT VARIOUS SPEED								S.W. (mm)	O.D. (mm)
									0km/h	5km/h	10km/h	15km/h	20km/h	25km/h	30km/h
									Static	3mph	5mph	9mph	12mph	15mph	19mph
18.00-25	40	L-4S	TL	58	13.00/2.5	1000	kPa	kg	30600	24650	22950	22100	21590	21250	21080	526	1673
18.00-25	40	L-4S	TL	58	13.00/2.5	145	psi	lbs	67470	54350	50610	48730	47610	46860	46480	526	1673
21.00-25	40	L-5S	TL	97	15.00/3.0	1000	kPa	kg	36386	29311	27290	26279	25672	25268	25066	617	1798
21.00-25	40	L-5S	TL	97	15.00/3.0	145	psi	lbs	80230	64630	60170	57950	56610	55720	55270	617	1798
18.00-25	40	L-5S	TL	85	13.00/2.5	1000	kPa	kg	30600	24650	22950	22100	21590	21250	21080	538	1673
18.00-25	40	L-5S	TL	85	13.00/2.5	145	psi	lbs	67470	54350	50610	48730	47610	46860	46480	538	1673
14.00-25	28	L-5S	TT/TL	77	10.00	1000	kPa	kg	18000	14500	13500	13000	12700	12500	12400	386	1417
14.00-25	28	L-5S	TT/TL	77	10.00	145	psi	lbs	39690	31970	29770	28670	28000	27560	27340	386	1417
14.00-24	28	L-5S	TT	74.5	10.00	1000	kPa	kg	18000	14500	13500	13000	12700	12500	12400	386	1417
14.00-24	28	L-5S	TT	74.5	10.00	145	psi	lbs	39690	31970	29770	28670	28000	27560	27340	386	1417
12.00-24	24	L-5S	TT	55	8.50	1000	kPa	kg	13600	11000	10250	9850	9650	9500	9400	333	1300
12.00-24	24	L-5S	TT	55	8.50	145	psi	lbs	29980	24250	22595	21715	21265	20940	20720	333	1300
12.00-20	28	L-5S	TT	67	8.5	1030	kPa	kg	13440	10975	10250	9910	9690	9520	9400	330	1173
12.00-20	28	L-5S	TT	67	8.5	150	psi	lbs	29620	24200	22590	21840	21355	20980	20710	330	1173
10.00-20	18	L-5S	TT	58	7.5	1000	kPa	kg	9630	7780	7255	6990	6830	5520	5480	300	1097
10.00-20	18	L-5S	TT	58	7.5	145	psi	lbs	21220	17150	16000	15400	15050	12160	12080	300	1097
8.25-15	24	L-5S	TT	52	6.5	1030	kPa	kg	6070	4900	4550	4390	4280	4200	4100	260	864
8.25-15	24	L-5S	TT	52	6.5	150	psi	lbs	13380	10800	10030	9670	9430	9250	9030	260	864

14.00-24 E-4 28PR TYRE on Empty Container Handler

COMPANY INTRODUCTION
Oriental Sunrise Corporation Limited is a professional tyre enterprise in Shandong Province of China have more than 20 years experience specialised in manufacturing and marketing port tyre, OTR tyre, Industrial tyre, Solid Tyre, RTGC Tyre, Truck tyre and etc, products passed the certification of DOT, ECE, GCC, CCC, SNI, ISO and solid tyre meet the standard of TRA of USA, ETRTO of Europe, JATMA of Japan. Our tyres exported to America, Europe, Middle East, South East Asia countries and got sastifying performance.

LOADING OTR TYRES

WHY CHOOSE US
1. Reliable quality, get you free from quality problem, longer service life.
2. Reasonable prices, the price per hour cost is the best.
3. Market protection, we exactly know your concerns, sign sole agent contract with long term cooperation customers.
4. Fast delivery and fast market informaiton shared with agent.
5. One stop service center, meet most of customer requirements.

Prod Model:	21.00-25 21.00-35
Pattern:	E4/E4a/L4s/L5s/E3
Structure:	Bias Tyre
Warranty:	Two Years
OEM:	Available
Retread:	Available
Trade Term:	Fob/CNF/CIF
Delivery Time:	Within 30 Days
Application:	Reach Stacker/Rtg Crane/Container Hanlder
Market:	America/Europe/Australia/Asia/Africa
Size:	18.00-25/16.00-25/14.00-24/21.00-25
Type:	Tubeless
Diameter:	≥22"
Tire Design:	Bias Belted Tyre
Certification:	CCC
Tread Pattern:	Transverse Pattern
Tire Hierarchy:	40pr

Oriental Sunrise Corporation Limited is a professional tyre manufacturer located in the beautiful seaside city Qingdao of Shandong Province for years.

Specialised in OTR Tyre, Industrial tyre, Solid and Pneumatic forklift tyre, truck tyre, car tyre, not only relying on advanced technology, world class production and testing equipments, but also the spirits to put the best possible tires on the road and the desire to satisfy customer's expectation.

Nowdays, we have got most certifications in the tire industry, including DOT, ECE, CCC, ISO9001, REACH, S-MARK, TS16949, GCC, BIS, SMARTWAY, INMETRO, SNI, SASO, SONCAP, and etc.

Products exported to North America, South America, Europe, Middle East, Australia and South East Asia countries, customers are very satisfy with tire performance. Especially for port tire, quality stable and service is much longer, have advantage technology from Japan and Taiwan and tens of years experience.

Our attitude is quality first, and have long term cooperation with our business partner and grow together.
