Platform Hydraulic Scissor Lift

Name: Platform Hydraulic Scissor Lift
Brand: ibuyautoparts.com
SKU: 734477102
Availability: InStock
Rating: 4.6 (135 reviews)

Price:	US $ 1800-2000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

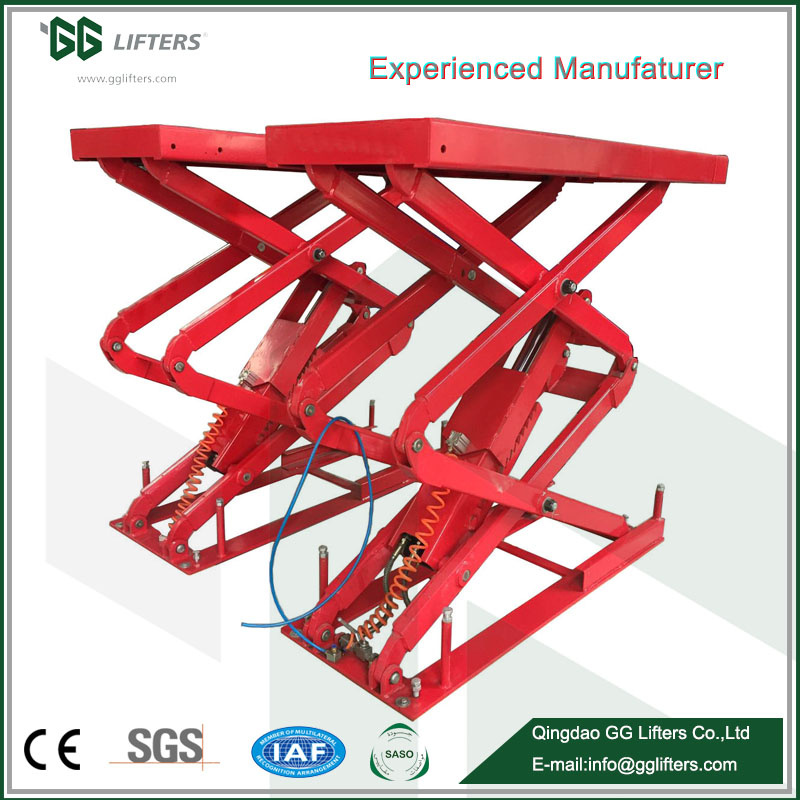

PLATFORM SCISSOR LIFT

Optional over ground or underground type

Power Unit pump the oil to the balance valve which controls the same amount of oil for the dual cylinders of the two posts , due to the valve balancing process, the two platforms can go up and down simultaneously and the height difference of the two platforms can be kept within 3mm.

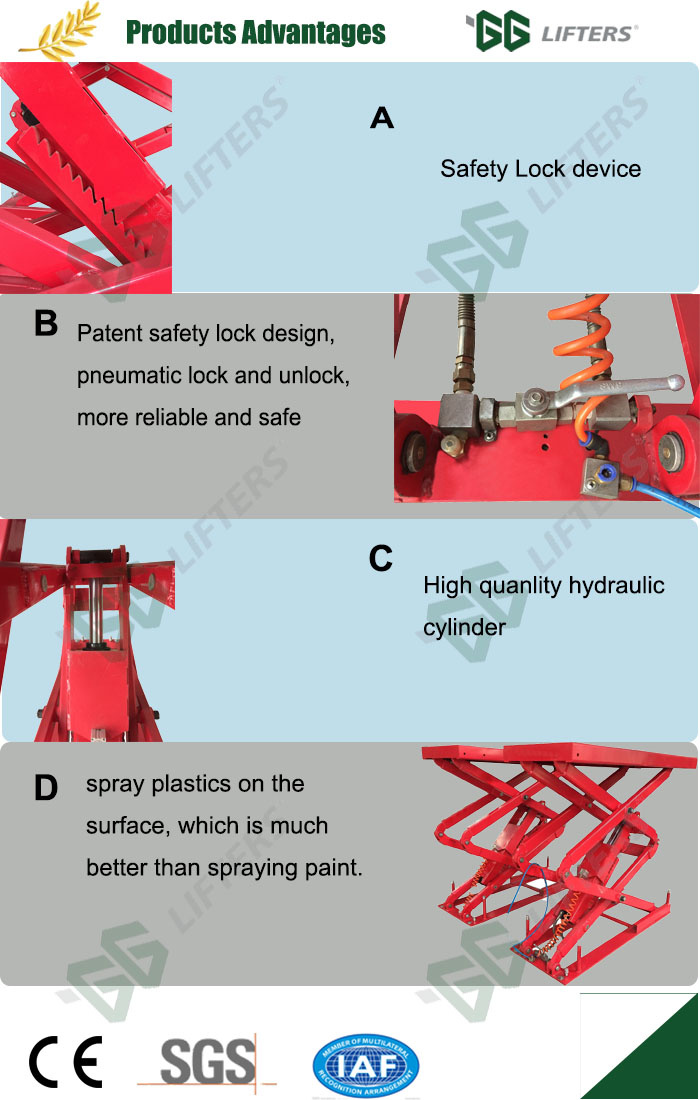

Pneumatic lock release

Extensible platforms offer different repair service.

PARAMETERS

Model NO.	LS32/2120/L	LS32/2030/L
Lifting Capacity	3200kgs	3200kgs
Max Lifting Height:	2120mm	2030mm
SAFETY LOCK	Electric unlock	Electric unlock
Outline dimension	Long3659mm x wide1975mm	Long1740mm x wide1900mm
Min height	195mm	350mm
DOCUMENTS	INSTALLATION MANUAL BOOK, USER BOOK, TROUBLE SHOOTING SHEET
TEST BEFORE SHIPPMENT, AND SHOW THE VIDEO TO CUSTOMER WITH SHIPPING LIST
Warranty:	2 years for electric parts, 5years for steel frame structure
Rise/Drop Time:	90s/75s
Power Supply/Motor Capacity	220v/380v/2.2kw OR according to customer request

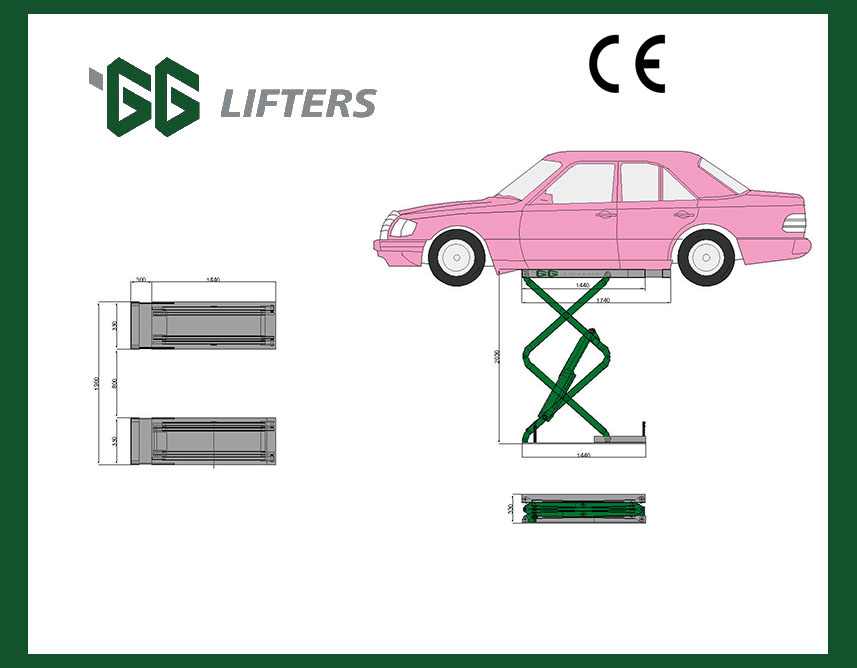

DRAWING

Photos

Prod Model:	LS32/2120/L
Rise/Drop Time:	90s/75s
Warranty:	2 Years for Electric Parts, 5years for Steel Frame
Safety Lock:	Manual Unlock
Power Supply/Motor Capacity:	220V/380V/2.2kw or Customerized
Outline Dimension:	1740mm X 1900mm
Min Height:	350mm
Max Lifting Height:	2030mm
Type:	Double Cylinder Hydraulic Lift
Certification:	ISO
Lifting Capacity:	3.2t
Brand:	GG Lifters

Qingdao GG Lifters Co., Ltd, an established Factory in Qingdao, China, with state of the art facility to design, manufacture and install world-class solutions for automated and mechanical car parking and car service lifts offered to our customers worldwide.

Our competent team in multi languages (English, Chinese, Italian, Arabic, Japanese, etc) is well prepared to anticipate, identify and exceed our customers' expectations. GG Lifters enjoys excellent experience packed with strong technical know-how using latest manufacturing machines such as CNC Plasma, Press Brake, Cutting and Welding to guarantee the quality of every single part with minimal error and meeting international manufacturing standards in all production stages.

GG Lifters through its Research and Development team is committed to provide unmatched quality yet maintaining efficient & ergonomic operation to insure producing durable and competitive parking lifts, service lifts for commercial and residential solutions.
