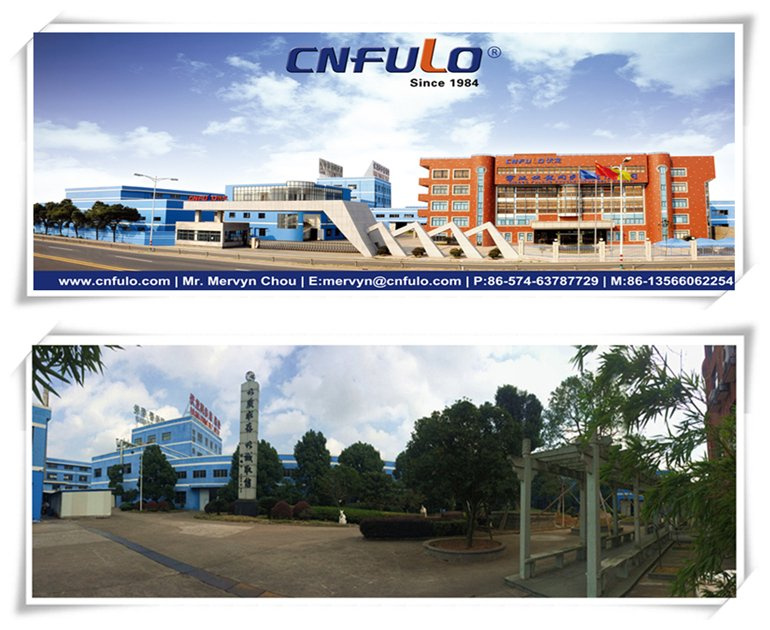

Company IntroductionFounded in 1984, FULONG covers 45,000 square meters with over 350 staff. As a national high-tech enterprise now, we passed ISO9001, TS16949. With national lab and municipal innovation center, we set over ten national and trading standards. What's more, annual output is more than 10 million pieces of belts and 600 thousand pieces of pulleys. Matched belts and pulleys make sure the life-span of products longer.
Rubber MaterialChloroprene/CRrubber Multi V-Ribbed Belt has certain cold and heat resistance, not only can be good resistance flexor flexible, anti-aging and the aging of ozone-resistant than ordinary unsaturated rubber good, but its a good oil resistance, solvent resistance and chemical stability, by adding short fiber reinforcement can withstand higher lateral pressure, wedge pressure with increasing performance, reducing stress after deformation.
EPDMMulti V-Ribbed Belt in anti-aging particularly anti-aging and ozone resistance climate, more sexual heat aging fine, but its electric insulation properties, corrosion-resistant chemical, elastic shock better (at low temperature flexibility to maintain good performance).

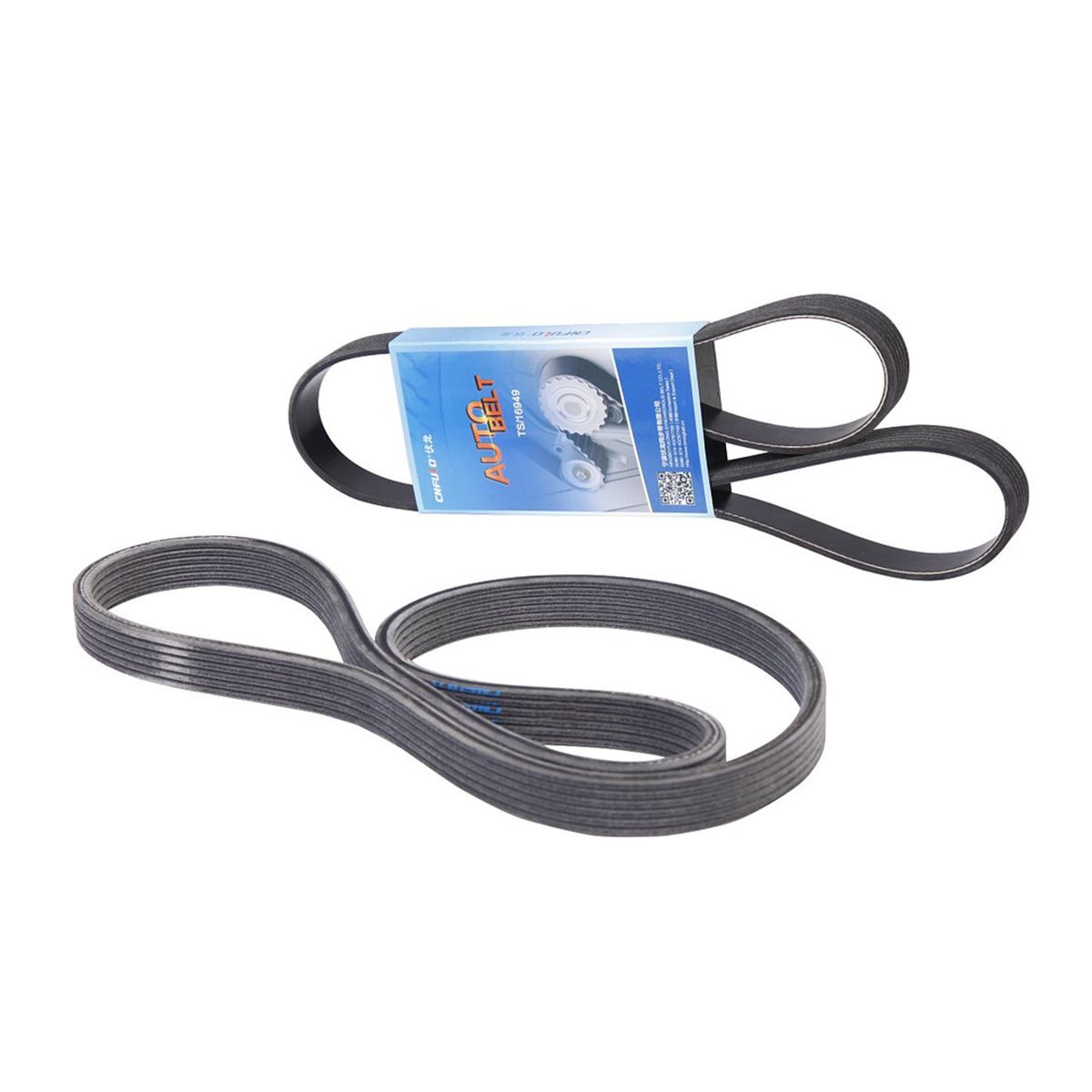

Product Description | TYPE | SUPPLY CHARACTERISTIC |
| PK | 1. CR and EPDM raw material, add fibers for more anti-friction.
2. The warranty is generally up to 50000-100000 kilometers(30000-60000 miles).
3. Can undertake many kinds of small quantity order.
4. Single specification minimum order quantity, at least for one mode of the number of nature |

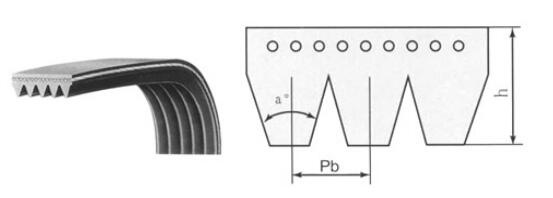

| Type | Pb/mm | h/mm | a° | Sleeve/Rib |
| PK | 3.56 | 5.0 | 40 | 120 |
Mould List for PK Belt | Type | PL(mm) | Type | PL(mm) | Type | PL(mm) | Type | PL(mm) | Type | PL(mm) | Type | PL(mm) |
| PK520 | 520.00 | PK820 | 820.00 | PK1065 | 1065.00 | PK1440 | 1440.00 | PK1460 | 1460.00 | PK2030 | 2030.00 |
| PK525 | 525.00 | PK825 | 825.00 | PK1070 | 1070.00 | PK1445 | 1445.00 | PK1470 | 1470.00 | PK2035 | 2035.00 |
| PK530 | 530.00 | PK830 | 830.00 | PK1075 | 1075.00 | PK1455 | 1455.00 | PK1475 | 1475.00 | PK2040 | 2040.00 |
| PK535 | 535.00 | PK835 | 835.00 | PK1080 | 1080.00 | PK1460 | 1460.00 | PK1480 | 1480.00 | PK2050 | 2050.00 |
| PK540 | 540.00 | PK840 | 840.00 | PK1090 | 1090.00 | PK1470 | 1470.00 | PK1485 | 1485.00 | PK2060 | 2060.00 |
| PK550 | 550.00 | PK845 | 845.00 | PK1095 | 1095.00 | PK1475 | 1475.00 | PK1510 | 1510.00 | PK2070 | 2070.00 |
| PK555 | 555.00 | PK850 | 850.00 | PK1100 | 1100.00 | PK1480 | 1480.00 | PK1515 | 1515.00 | PK2095 | 2095.00 |
| PK560 | 560.00 | PK855 | 855.00 | PK1105 | 1105.00 | PK1485 | 1485.00 | PK1520 | 1520.00 | PK2100 | 2100.00 |
| PK570 | 570.00 | PK860 | 860.00 | PK1110 | 1110.00 | PK1510 | 1510.00 | PK1525 | 1525.00 | PK2110 | 2110.00 |
| PK585 | 585.00 | PK865 | 865.00 | PK1115 | 1115.00 | PK1515 | 1515.00 | PK1550 | 1550.00 | PK2120 | 2120.00 |
| PK590 | 590.00 | PK870 | 870.00 | PK1120 | 1120.00 | PK1520 | 1520.00 | PK1565 | 1565.00 | PK2140 | 2140.00 |
| PK595 | 595.00 | PK875 | 875.00 | PK1125 | 1125.00 | PK1525 | 1525.00 | PK1580 | 1580.00 | PK2145 | 2145.00 |
| PK600 | 600.00 | PK880 | 880.00 | PK1130 | 1130.00 | PK1550 | 1550.00 | PK1590 | 1590.00 | PK2205 | 2205.00 |
| PK605 | 605.00 | PK885 | 885.00 | PK1135 | 1135.00 | PK1565 | 1565.00 | PK1600 | 1600.00 | PK2210 | 2210.00 |
| PK610 | 610.00 | PK890 | 890.00 | PK1140 | 1140.00 | PK1580 | 1580.00 | PK1630 | 1630.00 | PK2225 | 2225.00 |
| PK615 | 615.00 | PK895 | 895.00 | PK1145 | 1145.00 | PK1590 | 1590.00 | PK1635 | 1635.00 | PK2255 | 2255.00 |
| PK620 | 620.00 | PK900 | 900.00 | PK1150 | 1150.00 | PK1600 | 1600.00 | PK1640 | 1640.00 | PK2265 | 2265.00 |
| PK625 | 625.00 | PK905 | 905.00 | PK1155 | 1155.00 | PK1630 | 1630.00 | PK1645 | 1645.00 | PK2285 | 2285.00 |
| PK630 | 630.00 | PK910 | 910.00 | PK1165 | 1165.00 | PK1635 | 1635.00 | PK1650 | 1650.00 | PK2340 | 2340.00 |
| PK635 | 635.00 | PK915 | 915.00 | PK1170 | 1170.00 | PK1640 | 1640.00 | PK1655 | 1655.00 | PK2360 | 2360.00 |
| PK640 | 640.00 | PK920 | 920.00 | PK1175 | 1175.00 | PK1645 | 1645.00 | PK1660 | 1660.00 | PK2375 | 2375.00 |
| PK650 | 650.00 | PK925 | 925.00 | PK1180 | 1180.00 | PK1650 | 1650.00 | PK1690 | 1690.00 | PK2400 | 2400.00 |
| PK655 | 655.00 | PK930 | 930.00 | PK1185 | 1185.00 | PK1655 | 1655.00 | PK1695 | 1695.00 | PK2460 | 2460.00 |
| PK660 | 660.00 | PK935 | 935.00 | PK1190 | 1190.00 | PK1660 | 1660.00 | PK1710 | 1710.00 | PK2495 | 2495.00 |
| PK665 | 665.00 | PK940 | 940.00 | PK1195 | 1195.00 | PK1690 | 1690.00 | PK1720 | 1720.00 | PK2585 | 2585.00 |
| PK670 | 670.00 | PK945 | 945.00 | PK1215 | 1215.00 | PK1695 | 1695.00 | PK1725 | 1725.00 | PK2665 | 2665.00 |
| PK675 | 675.00 | PK950 | 950.00 | PK1220 | 1220.00 | PK1710 | 1710.00 | PK1730 | 1730.00 | PK2835 | 2835.00 |
| PK680 | 680.00 | PK955 | 955.00 | PK1225 | 1225.00 | PK1720 | 1720.00 | PK1735 | 1735.00 | PK2875 | 2875.00 |
| PK685 | 685.00 | PK960 | 960.00 | PK1230 | 1230.00 | PK1725 | 1725.00 | PK1740 | 1740.00 | PK2925 | 2925.00 |
| PK690 | 690.00 | PK965 | 965.00 | PK1235 | 1235.00 | PK1730 | 1730.00 | PK1750 | 1750.00 | PK2955 | 2955.00 |
| PK695 | 695.00 | PK970 | 970.00 | PK1240 | 1240.00 | PK1735 | 1735.00 | PK1765 | 1765.00 | PK3085 | 3085.00 |
| PK700 | 700.00 | PK975 | 975.00 | PK1255 | 1255.00 | PK1740 | 1740.00 | PK1780 | 1780.00 | PK3180 | 3180.00 |
| PK710 | 710.00 | PK980 | 980.00 | PK1270 | 1270.00 | PK1750 | 1750.00 | PK1785 | 1785.00 | PK3194 | 3194.00 |
| PK715 | 715.00 | PK985 | 985.00 | PK1290 | 1290.00 | PK1765 | 1765.00 | PK1790 | 1790.00 | PK3475 | 3475.00 |
| PK720 | 720.00 | PK990 | 990.00 | PK1300 | 1300.00 | PK1780 | 1780.00 | PK1810 | 1810.00 | PK3570 | 3570.00 |
| PK735 | 735.00 | PK995 | 995.00 | PK1310 | 1310.00 | PK1325 | 1325.00 | PK1850 | 1850.00 | PK3685 | 3685.00 |
| PK740 | 740.00 | PK1000 | 1000.00 | PK1315 | 1315.00 | PK1330 | 1330.00 | PK1860 | 1860.00 | PK4356 | 4356.00 |
| PK750 | 750.00 | PK1005 | 1005.00 | PK1320 | 1320.00 | PK1335 | 1335.00 | PK1875 | 1875.00 | PK4451 | 4451.00 |
| PK760 | 760.00 | PK1010 | 1010.00 | PK1325 | 1325.00 | PK1340 | 1340.00 | PK1880 | 1880.00 | PK4498 | 4498.00 |
| PK765 | 765.00 | PK1015 | 1015.00 | PK1330 | 1330.00 | PK1350 | 1350.00 | PK1890 | 1890.00 | PK4641 | 4641.00 |
| PK770 | 770.00 | PK1020 | 1020.00 | PK1335 | 1335.00 | PK1355 | 1355.00 | PK1900 | 1900.00 | PK4802 | 4802.00 |
| PK775 | 775.00 | PK1025 | 1025.00 | PK1340 | 1340.00 | PK1390 | 1390.00 | PK1915 | 1915.00 | PK5372 | 5372.00 |
| PK780 | 780.00 | PK1030 | 1030.00 | PK1350 | 1350.00 | PK1395 | 1395.00 | PK1920 | 1920.00 | PK5506 | 5506.00 |
| PK785 | 785.00 | PK1035 | 1035.00 | PK1355 | 1355.00 | PK1420 | 1420.00 | PK1940 | 1940.00 | PK5921 | 5921.00 |
| PK795 | 795.00 | PK1040 | 1040.00 | PK1390 | 1390.00 | PK1430 | 1430.00 | PK1950 | 1950.00 | PK6022 | 6022.00 |
| PK800 | 800.00 | PK1045 | 1045.00 | PK1395 | 1395.00 | PK1435 | 1435.00 | PK1960 | 1960.00 | PK6191 | 6191.00 |
| PK805 | 805.00 | PK1050 | 1050.00 | PK1420 | 1420.00 | PK1440 | 1440.00 | PK1995 | 1995.00 | PK6271 | 6271.00 |
| PK809 | 809.00 | PK1055 | 1055.00 | PK1430 | 1430.00 | PK1445 | 1445.00 | PK2000 | 2000.00 | PK7051 | 7051.00 |
| PK810 | 810.00 | PK1060 | 1060.00 | PK1435 | 1435.00 | PK1455 | 1455.00 | PK1015 | 1015.00 | PK7136 | 7136.00 |
| PK815 | 815.00 | | | | | | | | | | |

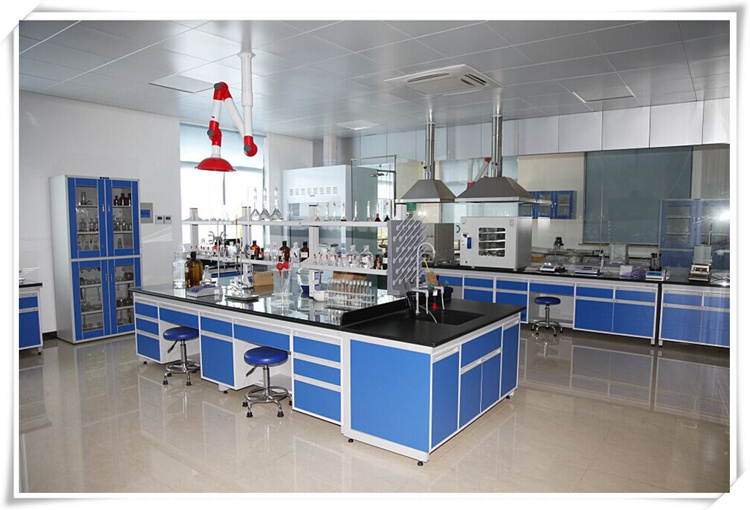

National Lab

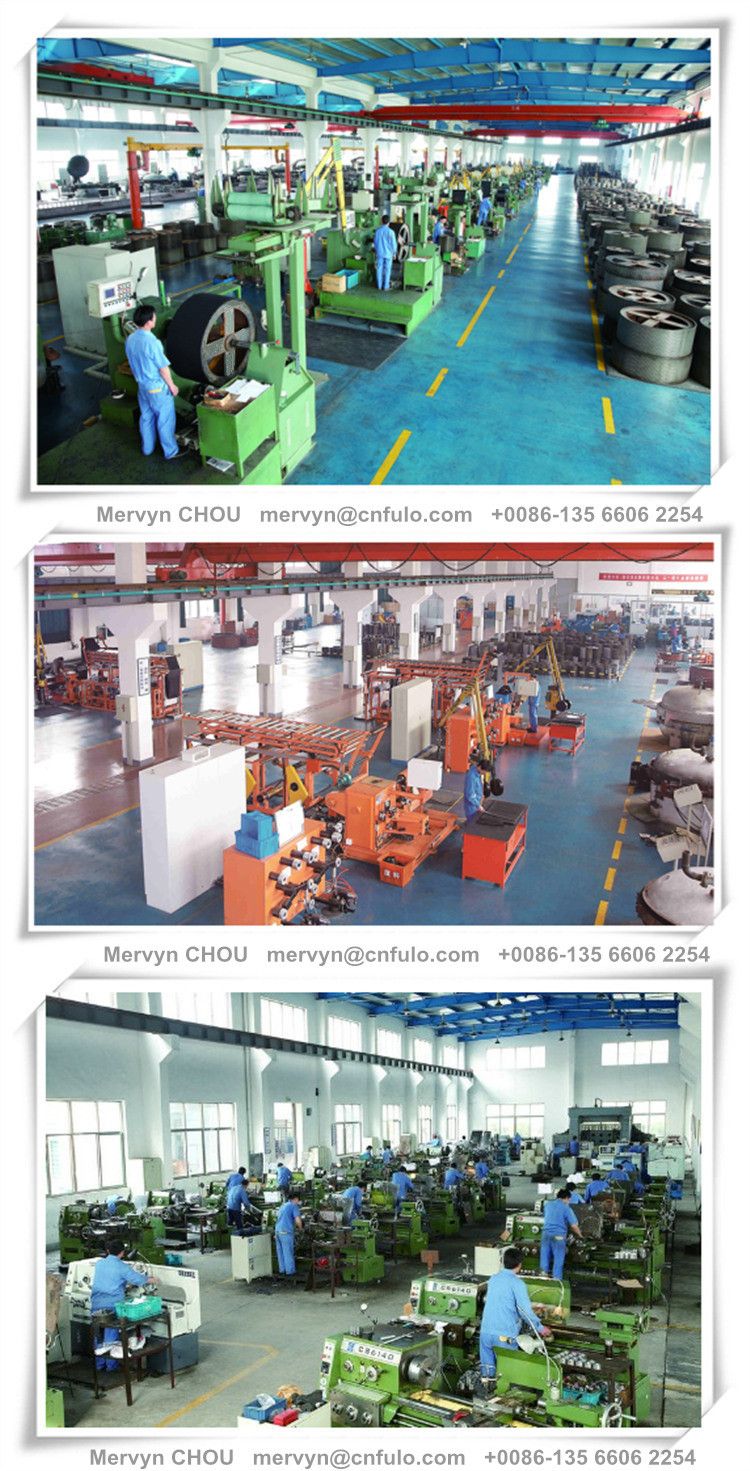

Workshop
Service and Shippment
Our company was founded in 1984. We have specialized in industrial rubber timing belts, automotive timing belts, variable-speed belts, poly-V belts,
Double-sided timing belts, cutting V-belts, flat belts and pulley with Fulong
Brand. And timing belt and pulley have passed national technical appraisal since 1987. It is currently specialized enterprise in manufacturing timing belt
Series with widest scope, most complete variety and best quality in China.
And yearly production capacity is 8 million all kinds of driving belts and 400 thousand pulley. The products are sold to 30 provinces and thousands of
Companies in domestic, and export to Southeast Asia, Middle East, America,
Japan and other regions. In order to extend our sales and open the marke,
Ningbo Fulong have opened the sales center at Shanghai (Shanghai Fulong Synchronous Belt Co., Ltd) and branched companies at Beijing & Guangzhou
City. We will use Shanghai big city visualize to meet different parts customers
The company covers an area of 45, 000 square meters and the fixed asset is RMB 120million. We have about 500 employee, included 80 technologies and 18 technical experts hired from abroad The company has advanced production equipments, some kinds of testing equipments and instruments. In recent years, we have invested 50 million RMB on a large scale of technical renovation, purchase a number of advanced production and testing equipments and all of
Our main materials are imported from abroad, in order to improve the production capacity, technical level and quality of products.
The company is the national medium-sized enterprise and wins provincial "High-tech Enterprise", "Excellent Enterprise of Technological Progress", "Spark Model Enterprise" and "Management Model Enterprise". Our measuring and archives management are Secondary to the nation, and our credit rating is AAA enterprise.
According to the customers' product technical requirements, our technologies,
On the premise to provide clients with high quality products, we have
Formed a set of perfect and controllable management system from raw materials to finished product output. In order to ensure product quality and long-term stability, we have done the follow works.
