Features:
1) Diameter: 70mm - 160mm
2) Length: 160mm - 460mm
3) Property: Carburization, quench, HRC57-64, Ra0.08-0.2
4) Materials: 20Cr, 20CrMnMo, 20CrM0A

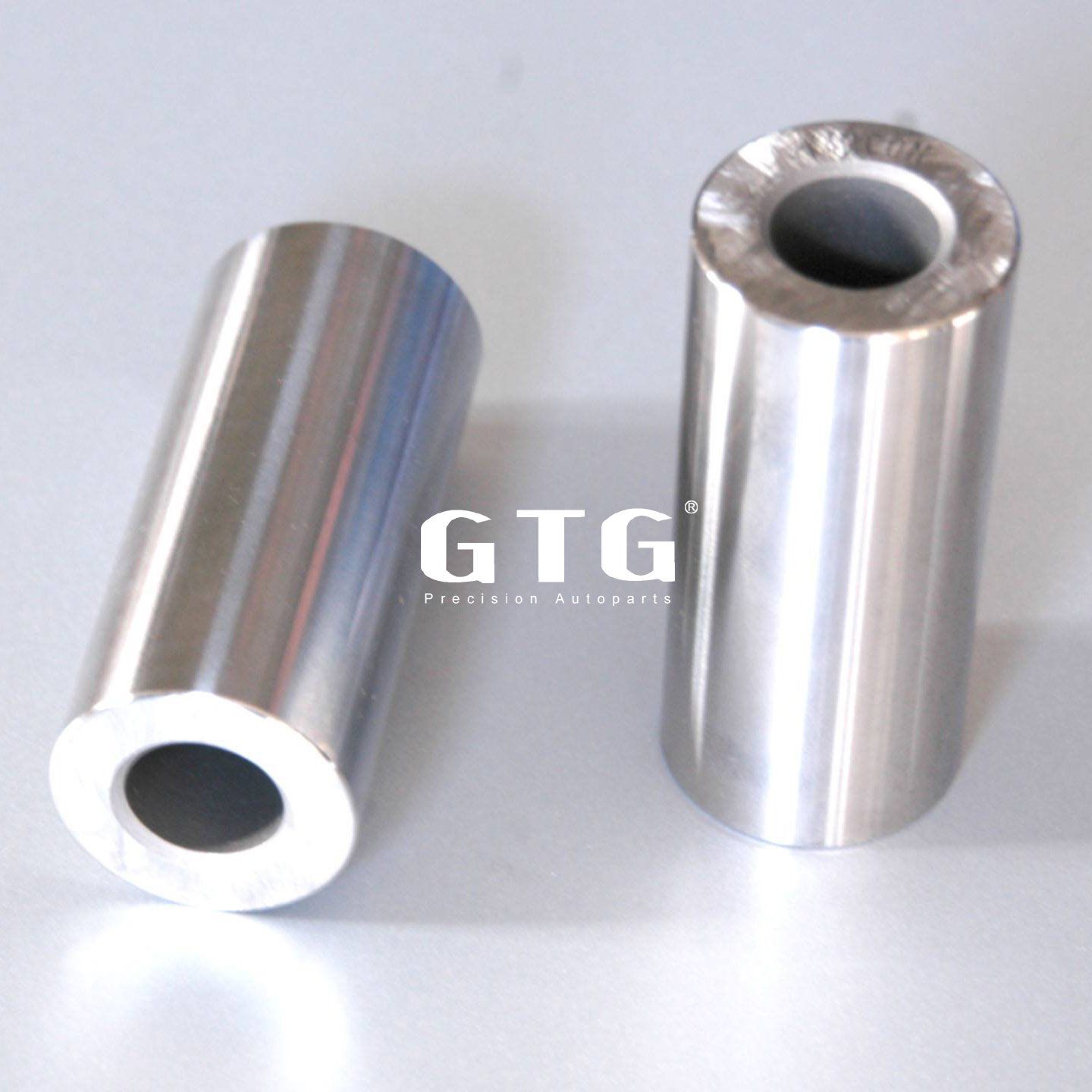

We can supply piston pin as follows:
| Item No. | Vehicle Brand | Model | Spec. | | Item No. | Vehicle Brand | Model | Spec. |
| 1 | DAIHATSU | DL/V54/F60 | φ26 | | 43 | TOYOTA | 2VZ | φ21 |
| 2 | DL-T | φ28 | 44 | 1MZFE | φ22 |
| 3 | V22H/DV57/DG-3G | φ26 | 45 | 7AFE | φ20 |
| 4 | F20 | φ20 | 46 | 4M | φ22 |
| 5 | S75/CB | φ18 | 47 | 4P | φ20 |
| 6 | CL/G30 | φ21 | 48 | 5EFE | φ18 |
| 7 | G30T/CLT | φ23 | 49 | 5E | φ18 |
| 8 | MP5/AB10 | φ20 | 50 | 2K | φ18 |
| 9 | F10/S60 | φ20 | 51 | NISSAN | A12/A0 | φ17.45 |
| 10 | L38/D36 | φ17 | 52 | A15 | φ19 |
| 11 | TOYOTA | EE80 | φ18 | 53 | CA20/CA18 | φ20 |
| 12 | 3K/5K | φ18 | 54 | CD17 | φ24 |
| 13 | 12R/1S | φ20 | 55 | LD28/LD20 | φ25 |
| 14 | 22RE | φ22 | 56 | SD22 | φ26 |
| 15 | 2Y/4Y | φ22 | 57 | SD23/SD25 | φ26 |
| 16 | 21RC | φ22 | 58 | TD25/TD27 | φ28 |
| 17 | 18R | φ22 | 59 | BD25 | φ30 |
| 18 | IN | φ23.5 | 60 | PD6 | φ46 |
| 19 | 2C NEW | φ27 | 61 | PE6/RE8/RD8 | φ46 |
| 20 | 2C/1C | φ27 | 62 | PE6T | φ46 |
| 21 | 2L NEW | φ27 | 63 | ND6/NE6/FE6 | φ36 |
| 22 | 2L | φ27 | 64 | UD3/4/5/6/8 | φ38 |
| 23 | 3L | φ29 | 65 | FE35T/FD35/ED33 | φ34 |
| 24 | B/3B | φ29 | 66 | FD6TA/B/C | φ34 |
| 25 | 3B NEW | φ32 | 67 | ED30 | φ32 |
| 26 | 3B OLD | φ32 | 68 | Z24/KA245 | φ21 |
| 27 | 1RZ | φ24 | 69 | KA24E | φ21 |
| 28 | 2RZ | φ24 | 70 | KA24DE | φ21 |
| 29 | 2D-5G/2D-4G | φ34 | 71 | H20/E23 | φ22 |
| 30 | W04D/1W | φ35 | 72 | Z22E | φ21 |
| 31 | 13B | φ34 | 73 | Z22S/VG30/VG30E | φ21 |
| 32 | 3BT/14BT | φ34 | 74 | VG30DE | φ22 |
| 33 | 1Z/R | φ32 | 75 | TB-42/P680/P40 | φ20.64 |
| 34 | 11BAD | φ34 | 76 | GA16 | φ19 |
| 35 | 2RZFE | φ24 | 77 | E16C | φ19 |
| 36 | 2F/2FT | φ25.147 | 78 | TDC10 | φ18 |
| 37 | 1HZ | φ29 | 79 | GA13 | φ19 |
| 38 | 5VZ/FE | φ22 | 80 | MA10 | φ17 |
| 39 | F/A | φ25.147 | 81 | HINO | HO7D | φ37 |
| 40 | 16R | φ22 | 82 | EH700/HO7C | φ39 |
| 41 | 3R | φ24 | 83 | EM100 | φ42 |
| 42 | 3VZE | φ21 | 84 | EB300 | φ45 |
| Item No. | Vehicle Brand | Model | Spec. | | Item No. | Vehicle Brand | Model | Spec. |
| 85 | HINO | EK100/EK200 | φ50 | | 127 | ISUZU | 4FG1 | φ37 |
| 86 | EH100 | φ34 | 128 | 4ZB1 | φ22 |
| 87 | ED100 | φ48 | 129 | C221/C220 | φ25 |
| 88 | EF350/EF750 | φ50 | 130 | 4EE1 | φ27 |
| /EF500 |
| 89 | EP100 | φ47 | 131 | 4ZC1 | φ18 |
| 90 | EL100 | φ40 | 132 | 4EC1 | φ22 |
| 91 | EB100 | φ43 | 133 | 4EC1T | φ25 |
| 92 | D3-50/D3-80 | φ40 | 134 | MITSUBISHI | 4G33 | φ19 |
| 93 | EH300 | φ35 | 135 | 4G63 | φ21 |
| 94 | DS70 | φ40 | 136 | 4G54 | φ22 |
| 95 | W04D/W06D | φ35 | 137 | 4DR5/S4E2 | φ28 |
| 96 | W06E/W06DA | φ37 | 138 | 4D55 | φ29 |
| 97 | EC100/KL400 | φ31.5 | 139 | 4D95 | φ30 |
| 98 | DQ100 | φ29 | 140 | 6DS7/6DS5 | φ32 |
| 99 | DM100 | φ29 | 141 | 4D30/4D31 | φ34 |
| 100 | ISUZU | 4FB1 | φ25 | 142 | 6D4/6D15 | φ38 |
| 101 | C190 | φ27 | 143 | 6D16 | φ38 |
| 102 | C240 | φ27 | 144 | 8DC8/8DC82 | φ45 |
| 103 | 4JB1/4JA1 | φ31 | 145 | 6D20 | φ50 |
| 104 | 4BC2 | φ35 | 146 | 6D22T/6D22 | φ50 |
| 105 | 6BD1/6BG1 | φ35 | 147 | 8DC11/8DC9 | φ50 |
| 106 | 4HF1 | φ36 | 148 | 6DC/8DC | φ45 |
| 107 | 10PB1/6SA1 | φ38 | 149 | 6DC2/8DC2 | φ45 |
| 108 | 10PC1/10PA1 | φ38 | 150 | 8DC4/8DC7 | φ45 |
| 109 | 4BC1 | φ33 | 151 | 6DSIT | φ43 |
| 110 | 4BA1 | φ33 | 152 | 6DB/DB31/DB34 | φ40 |
| 111 | DH100 | φ45 | 153 | 4D33/4D34 | φ34 |
| 112 | E120-4G | φ50 | 154 | 6D10/6D11 | φ38 |
| 113 | E120-3G | φ50 | 155 | 4D32B | φ36 |
| 114 | W120-3Gold | φ50 | 156 | 4D32/4D31/4D30 | φ34 |
| 115 | 6QA1 | φ46 | 157 | S4E3/S6F | φ32 |
| 116 | 6SD1 | φ43 | 158 | 4DR7 | φ30 |
| 117 | 10PD1 | φ43 | 159 | S4E6/S4S | φ30 |
| 118 | 6SAIT | φ38 | 160 | 6G72 | φ22 |
| 119 | DA640/DA640 | φ36 | 161 | 4DR1 | φ28 |
| -4G |
| 120 | DA640-5G | φ34 | 162 | 4G64SSA | φ22 |
| 121 | DA120-4G | φ34 | 163 | G52B | φ22 |
| 122 | 4JG2 | φ34 | 164 | 4DQ5 | φ25 |
| 123 | 4ZE1/4ZD1 | φ23 | 165 | 4G93 | φ19 |
| 124 | C223Told | φ27 | 166 | 4G62 | φ21 |
| 125 | 4ZC1 | φ22 | 167 | 4G32 | φ19 |
| 126 | C223TNEW | φ29 | 168 | 4D65 | φ25 |
| Item No. | Vehicle Brand | Model | Spec. | | Item No. | Vehicle Brand | Model | Spec. |
| 169 | MITSUBISHI | KF31 | φ24 | | 211 | HONDA | B18A1/B18B1 | φ21 |
| 170 | 2G24/4G15 | φ18 | 212 | ESA | φ20 |
| 171 | G15C | φ18 | 213 | EK/EP | φ18 |
| 172 | 2G21 | φ17 | 214 | D13/D15B | φ19 |
| 173 | MAZDA | B1 | φ19.982 | 215 | ED/EF1 | φ17 |
| 174 | TC/PB | φ20 | 216 | EV/EW | φ19 |
| 175 | E3/MA | φ20 | 217 | G400 | φ19 |
| 176 | R2 | φ25 | 218 | G150 | φ20 |
| 177 | S2 | φ28 | 219 | GX240 | φ18 |
| 178 | T3000 | φ30 | 220 | GX160 | φ18 |
| 179 | T3500 | φ34 | 221 | AUDI | 100 | φ24 |
| 180 | T4000 | φ35 | 222 | M27/M28 | φ22 |
| 181 | K2700 | φ31.75 | 223 | 80GTE | φ21 |
| 182 | B3000 | φ22 | 224 | 80 | φ22 |
| 183 | WL | φ32 | 225 | 80GL | φ22 |
| 184 | B2600 | φ23 | 226 | BMW | 535/735 | φ22 |
| 185 | 2954CC/JE39 | φ23 | 227 | 3M/E7 | φ22 |
| 186 | F8 | φ25 | 228 | 520/3161 | φ22 |
| 187 | FE/TX5 | φ22 | 229 | 520i/320i | φ22 |
| 188 | KL | φ20 | 230 | CUMMINS | NT855 | φ50.8 |
| 189 | FSY1 | φ19 | 231 | NG220-4G | φ50.8 |
| 190 | E2000 | φ22 | 232 | 6BT | φ40 |
| 191 | F605 | φ22 | 233 | 6BTAA | φ40 |
| 192 | VC/E1800 | φ22 | 234 | 6CT | φ45 |
| 193 | B6Z5 | φ22 | 235 | DAEWOO | D0846 | φ42 |
| 194 | B6/B1600 | φ20 | 236 | 4D32 | φ36 |
| 195 | PN | φ25 | 237 | DH05W | φ35 |
| 196 | CT75 | φ20 | 238 | M3 | φ18 |
| 197 | UA | φ22 | 239 | TICO | φ16 |
| 198 | B3Y6 | φ20 | 240 | KIA | K3600S/K3500 | φ34 |
| 199 | KOMATSU | S6D155 | φ60 | 241 | K2700 | φ30 |
| 200 | S6D125 | φ48 | 242 | SF | φ28 |
| 201 | 4D120/6D120 | φ44 | 243 | E4100 | φ31.75 |
| 202 | S6D110 | φ40 | 244 | E2500 | φ28 |
| 203 | S6D105 | φ40 | 245 | RF/R2 | φ25 |
| 204 | 4D105-5 | φ40 | 246 | 4EA | φ20 |
| 205 | 4D95/6D95 | φ30 | 247 | MERCEDES BENZ | OM355 | φ48 |
| 206 | S6KT | φ34 | 248 | OM360 | φ42 |
| 207 | HONDA | F18A | φ22 | 249 | OM352 | φ36 |
| 208 | F22A4/F22A1 | φ22 | 250 | M115/OM616 | φ26 |
| 209 | C25A | φ22 | 251 | M102 | φ24 |
| 210 | BS1/ES1 | φ20 | 252 | 30DE | φ22 |
| Item No. | Vehicle Brand | Model | Spec. | | Item No. | Vehicle Brand | Model | Spec. |
| 253 | MERCEDES BENZ | 200D/306D | φ26 | | 262 | DEUTZ | FL413 | φ45 |
| 254 | M115B | φ26 | 263 | 9160 | φ40 |
| 255 | PERKTNS | 31354092 | φ34.925 | 264 | FL514/614 | φ40 |
| 256 | 9135T142 | φ34.925 | 265 | DX120 | φ35 |
| 257 | MF265 | φ34.925 | 266 | DX160 | φ40 |
| 258 | 31354356 | φ35 | 267 | 511D/PM34 | φ35 |
| 259 | T6,354,4 | φ38.1 | 268 | 914D | φ35 |
| 260 | 4.236 | φ34.925 | 269 | 6L912 | φ35 |
| 261 | MT240/135 | φ31.75 | 270 | 910D | φ28 |
HangZhou XiaoShan JiangShan Auto Parts Factory is the large enterprise that Belong to Zhe Jiang Guantong Bearing Co., Ltd., specializes in R&D and manufacturing auto parts since 1997. The company locates in HangZhou city, the famous city with long history and rich culture in Zhejiang province of China.
Our main products include universal joint, king pin kits, bushing, bearing and so on. Our products are now exported to the growing world market and enjoy great reputation both abroad and home.
We have passed ISO-9001: 2000 International Quality Control System Authentication. With the powerful and experienced R&D team supported by the latest technology and advanced equipment such as all kinds of punch, friction press, inner-outer grinding lathe, NC lathe, heat-treatment mesh-belt furnace, we have developed many products that respond to the ever changing market requirements and make us hold the leading place in the same industry.
Sincerely welcome the friends worldwide cooperate and develop together!
