Name: Pipeline Camera, Pipe Camera, Sewer Inspection Camera
Brand: ibuyautoparts.com
SKU: 727246495
Availability: InStock
Rating: 5 (41 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	2/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

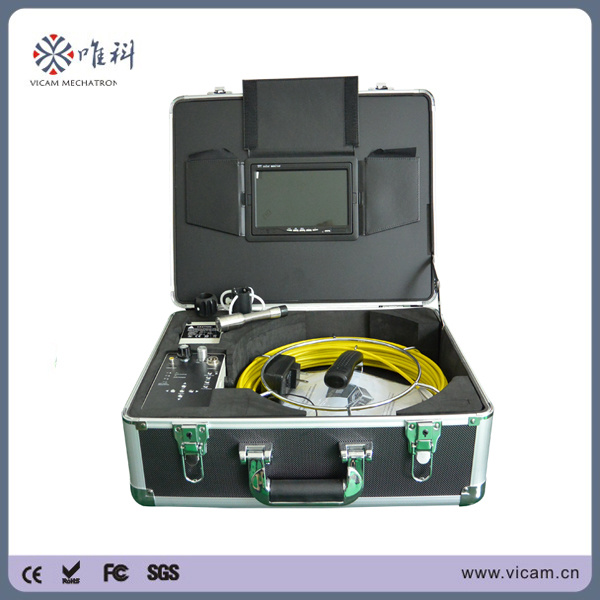

Pipeline Camera, Pipe Camera, Sewer Inspection Camera

Camera Head
* Camera head size Φ 23 x 45mm for pipe Φ 25 to 200mm
* Camera head casing material stainless steel
* Camera lens window material sapphire glass
* Sensor size 1/4 inch
* Total Pixels PAL 720X576 NTSC 720X 480
* Field of view 120°
* Camera lighting 12 pcs high intensity white LED

Monitor
*7 inch TFT LCD monitor
* Power supply DC 12V

Control Box
* 12V DVR work current 200mA /NO DVR function

Battery pack & Charger
* 4400mA Li-ion Battery pack power supply
* AC110-240V to DC12V charger
* Charging time 5 hours, working time 6 hours

Cable Reel
* Stainless steel Cable Reel size Φ 320 x 110mm
* 20m Φ 5.2mm fiberglass rod push cable (30m, 40m optional)

Carrying case
* Aluminum carrying case: 460mm X 340mm X 190mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum

Features and Benefits
* Waterproof Camera with 12 pcs high brightness LED lighting can easily check all pipes problem inside
* 7" LCD monitor give you a good quality image,
* 4400 mAh Li-ion battery support the unit working more than 5 hours
* Portable aluminum case with all parts easy to carry.

Stainless steel cmos camera head data
camera size			Φ23mm×118mm (camera head 23 X 45mm)
camera housing material			stainless steel #304L
camera window			sapphire glass
connecting type			golden pins slip-ring connection
sensor			1/4" color CMOS
field of view			120°
resolution			PAL:720H×576V NTSC: 720H×480V;
horizontal definition			420TVL
S/N rate			>48dB(AOC on)
electronic shutter			1s_1/10000s
sensitivity			0.1Lux
video output			1.0 Vp-p / 75Ω
lighting			12 high intensity white LED, brightness adjustable
waterproof			yes, class IP68
working voltage			DC 12V
working current			51mA Max (LED Max: 100mA)
operating temperature			-10ºC~60ºC

Prod Model:	V7-3188
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Type:	Drain Sewer Inspection Video Camera
Feature:	Waterproof / Weatherproof
Camera Window:	Sapphire Glass
Camera Head Size:	23 X 45mm
Field Of View:	120°
Monitor:	7 Inch TFT LCD Monitor
Li-ion Battery:	4400mA
Cable Length:	20/30/40m
Carrying Case:	460mm X 340mm X 190mm
Certification:	RoHS

Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.

Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.

Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.

We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
