Pipe Sewer Inspection Camera With DVR and Keyboard (V8-3188DK)

Name: Pipe Sewer Inspection Camera With DVR and Keyboard (V8-3188DK)
Brand: ibuyautoparts.com
SKU: 726686315
Availability: InStock
Rating: 4.4 (111 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	2/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

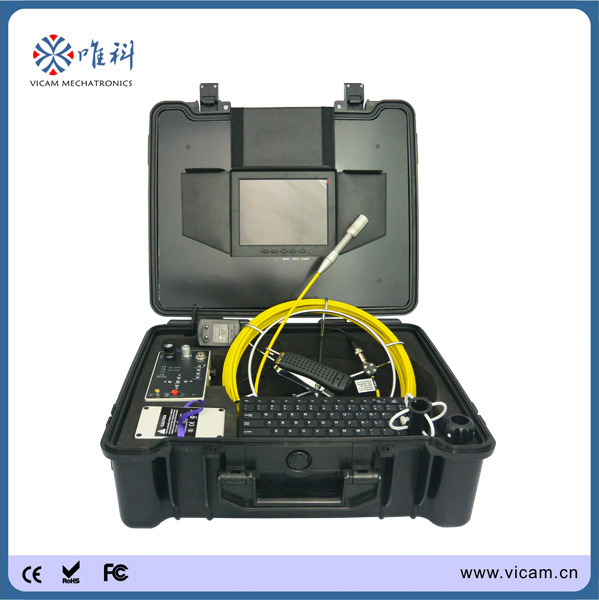

Soft Keyboard CCTV Pipe Inspection Camera of Pipe Camera Inspection System with 8 Monitor

Camera Head
* Camera head size Φ23 x 45mm for pipe Φ25 to 200mm
* Camera head housing material stainless steel
* Camera lens cover material sapphire glass
* Sensor size 1/4 inch
* Total Pixels PAL 720X576 NTSC 720X 480
* Waterproof IP68
* Field of view 120°
* Camera lighting 12 white LEDS

Monitor
*8 inch TFT LCD color monitor
* Power supply DC 12V
* OSD language: English, Up, down left, right adjustable.
* 16: 9 4: 3 model
* Sunshade included

DVR Control Box
* DVR power supply 12V DVR work current 200mA
* Storage medium SD card (8G SD card included)
* Li-ion Battery power supply (18650 x 6 pcs)
* Charging time 5 hours, working time 6 hours
* USB jack for Keyboard
* MIC on / off button and earphone output jack ( earphone bud included)

Cable Reel
* Stainless steel Cable Reel size Φ 320 x 110mm
* 20m Φ5.2mm fiberglass rod push cable (30m, 40m optional)

Carrying case
* ABS Carrying case size: 520 x 435 x 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum

Packing List

PART NO.	DESCRIPTION
1	CAMERA HEAD
2	CAMERA SKID1
3	CAMERA SKID2
4	SCREW DRIVE
5	CABLE REEL
6	TFT COLOR MONITOR
7	MONITOR SUNSHADE
8	CONTROL BOX
9	LI-ION BATTE RY PACK
10	keyboard
11	CHARGER
12	1.5M LINK CABLE
13	remote controller
14	CARRYING CASE
15	user manuaL

Prod Model:	V8-3188DK
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Monitor Size:	8" Screen Monitor
Camera Diameter:	23mm
Certification:	CE, RoHS

Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.

Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.

Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.

We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
