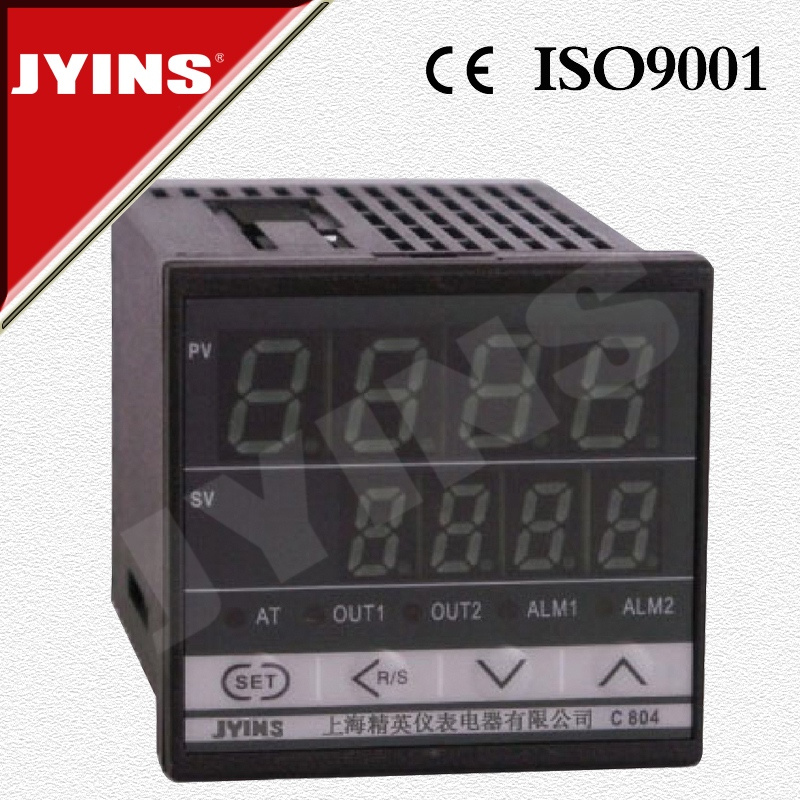

Pid Intelligent Digital Temperature Controller (JYC-804)
| Price: |
US $ 12.50/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Product model: C804 intelligent PID control
Product introduction:
LAN-C800 series intelligent temperature controller adopt multi-adjustable instrument of special microprocessor, it uses switching power supply and component mount technology(SMT) of 100-240V(AC) wide range input supply voltage, and have a mass of outline size. Compact size and reliable performance,
It has a variety of universal input function of sensor, multiple control and alarm mode. Unique artificial intelligence and expert PID control, PID auto-tuning function and self-diagnostic capabilities that make the operator obtain good results by a simple operation.
Technicial specification:
Input signal( universal input, free set software)
Thermocouple(TC): K\ J\R \S\ B\ E \N\ T
Heat resistance(RTD): PT100\Cu50
Voltage signal: 0-50mV\0-5V\1-5V
Current voltage: 0-20mA\4-20mA
Resisitande signal: 0-400Ω
Measure accuracy: ± 0.5%FS
Main control output mode
Relay, solid state relay(SCR)\
Controllable zero-crossing silicon(SCR), controllable phase-shift(SCR)
Standard volgtage signal(0-5V\1-5V)
Standard current signal(0-20mA\4-20mA)
Two road alarm output: 11 kinds alarm mode( can free set software)
Power input: AC100V-240V 50/60Hz
Outline size(high tX width X length mm)
C804 48x48x78
| Prod Model: |
JYC-804 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
18 Months |
| Certificate: |
CE ISO9001 |
| OEM: |
Accepted |
| Color: |
Black |
| Control: |
Pid Control |
| Size: |
48*48*78 |
| Output: |
1 Relay Output/ 2 Relay Output |
| Alarm: |
1 Alarm/ 2 Alarm |
| Use Area: |
Control The Temperature of Air or Water |
| Lead Time: |
Less Than One Week and According to Your Quantity |
| Material: |
Stainless Steel |
| Certification: |
CE |
