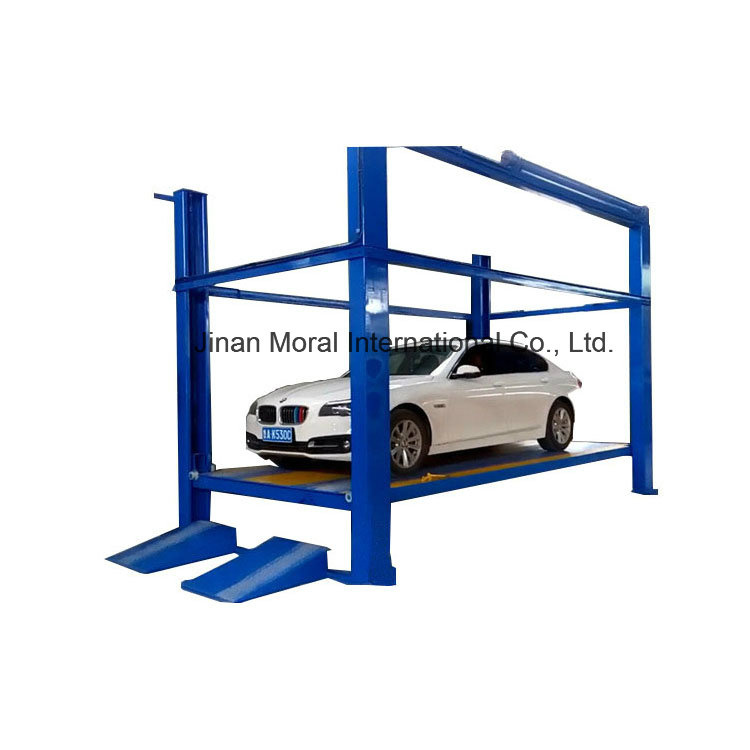

Parking Equipment Four Post Auto Lift
| Price: |
US $ 1000-10000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Parking Equipment Four Post Auto LiftThe product has reasonable structure,stability,high reliablity,durability,easy operation and maintenance.
1.This is a kind of car lift,using vertical table lift.
2.Self-standing and self-support structure.
3.Hydraulic cylinder+steel chains drive system+steel wire rope.
4.High precision and stable hydraulic drive system.
5.Automatic shut-off if operator releases the button switch.

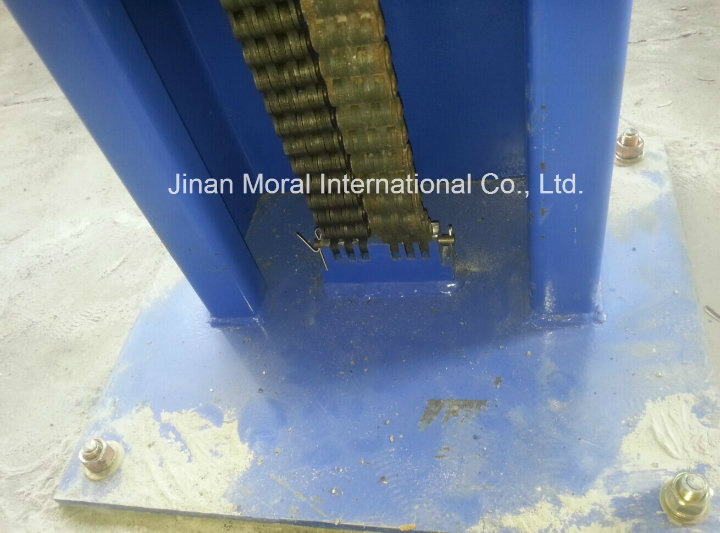

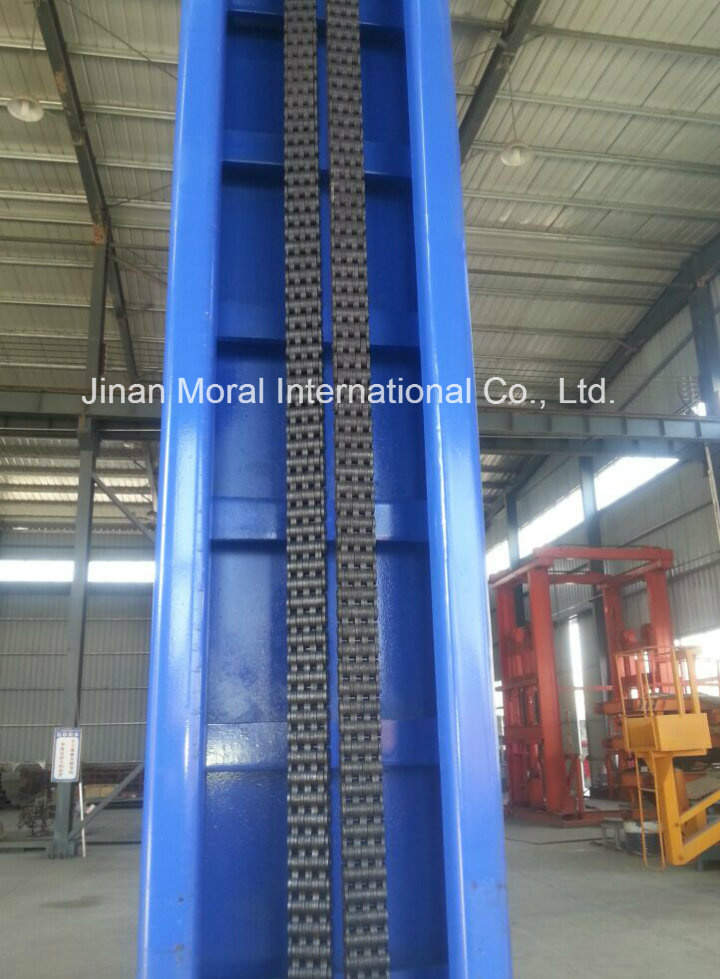

6.Double chain design for higher safety.
7.High density chains with longer service lift.
8.Remote control is optional.
9.Top quality checkered plate.
10.Hydraulic overloading protection available.
Security measures

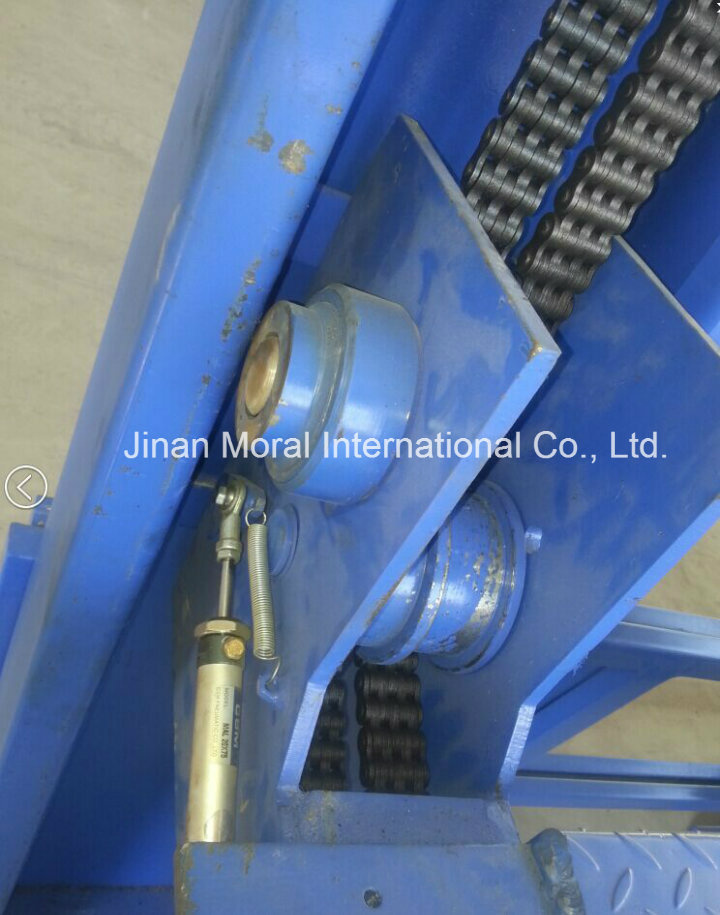

1.Falling protector.
When the platform works,falling protector can prevent suddenly falling.
2. Spillover valve built-in the the hydraulic pump
To make extra oil flow to oil tank through the valve,it is also called safety valve.
3.Wire rope
Consider on safety,when platform duo to improper operation or sudden drop,the wire rope can prevent dropping.
4.The lift is equipped with emergency decline device
Mode:manual and automatic.
Technical data:
lift weight | 3t | working voltage | 380v |
| lifting height | 1m-9.5m | control voltage | 24v |
| lifting speed | 100mm/s | pump station pressure | 20Mp |
| decline speed | 100mm/s | min height | 210mm |
| motor power | 5.5kw | |
|
Our Service:
1. User-friendly English manual for machine installation using and maintenance.
2. One year warranty for whole machine without man-made fault;
3. We will send you parts for free if there are any non-human factors problem during warranty time
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and
holiday. Engineers are available to your country if necessary.
FAQ:
1. How about the delivery time?
Within 10 working days after we receive the order
2. What kind of payments do you support?
T/T, L/C, Western Union, other kinds, pls contact with us.
3. What is the MOQ?
Generally speaking, the MOQ is 1 set, Different products have different MOQ. More quantity, better price. pls contact with us.
4. Can you produce according to customer's requirements?
Yes, of course, we are professional manufacturer, need tell us the lifting height, load capacity and platform size,
OEM we are also welcome.
5. Can you tell us your main customers?
That's our customer's privacy, we should protect their information, when you need, we ask them first, if agree, we can tell u.
At the same time, pls rest assured that your information is also safe here.
Welcome to patronize!
| Prod Model: |
SJD |
| Load Capacity: |
3000kg/customized |
| Platform Size: |
5500*2500mm/customized |
| Lifting Height: |
2m/customized |
| Power: |
5.5kw |
| Speed: |
100mm/s |
| Lead Rails: |
Q235*4 piece |
| Chain: |
levator special plate type chain |
| Control Mode: |
Raise-lower Control |
| Control Parts: |
DC 24V safety button controls |
| Warranty: |
12 months |
| Type: |
Double Cylinder Hydraulic Lift |
| Lifting Capacity: |
3T |
| Certification: |
CE |
| Design: |
Four Post |
| Brand: |
Moral |
Welcome to the on-line home of Moral lift Machinery Co., Ltd. Our factory is one of the leading manufacturer of Disabled weelchair lifts & scissor lift &parking equipment&Work platform&Horse trailer in China. Our mainly product including wheelchair lift, car parking lift, car turntable, cargo lift(VRC and scissor lift), work platform and Horse trailer etc.
With over 4 decades of experience in the manufacture of materials handling products, Morallift' S skilled team of friendly personnel can provide fast responses and technical expertise. Our product has got ISO9001: 2000 Quality Certification and has passed the test of CE Quality system as well. We always provide our customers with the best quality products, competitive prices and excellent services.
Our customers from around the world, We regard "reasonable prices, efficient production time and good after-sales service' ' As our tenet, and hope to cooperate with more customers for mutual development and benefits. We welcome every potential customer to visit our factory!
