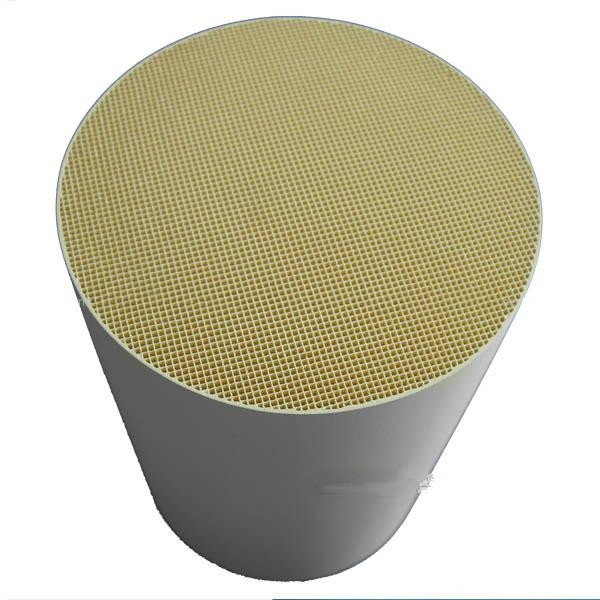

Automobile exhaust gases are conventionally purified with a catalyst supported on a ceramic body able to withstand high temperatures. The preferred catalyst support structure is a honeycomb configuration which includes a multiplicity of unobstructed parallel channels sized to permit gas flow and bounded by thin ceramic walls. The walls of these channels provide the surface for precious-metal catalysts that convert noxious emissions into carbon dioxide, nitrogen and water vapor. We can provide honeycomb ceramic substrate has been coated and non-coated precious-metal.
Ceramic Honeycomb Substrate ate made of cordierite enjoys the merits of very low thermal expansion coefficient, high specific surface area, low pressure drop, rapid light-off and unique structures which are perfect for car catalytic converter. We can supply both ceramic element coated with noble metals of PT, Pd, Rh and ceramic element without noble metals. The shape will be round, oval or racetrack with 100 cpsi, 300 cpsi, 400 cpsi or 600 cpsi cells that provide high surface for the precious metal catalysts that convert noxious emission into water vapor, carbon dioxide and so on.
Oval ceramic honeycomb susbtrate mainly size:
Below the length 170mm
Oval Ceramic Honeycomb Substrate mainly application car:
Mainly applicable to Nissan. Buick Excelle, Hongda, etc
Material: Cordierite
Cell density: 100-600 cpsi
Round, oval, racetrack
Euro II, III, IV
Customization available
Advantages:
*Low thermal expansion coefficient
*High porosity of hole on the wall, good liquidity and uniform distribution
*High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong
*The pressure drop is small.
*Cold start performance is good, low light-off temperature, high conversion efficiency
Applications:
Vehicle/motorcycle, Iron, garbage incinerator and waste gas treatment thermal equipment, chemical plants, smelters, industrial boilers, gas turbines, power plants, power engineering and heating equipment, ethylene cracking furnace etc.
|
Num |
Item |
Index |
|
CFT-02(260channel) |
CFT-03(300channel) |
CFT-04/06(400/600channel) |
|
1 |
Bulk density Kg/cm3 |
≤ 0.70 |
|
2 |
Water adsorption % |
20-27 |
|
3 |
Resistance
To normal
Atmospheric
temperature |
X(parallel to channels) |
≥ 50 |
≥ 60 |
≥ 65 |
|
Y(vertical to channels) |
≥ 160 |
≥ 180 |
≥ 200 |
|
4 |
Coefficient of thermal
expansion -1(20-800) |
≤ 1.50*10-6 |
|
5 |
Soften Temperature |
1450 |
|
6 |
Thermal stability 800 |
≥ 3 |
|
7 |
Specific surface area cm2/cm3 |
≥ 20 |
|
8 |
Chemical composition range % |
Al2O3 |
SiO2 |
MgO |
K.Na2O |
Fe2O3 |
Other |
|
31-34 |
48-51 |
12-14 |
<1 |
<0.5 |
<1 |
|
10 |
Thermal conductivity 20-100
W/m.k |
1.5-2.5 |
1.4-2.0 |
1.5-2.5 |
1.3-1.5 |
1.5-2.3 |
1.0-1.2 |
|
Shape |
Hole density (hole/in 2 ) |
Size (mm) |
Size (inch) |
|
Round |
300 CPSI |
Φ 101.6 x152.4 |
4 × 6 |
|
Round |
300 CPSI |
Φ 118.4 x100 |
4.66 × 3.94 |
|
Round |
300 CPSI |
Φ 118.4 x152.4 |
4.66 × 6 |
|
Round |
300 CPSI |
Φ 150 x100 |
5.9 × 3.94 |
|
Round |
300 CPSI |
Φ 170 x100 |
6.69 × 3.94 |
|
Round |
300 CPSI |
Φ 190 x100 |
7.48 × 3.94 |
|
Round |
300 CPSI |
Φ 210 x130 |
8.26 × 5.12 |
|
Round |
300 CPSI |
Φ 240 x76.2 |
9.45 × 3 |
|
Round |
300 CPSI |
Φ 240 x100 |
9.45 × 3.94 |
|
Oval |
300 CPSI |
Φ 120.6 x 80 x 152.4 |
4.75 × 3.15 × 6 |
|
Oval |
300 CPSI |
Φ 144.8 x 81.3 x 152.4 |
5.7 × 3.2 × 6 |
|
Oval |
300 CPSI |
Φ 169.7 x 80.8 x 115 |
6.68 × 3.18 × 4.52 |
|
Round |
400 CPSI |
Φ 150 x100 |
5.9 × 3.94 |
|
Round |
400 CPSI |
Φ 144 x 152.4 |
5.66 × 6 |
|
Round |
400 CPSI |
Φ 118.4 x 152.4 |
4.66 × 6 |
|
Round |
400 CPSI |
Φ 115.4 x 152.4 |
4.54 × 6 |
|
Round |
400 CPSI |
Φ 106 x 100 |
4.17 × 3.94 |
|
Round |
400 CPSI |
Φ 103 x 100 |
4.05 × 3.94 |
|
Round |
400 CPSI |
Φ 101.6 x 152.4 |
4 × 6 |
|
Round |
400 CPSI |
Φ 100 x 100 |
3.94 × 3.94 |
|
Round |
400 CPSI |
Φ 93 x 152.4 |
3.66 × 6 |
|
Round |
400 CPSI |
Φ 83 x 152.4 |
3.26 × 6 |
|
Round |
400 CPSI |
Φ 80 x 100 |
3.15 × 3.94 |
|
Round |
400 CPSI |
Φ 76.2 × 50 |
3 × 1.97 |
|
Round |
400 CPSI |
Φ 60 × 85 |
2.36 × 3.34 |
|
Oval |
400 CPSI |
Φ 169 x 85.7 x 115 |
6.65 x 3.37 x 4.52 |
|
Oval |
400 CPSI |
Φ 169 x 80.8 x 115 |
6.65 x 3.18 x 4.52 |
|
Oval |
400 CPSI |
Φ 148 x 84 x 152.4 |
5.82 x 3.3 x 6 |
|
Oval |
400 CPSI |
Φ 144.8 x 81.3 x 152.4 |
5.7 x 3.2 x 6 |
|
Oval |
400 CPSI |
Φ 127 x 63.5 x 152.4 |
5 x 2.5 x 6 |
|
Oval |
400 CPSI |
Φ 93 x 61 x 90 |
3.66 x2.4 x 3.54 |
|
Oval |
400 CPSI |
Φ 120.6 x 80 x 152.4 |
4.75 x 3.15 x6 |
|
Oval |
400 CPSI |
Φ 143 x 98 x 152.4 |
5.63 x 3.86 x 6 |
|
Oval |
400 CPSI |
Φ 147 x 95 x 152.4 |
5.78 x 3.74 x 6 |
|
Oval |
400 CPSI |
Φ 177.8 x 114.3 x 170 |
7 x 4.5 x 6.7 |
