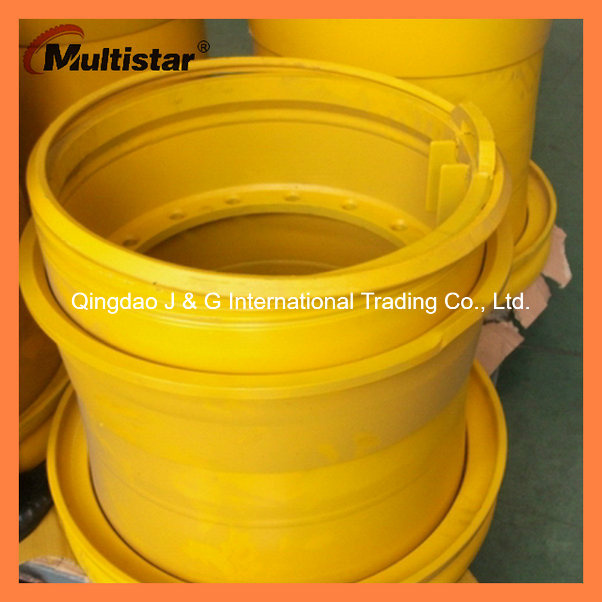

Rim size: 25-25.00/3.5
Rim design type: 5-pc type (2 flange + 1 side ring + 1 lock ring + 1 rim base)
Fitted tyre: 29.5R25
Valve hole type: both tube and tubeless are available.
Bolt Hole no. and dia. : A wide range
PCD: A wide range
Center Hole Dia.: A wide range
Offset: A wide range
Disc thickness: A wide range
Aplication: Earthmover/Construction equipment (Large Dump Trucks, Graders & Wheel Loaders, Dozers, Trucks & Load Haul Dumps, Tire Rollers & Finishers)
Relative rim diameters are also available: 20'' 21'' 22'' 23'' 24'' 27", 29", 33", 35", 45'', 49'', 51", 57'', 63"
| Diameter | Type | Description | Tyres |
| 15" | Multipieces | 15-9.75/1.37 | 12.00-15 |
| 15-11.00/1.5 | 14.5-15 |
| 15-11.50/1.5 | |
| 16" | Multipieces | 16-8.00/0.83 | 11L-16 |
| 16.5 | Multipieces | 16.5-8.25/0.5 | 10-16.5 |
| 16.5-9.75/0.5 | 12-16.5NHS |
| 17.5" | Multipieces | 17.5-10.50/0.5 | 14-17NHS |
| 18" | Multipieces | 18-9.00/1.0 | 12.5/80-18 |
| 20" | Multipieces | 20-7.50/1.7 | 10.00-20 |
| 20-8.0/1.7 | 11.00-20 |
| 20-8.0/2.0 | 12.00-20 |
| 20-8.50/1.7 | 12.00-20 |
| 20-9.00/1.7 | 13.00-20 |
| 20-10.00/1.7 | 14.00-20 14.00R20 365/80-20 |
| 20-10.00/2.0 | 14.00-20 14.00R20 |
| 20-11.00/1.6 | 12.5-20 |
| 20-12.00/2.0 | 15.5-20 16.00-20 |
| 20-13.00/1.0 | 16/17-20 |
| 20-14.00/2.0 | 17.5-20 |
| 20-15.00/1.0 | 500/70-508 |
| 20-15.00/1.7 | 18L-20 |
| 20-15.30/2.0 | 500/70-508 |
| 21" | Multipieces | 21-11.25/2.0 | 16.00-21 |
| 21-17.00/2.0 | 20.00-21 1300X530-533 |
| 21-18.00/1.5 | 24.00R21 24.00-21 |
| 21-18.00/1.7 | 24.00R21 24.00-21 |
| 22" | Multipieces | 22-17.00/2.0 | |
| 23" | Multipieces | 23-11.00/1.5 | 14.00-23 |
| 23-18.00/2.0 | 24.00-23 |
| 24" | Multipieces | 24-8.00/1.7 | 13.00-24 |
| 24-8.50/1.7 | 12.00-24 |
| 24-10.00/1.7 | 14.00-24 |
| 24-10.00/2.0 | 14.00-24 |
| 24-10.00VA | 14.00-24 16.00-24TG |
| 24-11.25/2.0 | 16.00-24 |
| 24-15.00/1.0 | 17.5-24 |
| 24-16.00/1.1 | 19.5-24 |
| 24-16.00/1.7 | 54*21-24 |
| 25" | Multipieces | 25-8.50/1.3 | 13.00-25 |
| 25-9.50/1.7 | 14.00R25 |
| 25-10.00/1.5 | 14.00-25 14.00R25 |
| 25-11.00/1.7 | 16.00-25 |
| 25-11.25/2.0 | 16.00-25 |
| 25-12.00/1.3 | 15.5-25 |
| 25-13.00/2.5 | 18.00-25 |
| 25-14.00/1.5 | 17.5-25 |
| 25-14.00/2.0 | 17.5-25 |
| 25-15.00/3.0 | 21.00-25 |
| 25-17.00/1.7 | 20.5-25 |
| 25-17.00/2.0 | 20.5-25 |
| 25-19.50/2.5 | 23.5-25 |
| 25-22.00/1.84 | 26.5-25 |
| 25-22.00/3.0 | 26.5-25 |
| 25-24.00/2.5 | 29.5-25 |
| 25-24.00/3.0 | 29.5-25 |
| 25-25.00/3.5 | 26.5-25 |
| 25-36.00/1.5 | 24.00R35 |
| 26" | Multipieces | 26-16.00/1.1 | 18.4-26 |
| 26-20.00/1.1 | 23.1-26 |
| 27" | Multipieces | 27-21.50/2.4 | 57X25-27/50 |
| 27-23.50/2.5 | 57X25-27/50 |
| 27-24.50/2.4 | 26.00-27 |
| 28" | Multipieces | 28-15.00/1.0 | 16.9-28 |
| 29" | Multipieces | 29-17.00/3.5 | 24.00-29 |
| 29-24.00/3.0 | 776/65R29 775/65R29 |
| 29-24.00/3.5 | 776/65R29 775/65R29 |
| 29-25.00/3.5 | 29.5R29 |
| 29-27.00/3.5 | 33.25R29 |
| 33" | Multipieces | 33-13.00/2.5 | 18.00-33 |
| 33-26.00/1.14 | |
| 33-28.00/3.5 | 33.5R33 36/65R33 |
| 33-32.00/4.5 | 37.5 R 33 |
| 34" | Multipieces | 34-14.00/1.3 | |
| 34-16.00/1.3 | 53X18-34 |
| 35" | Multipieces | 35-15.00/3.0 | 21.00-35 |
| 35-17.00/3.5 | 24.00-35 |
| 35-22.00/3.5 | SOLID TYRE |
| 45" | Multipieces | 45-36.00/4.5 | 45/65R45 |
| 49" | Multipieces | 49-17.00/3.5 | 24.00-49 |
| 49-19.50/4.0 | 27.00-49 |
| 51" | Multipieces | 51-22.00/3.0 | SOLID TYRE |
| 51-28.00/4.5 | SOLID TYRE |
| 57" | Multipieces | 57-29.00/6.0 | 40.00R57 46/90R57 |
| 63" | Multipieces | 63-36.00/5.0 | 53/80R63 |
| 63-41.00/5.0 | 55/80-63 |
| 63-44.00/5.0 | 58/80-63 |
We can supply all kinds of steel wheel rims for many models which you can see below.
More information about us:
With presence in over 70 countries across 6 continents, Qingdao J&G International Trading Co., Ltd has fastly grown up an One-stop professional supplier of a wide range of tires & wheels, and axles in China. We are to deliver superior value to our customers through focus on products, innovation, technology and cost efficient manufacturing and distribution practices.
The main component of Qingdao J&G's business is to supply the Mulitstar brand tires & wheels, and axles for the global "OEM" and aftermarkets, particularly for the farming applications, comerical vehicles, construction & earthmover equipments. Meanwhile, we are also supply a full specifications of steel wheels for mining, port handlings, Off-the-Road construction equipments. As well Alloy truck wheels are also available by us.

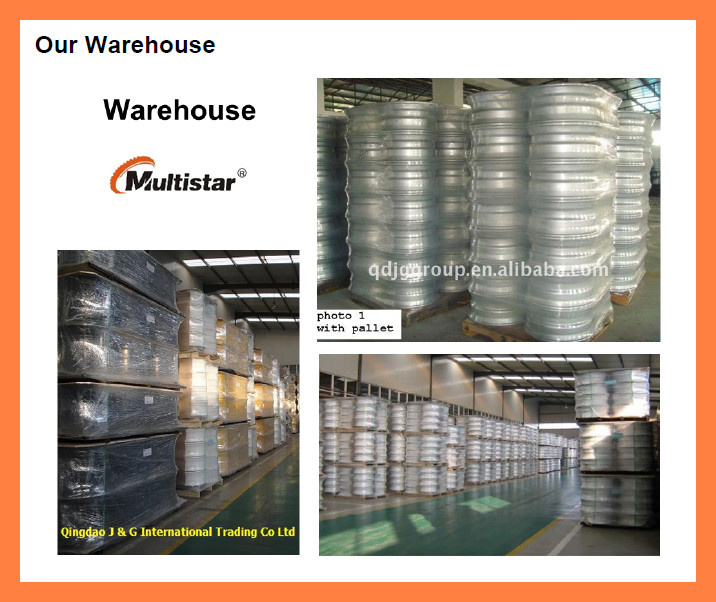

We have a well stocked warehouse in the Harbor of Qingdao now. A new bigger warehouse owned us is under construction, which is more than 2, 000 square meters. We can not only meet the demands of prompt shipment but also meet the demand of wheel assembly of tyres and rims for "OE" manufactures for the domestic and overseas markets.
Our extensive inventory of over 3000 units of complete wheel assemblies, and various range of tyres and rims, and also inner tubes and valves, clearly separaters them from our competition.
