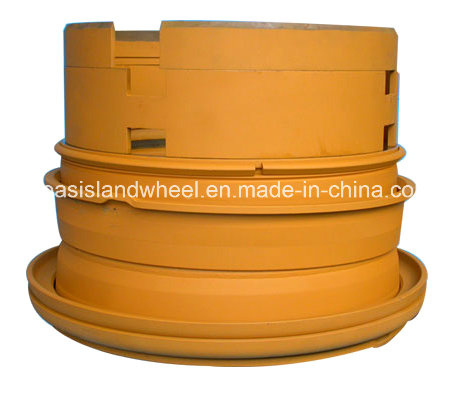

OTR Wheel Rim 25-22.00/3.0 for Mining
Specification: | Wheel Size | Recommend Tire Size | Specification (mm) | Weight (KGS) | Spare Parts NO. |
| A | B | C | D | E | F | G | H | Rim | Side Ring | Bead Seat Ring | Lock Ring |
| 25×13.00/2.5 | 18.00-25 | 330.2 | 635.0 | 63.5 | 574.6 | 211.4 | 82.7 | 546.0 | 27.0 | 178.0 | HY2513002505EM | SR2525 | BS25EML01 | LR25EM |
| 25×15.00/3.0 | 21.00-25 | 381.0 | 635.0 | 76.2 | 574.6 | 236.5 | 82.7 | 546.0 | 27.0 | 195.0 | HY2515003006EM | SR3025 | BS25EML01 | LR25EM |
| 25×22.00/3.0 | 26.5-25 | 558.8 | 635.0 | 76.2 | 574.6 | 328.6 | 82.7 | 546.0 | 27.0 | 223.0 | HY2522003005EM | SR3025 | BS25EML01 | LR25EM |
We can supply kinds of OTR Wheel rims from 15" to 63", including 3-piece tye and 5-piece type.
Application:
Earthmover
Loader
Port Equipment
Handling equipment
Grader
Under-Mining Equipment
We also can make according to your request, you can tell us your Moldel of equipment, and Specification of rims you need. We will design for you
Hope we will have a nice cooperation soon!
More sizes:
| Rim Dia.(In) | Wheel Size |
| 25 | 25×10.00/1.5 |
| 25×11.25/2.0 |
| 25×13.00/2.5 |
| 25×14.00/1.5 |
| 25×15.00/3.0 |
| 25×17.00/2.0 |
| 25×19.50/2.5 |
| 25×22.00/3.0 |
| 25×25.00/3.5 |
| 25×24.00/3.0 |
| 29 | 29×17.00/3.5 |
| 29×22.00/3.0 |
| 29×24.00/3.0 |
| 29×24.00/3.5 |
| 29×25.00/3.5 |
| 33 | 33×13.00/2.5 |
| 33×17.00/3.5 |
| 33×28.00/3.5 |
| 33×28.00/4.0 |
| 33×22.00/4.0 |
| 33×32.00/4.5 |
| 35 | 35×15.00/3.0 |
| 35×17.00/3.5 |
| 35×27.00/3.5 |
| 35×31.00/4.0 |
| 35×27.00/3.5 |
| 35×31.00/4.0 |
| 39 | 39×28.00/4.0 |
| 39×32.00/4.0 |
| 39×32.00/4.5 |
| 39×28.00/4.0 |
| 39×32.00/4.0 |
| 39×32.00/4.5 |
| 45 | 45×36.00/4.5 |
| 45×36.00/4.5 |
| 49 | 49×15.00/3.0 |
| 49×17.00/3.5 |
| 49×19.50/4.0 |
| 49×22.00/3.5 |
| 49×17.00/3.5 |
| 49×19.50/4.0 |
| 51 | 51×22.00/4.5 |
| 51×24.00/5.0 |
| 51×26.00/5.0 |
| 51×40.00/4.5 |
| 57 | 57×27.00/6.0 |
| 57×29.00/6.0 |
| 57×32.00/5.0 |
| 57×32.00/6.0 |
| 57×32.00/6.5 |
| 57×34.00/6.0 |
| 57×36.00/6.0 |
| 57×44.00/5.0 |
| 57×44.00/6.0 |
| 57×47.00/5.0 |
| 57×47.00/6.0 |
All sizes of OTR Wheel
| Wheel Diameter | Wheel size | Fitted Tyre |
| 15" | 9.75-15 | 355/50-15 |
| 16.4" | 16.5x8.25 | 10-16.5, 10R16.5 |
| 16.5x9.75 | 12-16.5NHS |
| 17.5" | 10.5x17.5 | 14-17.5 NHS-14PRTL,14R17.5 |
| 20" | 20-7.50/1.7 | 10.00-20, 10.00R20 |
| 20-7.50/2.0 | 10.00-20, 10.00R20 |
| 20-8.0/1.7 | 11.00-20, 11.00R20 |
| 20-8.0/2.0 | 12.00-20, 12.00R20 |
| 20-8.50/1.7 | 12.00-20, 12.00R20 |
| 20-8.50/2.0 | 12.00-20, 12.00R20 |
| 20-9.00/1.7 | 13.00-20, 13.00R20 |
| 20-10.00/1.7 | 14.00-20, 14.00R20, 365/80-20 |
| 20-10.00/2.0 | 14.00-20, 14.00R20 |
| 20-11.00/1.67 | 12.5-20, 12.5R20 |
| 20-11.00/1.7 | 12.5-20, 12.5R20 |
| 20-12.00/2.0 | 15.5-20 16.00-20, .16.00R20 |
| 20-13.00/1.0 | 16/17-20, 16/17R20 |
| 20-13.00/1.5 | 16/17-20, 16/17R20 |
| 20-13.00/1.7 | 16/17-20, 16/17R20 |
| 20-14.00/1.67 | 17.5-20, 17.5R20 |
| 20-14.00/2.0 | 17.5-20, 17.5R20 |
| 20-15.00/1.0 | 500/70-508, |
| 20-15.00/1.7 | 18L-20 |
| 20-15.30/2.0 | 500/70-508 |
| 21" | 21-11.25/2.0 | 16.00-21, 16.00R21 |
| 21-17.00/1.5 | 20.00R21, 1300X530-533 |
| 21-17.00/2.0 | 20.00R21, 1300X530-533 |
| 21-18.00/1.5 | 24.00R21, 24.00-21 |
| 21-18.00/1.7 | 24.00R21, 24.00-21 |
| 22" | 22-17.00/2.0 | 26.00R21, 26.00-21 |
| 23" | 23-9.25/1.75 | 12.00-23, 12.00R23 |
| 23-11.00/1.5 | 14.00-23, 14.00R23 |
| 23-18.00/2.0 | 24.00-23, 24.00R23 |
| 24" | 24-8.00/1.7 | 12.00-24, 12.00R24 |
| 24-8.50/1.7 | 12.00-24, 12.00R24 |
| 24-10.00/1.7 | 14.00-24, 14.00R24 |
| 24-10.00/2.0 | 14.00-24, 12.00R24 |
| 24-11.25/2.0 | 16.00-24, 16.00R24 |
| 24-15.00/2.0 | 17.5-24, 17.5R24 |
| 24-16.00/1.1 | 19.5-24, 19.5R24 |
| 24-16.00/1.7 | 54x21-24, 19.5R24 |
| 24-16.00/2.0 | 54x21-24, 19.5R24 |
| 25" | 25-8.50/1.3 | 13.00-25, 13.00R25 |
| 25-8.50/1.5 | 13.00-25, 13.00R25 |
| 25-9.50/1.7 | 14.00-25, 14.00R25 |
| 25-10.00/1.5 | 14.00-25, 14.00R25 |
| 25-10.00/1.7 | 14.00-25, 14.00R25, 395/95R25 |
| 25-11.00/1.7 | 16.00-25, 16.00R25 |
| 25-11.25/2.0 | 16.00-25, 16.00R25 |
| 25-12.00/1.3 | 15.5-25, 15.5R25 |
| 25-12.00/1.5 | 15.5-25, 15.5R25 |
| 25-13.00/2.5 | 18.00-25, 18.00R25 |
| 25-14.00/1.5 | 17.5-25, 17.5R25 |
| 25-14.00/2.0 | 17.5-25, 17.5R25 |
| 25-15.00/3.0 | 21.00-25, 21.00R25 |
| 25-17.00/1.7 | 20.5-25, 20.5R25 |
| 25-17.00/2.0 | 20.5-25, 20.5R25 |
| 25-19.50/2.5 | 23.5-25, 23.5R25 |
| 25-22.00/1.84 | 26.5-25, 26.5R25 |
| 25-22.00/3.0 | 26.5-25, 26.5R25, 750/65R25 |
| 25-24.00/2.5 | 30/65-25 |
| 25-24.00/3.0 | 30/65-25 |
| 25-25.00/3.5 | 29.5-25, 29.5R25 |
| 25-27.00/3.5 | 29.5R25, 875/65R29 |
| 25-28.00/3.5 | 29.5R25, 875/65R29 |
| 25-30.00/1.5 | 67x34.00-25 |
| 25-36.00/1.5 | 24.00R35, 66x44.00-25 |
| 26" | 26-16.00/1.1 | 18.4-26, 18.4R26 |
| 26-20.00/1.1 | 23.1-26, 23.1R26 |
| 27" | 27-21.50/2.4 | 57x25-27/50 |
| 27-23.50/2.5 | 57x25-27/50 |
| 27-24.50/2.4 | 26.00-27, 26.00R27 |
| 28" | 28-15.00/1.0 | 16.9-28, 16.9R28 |
| 29" | 29-17.00/3.5 | 24.00-29, 25.00R29 |
| 29-24.00/3.0 | 776/65R29,775/65R29 |
| 29-24.00/3.5 | 776/65R29,775/65R29 |
| 29-25.00/3.5 | 29.5R29 |
| 29-27.00/3.5 | 33.25R29 |
| 33" | 33-13.00/2.5 | 18.00-33, 18.00R33 |
| 33-15.00/3.0 | 21.00R33 |
| 33-22.00/3.5 | 35/65-33 |
| 33-26.00/1.14 | 36/65R33 |
| 33-28.00/3.5 | 33.5R33,35/65-33 |
| 33-32.00/4.5 | 37.5R33 |
| 34" | 34-14.00/1.3 | 53x18-34, 53x18R34 |
| 34-16.00/1.3 | 53x18-34, 53x18R34 |
| 34-16.00/1.5 | 53x18-34, 53x18R34 |
| 35" | 35-15.00/3.0 | 21.00-35, 21.00R35, |
| 35-17.00/3.5 | 24.00-35, 24.00R35, |
| 35-22.00/3.5 | 29.5-35, 29.5R35, |
| 35-25.00/3.5 | 29.5-35, 29.5R35, |
| 35-27.00/3.5 | 33.25-35,33.25R35, |
| 35-31.00/3.5 | 37.25-35, 37.25R35 |
| 39" | 39-28.00/4.0 | 33.5-39, 33.5R39 |
| 39-31.00/4.0 | 37.25R35 |
| 39-32.00/4.0 | 37.5R39, 40.5/75R39 |
| 45" | 45-36.00/4.5 | 45/65-45, 45/65R45 |
| 45X36.00/4.5 | 45/65-45, 45/65R45 |
| 49" | 49-15.00/3.0 | 21-49, 21R49 |
| 49-17.00/3.5 | 24.00-49, 24.00R49 |
| 49-19.50/4.0 | 27.00-49, 27.00R49 |
| 49-22.00/3.5 | 31/80-49, 31/80R49 |
| 49-22.00/4.0 | 31/80-49, 31/80R49 |
| 51" | 51-19.50/4.0 | 30.00R51, 30.00-51 |
| 51-22.00/3.0 | 30.00-51, 30.00R51 |
| 51-24.00/5.0 | 33.00-51, 33.00R51 |
| 51-26.00/5.0 | 36.00-51, 36.00R51 |
| 51-28.00/3.0 | 36.00-51, 36.00R51 |
| 51-28.00/4.5 | 36.00-51, 36.00R51 |
| 51-40.00/4.5 | 50/60-51, 50/60R51 |
| 57" | 57-27.00/6.0 | 37.00R57, 42/90R57 |
| 57-29.00/6.0 | 40.00R57, 46/90R57 |
| 57-32.00/5.0 | 46/90R57, 40.00R57 |
| 57-32.00/6.0 | 46/90R57, 40.00R57 |
| 57-34.00/6.0 | 50/90-57, 50/90R57 |
| 57-36.00/6.0 | 50/80-57, 50/80R57 |
| 57-44.00/5.0 | 55/80-57, 55/80R57 |
| 57-44.00/6.0 | 55/80-57, 55/80R57 |
| 57-47.00/5.0 | 55/80-57, 55/80R57 |
| 57-47.00/6.0 | 60/85-57, 60/85R57 |
| 63" | 63-36.00/5.0 | 53/80R63 |
| 63-41.00/5.0 | 55/80-63, 59/80R63 |
| 63-44.00/5.0 | 58/80-63, 59/80R63 |
Oasisland International is one of the fast-growing tyre and wheel rim supplier in China specializing in the agricultural, trailer, construction, material handling, industrial, mining and other specials
All products we supply will be with quality and guarantee...
For the tyres we supply will be with certificates, such as CCC, DOT, ECE, GCC, SONCAP for different market.
For the Wheels, it will be engineering standards of the TRA and the ETRTO, as well as the testing standards established by SAE and EUWA. Further more, for some special market, our wheels will manufacture according to the local standard, such as Australia. That will guarantee all wheels can suit for different request of different markets.
Now we already provide some products to OEM client in some markets. We do sure our OEM market will be larger after testing our quality products. However we are small now, we will grow to be larger and stronger soon basic on our clients' support.
